PANASONICDatasheet (PDF)

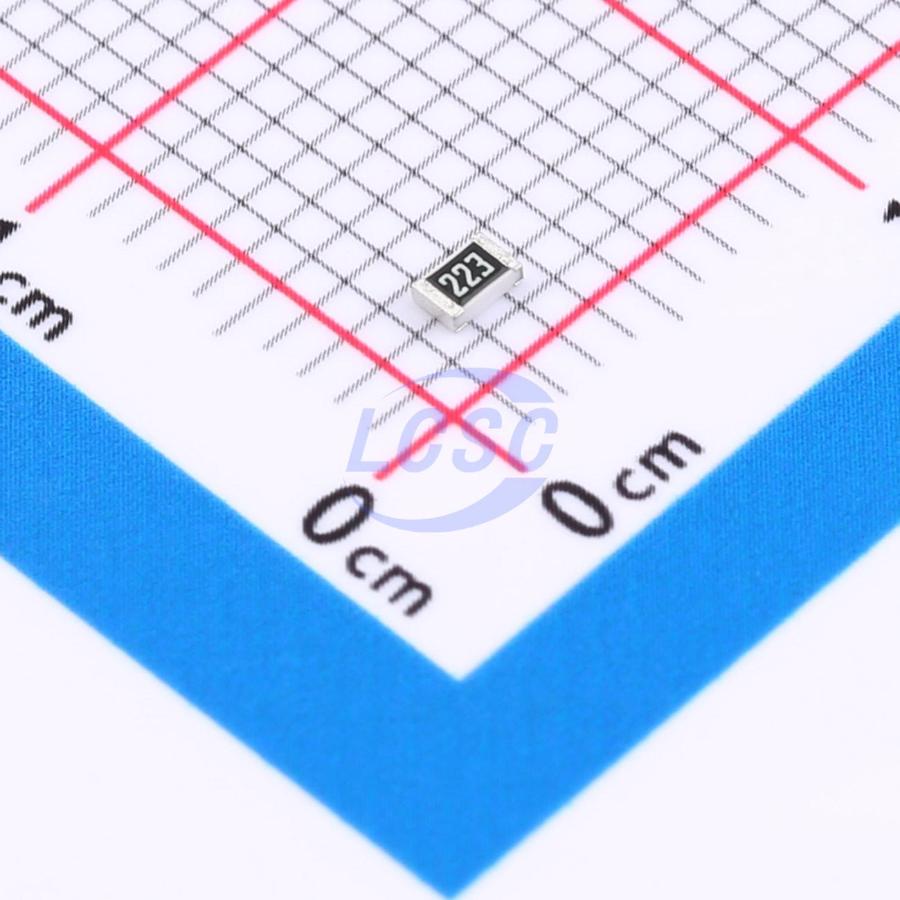

ERA6AEB223V
22kΩ ±0.1% 125mW 0805 Thin Film Resistor AEC-Q200
0805ROHS3 CompliantActive
RES 22kΩ ±0.1% 125mW 0805
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERA6AEB223V
- Store part #
- C445659
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,060 in stock
#C445659
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.79 | ₹58.95 |
| 50+ | ₹9.43 | ₹471.50 |
| 150+ | ₹8.24 | ₹1,236.00 |
| 500+ | ₹7.36 | ₹3,680.00 |
| 2,500+ | ₹6.65 | ₹16,625.00 |
| 5,000+ | ₹6.30 | ₹31,500.00 |
5 × ₹11.79
₹58.95
excl. GST
₹69.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERA6AEB223V
₹58.95 for 5 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 22kΩ
- Voltage Rating
- 100V
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Tolerance
- ±0.1%
- Temperature Coefficient
- ±25ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Key features
- High reliability: stable performance in high-temperature and high-humidity environments (85°C, 65% RH rated load, operating temperature range: -55°C ~ +155°C)
- High accuracy: low resistance tolerance and TCR
- High performance: low current noise, excellent linearity
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2133C
- AEC-Q200 compliant (except ERA1A)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| ERA-6ARB223V#C2075889PANASONIC · 0805 | PANASONIC | 0805 | On request | Price on request | Quote | |
 | AR05BTCW2202A010#C374693Viking · 0805 | Viking | 0805 | 1,930 | ₹5.90 · 1,930 in stock | View |
| TNPW080522K0BEEA#C4238160VISHAY · 0805 | VISHAY | 0805 | 111 | ₹107.11 · 111 in stock | View | |
 | RT0805BRD0722KL#C865312YAGEO · 0805 | YAGEO | 0805 | 27,240 | ₹5.61 · 27,240 in stock | View |
 | PTFR0805B22K0P9#C479095RESI · 0805 | RESI | 0805 | 13,925 | ₹20.35 · 13,925 in stock | View |
