PANASONICDatasheet (PDF)

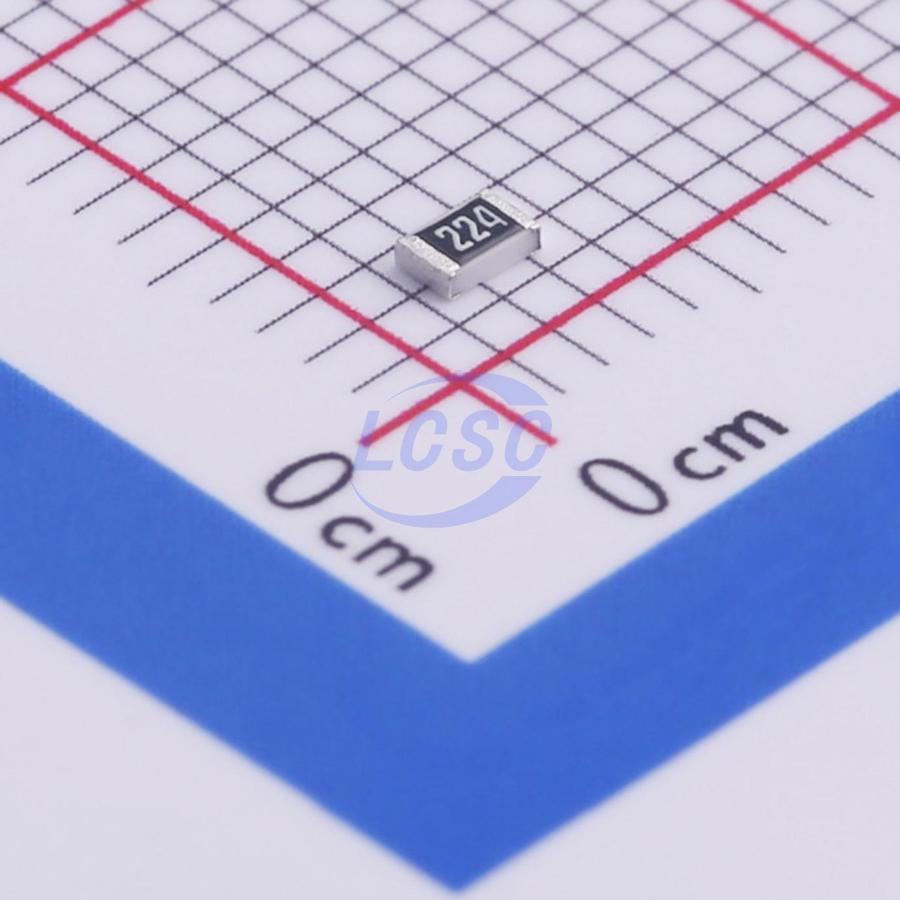

ERA6AEB224V
220kΩ ±0.1% 125mW 0805 Thin Film Resistor AEC-Q200
0805ROHS3 CompliantActive
RES 220kΩ ±0.1% 125mW 0805
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERA6AEB224V
- Store part #
- C445664
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,875 in stock
#C445664
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.94 | ₹69.70 |
| 50+ | ₹11.06 | ₹553.00 |
| 150+ | ₹9.62 | ₹1,443.00 |
| 500+ | ₹8.55 | ₹4,275.00 |
| 2,500+ | ₹7.38 | ₹18,450.00 |
| 5,000+ | ₹6.95 | ₹34,750.00 |
5 × ₹13.94
₹69.70
excl. GST
₹82.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERA6AEB224V
₹69.70 for 5 + GST
Specifications
- Resistance
- 220kΩ
- Power(Watts)
- 125mW
- Voltage Rating
- 100V
- Type
- Thin Film Resistor
- Tolerance
- ±0.1%
- Temperature Coefficient
- ±25ppm/℃
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Key features
- High reliability: stable performance in high-temperature and high-humidity environments (85°C, 65% RH rated load, operating temperature range: -55°C ~ +155°C)
- High accuracy: low resistance tolerance and TCR
- High performance: low current noise, excellent linearity
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2133C
- AEC-Q200 compliant (except ERA1A)
- RoHS compliant
