PANASONICDatasheet (PDF)
ERA6AEB331V

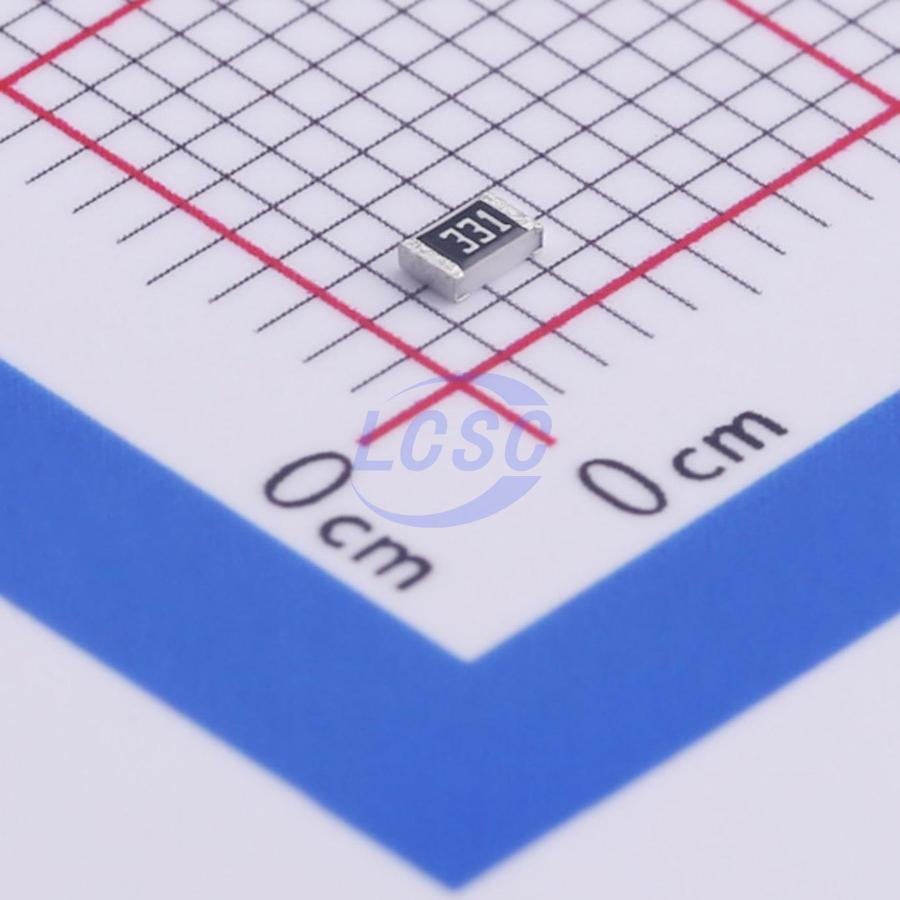

330Ω ±0.1% 125mW 0805 Thin Film Resistor AEC-Q200
0805ROHS3 CompliantActive
RES 330Ω ±0.1% 125mW 0805
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERA6AEB331V
- Store part #
- C445648
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,695 in stock
#C445648
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.71 | ₹58.55 |
| 50+ | ₹9.43 | ₹471.50 |
| 150+ | ₹8.28 | ₹1,242.00 |
| 500+ | ₹7.44 | ₹3,720.00 |
| 2,500+ | ₹5.53 | ₹13,825.00 |
| 5,000+ | ₹5.20 | ₹26,000.00 |
5 × ₹11.71
₹58.55
excl. GST
₹69.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERA6AEB331V
₹58.55 for 5 + GST
Specifications
- Resistance
- 330Ω
- Power(Watts)
- 125mW
- Voltage Rating
- 100V
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Key features
- High reliability: stable performance in high-temperature and high-humidity environments (85°C, 65% RH rated load, operating temperature range: -55°C ~ +155°C)
- High accuracy: low resistance tolerance and TCR
- High performance: low current noise, excellent linearity
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2133C
- AEC-Q200 compliant (except ERA1A)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AR05BTCW3300#C2984391Viking · 0805 | Viking | 0805 | 13,190 | ₹4.23 · 13,190 in stock | View |
 | ARG05BTC3300#C2984456Viking · 0805 | Viking | 0805 | 7,340 | ₹4.31 · 7,340 in stock | View |
 | TC0525B3300T5G#C2989109UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 4,480 | ₹4.68 · 4,480 in stock | View |
 | PTFR0805B330RP9#C2849179RESI · 0805 | RESI | 0805 | 15 | ₹22.07 · 15 in stock | View |
 | PTFR0805B330RN9#C351578RESI · 0805 | RESI | 0805 | 2,765 | ₹24.50 · 2,765 in stock | View |
