PANASONICDatasheet (PDF)

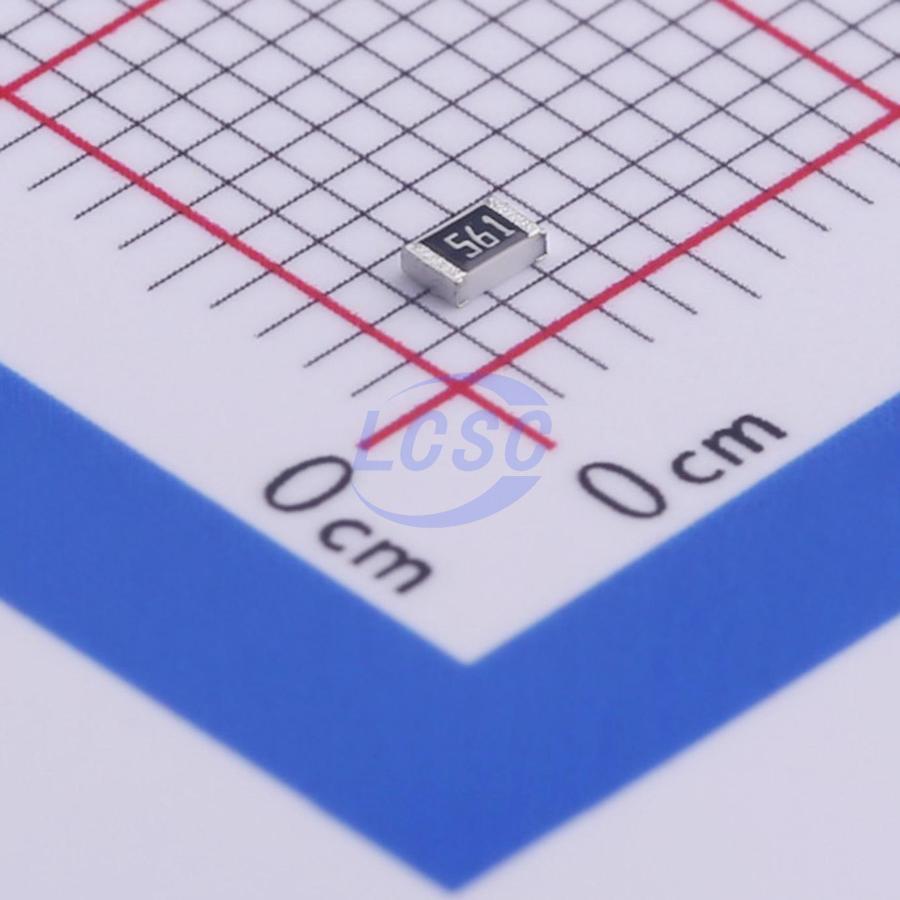

ERA6AEB561V
560Ω ±0.1% 125mW 0805 Thin Film Resistor AEC-Q200
0805ROHS3 CompliantActive
RES 560Ω ±0.1% 125mW 0805
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERA6AEB561V
- Store part #
- C445649
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,765 in stock
#C445649
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.76 | ₹58.80 |
| 50+ | ₹9.49 | ₹474.50 |
| 150+ | ₹8.36 | ₹1,254.00 |
| 500+ | ₹7.51 | ₹3,755.00 |
| 2,500+ | ₹5.53 | ₹13,825.00 |
| 5,000+ | ₹5.19 | ₹25,950.00 |
5 × ₹11.76
₹58.80
excl. GST
₹69.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERA6AEB561V
₹58.80 for 5 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 560Ω
- Voltage Rating
- 100V
- Type
- Thin Film Resistor
- Tolerance
- ±0.1%
- Temperature Coefficient
- ±25ppm/℃
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Key features
- High reliability: stable performance in high-temperature and high-humidity environments (85°C, 65% RH rated load, operating temperature range: -55°C ~ +155°C)
- High accuracy: low resistance tolerance and TCR
- High performance: low current noise, excellent linearity
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2133C
- AEC-Q200 compliant (except ERA1A)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AR05BTCW5600#C319521Viking · 0805 | Viking | 0805 | 2,100 | ₹6.15 · 2,100 in stock | View |
 | ARG05BTC5600#C5122076Viking · 0805 | Viking | 0805 | 2,800 | ₹4.58 · 2,800 in stock | View |
 | RT0805BRD07560RL#C865558YAGEO · 0805 | YAGEO | 0805 | 60 | ₹5.20 · 60 in stock | View |
 | PTFR0805B560RP9#C2849273RESI · 0805 | RESI | 0805 | 10 | ₹19.06 · 10 in stock | View |
 | TC0525B5600T5G#C23175951UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 180 | ₹1.77 · 180 in stock | View |
