PANASONICDatasheet (PDF)

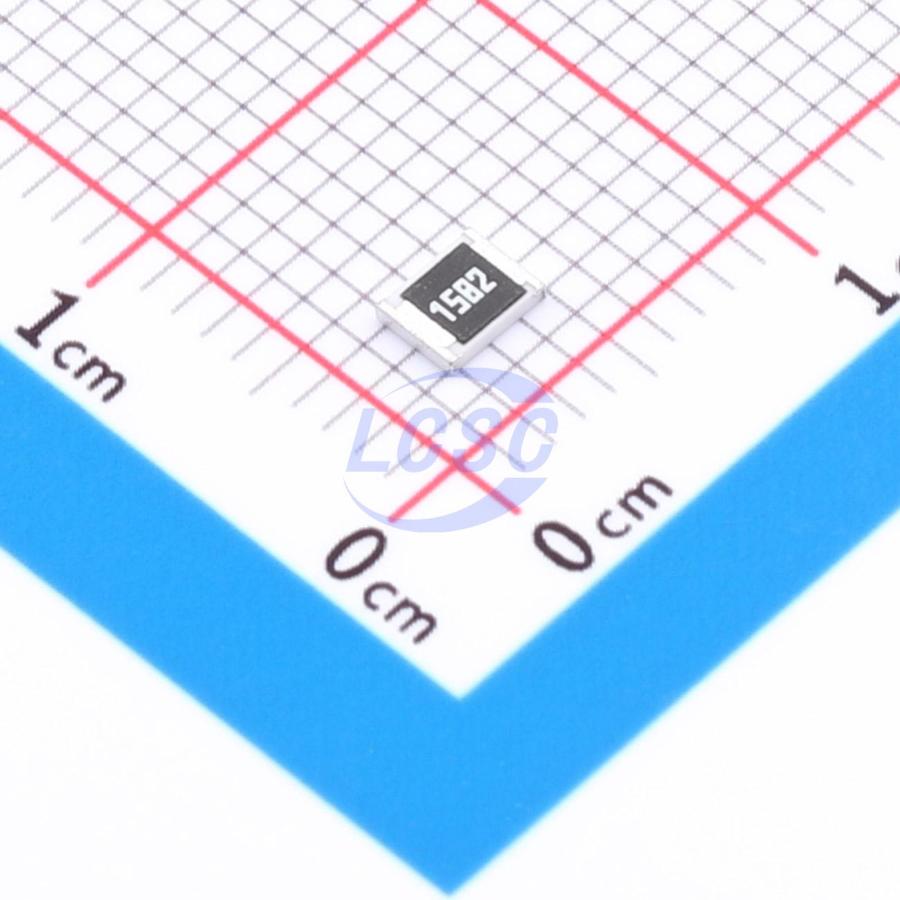

ERJ-14NF1582U
15.8kΩ ±1% 500mW 1210 Thick Film Resistor AEC-Q200
1210ROHS3 CompliantActive
RES 15.8kΩ ±1% 500mW 1210
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJ-14NF1582U
- Store part #
- C2082140
- Package / case
- 1210
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
255 in stock
#C2082140
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹26.24 | ₹26.24 |
| 10+ | ₹25.63 | ₹256.30 |
| 30+ | ₹25.22 | ₹756.60 |
| 100+ | ₹24.81 | ₹2,481.00 |
1 × ₹26.24
₹26.24
excl. GST
₹30.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERJ-14NF1582U
₹26.24 for 1 + GST
Specifications
- Power(Watts)
- 500mW
- Resistance
- 15.8kΩ
- Voltage Rating
- 200V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.034 g
Overview
Key features
- Compact and lightweight
- High reliability: metal glaze thick-film resistive element with triple-layer electrode
- Compatible with pick-and-place machines: tape and reel packaging available
- Suitable for reflow and wave soldering
- Low resistance tolerance: ±1% for ERJXG, 1G, 2R, 3E, 6E, 8E, 14, 12, 1T series; ±0.5% for ERJ1R, 2R, 3R, 6R series
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
- AEC-Q200 compliant (except ERJ1R, ERJXG, ERJ1GN)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CRCW121015K8FKTA#C3968228VISHAY · 1210 | VISHAY | 1210 | On request | Price on request | Quote | |
| CRCW121015K8FKEA#C4006351VISHAY · 1210 | VISHAY | 1210 | On request | Price on request | Quote | |
| ERJ-S14F1582U#C2140375PANASONIC · 1210 | PANASONIC | 1210 | On request | Price on request | Quote | |
| AC1210FR-0715K8L#C4162091YAGEO · 1210 | YAGEO | 1210 | On request | Price on request | Quote | |
| AF1210FR-0715K8L#C2118681YAGEO · 1210 | YAGEO | 1210 | On request | Price on request | Quote | |
