PANASONICDatasheet (PDF)

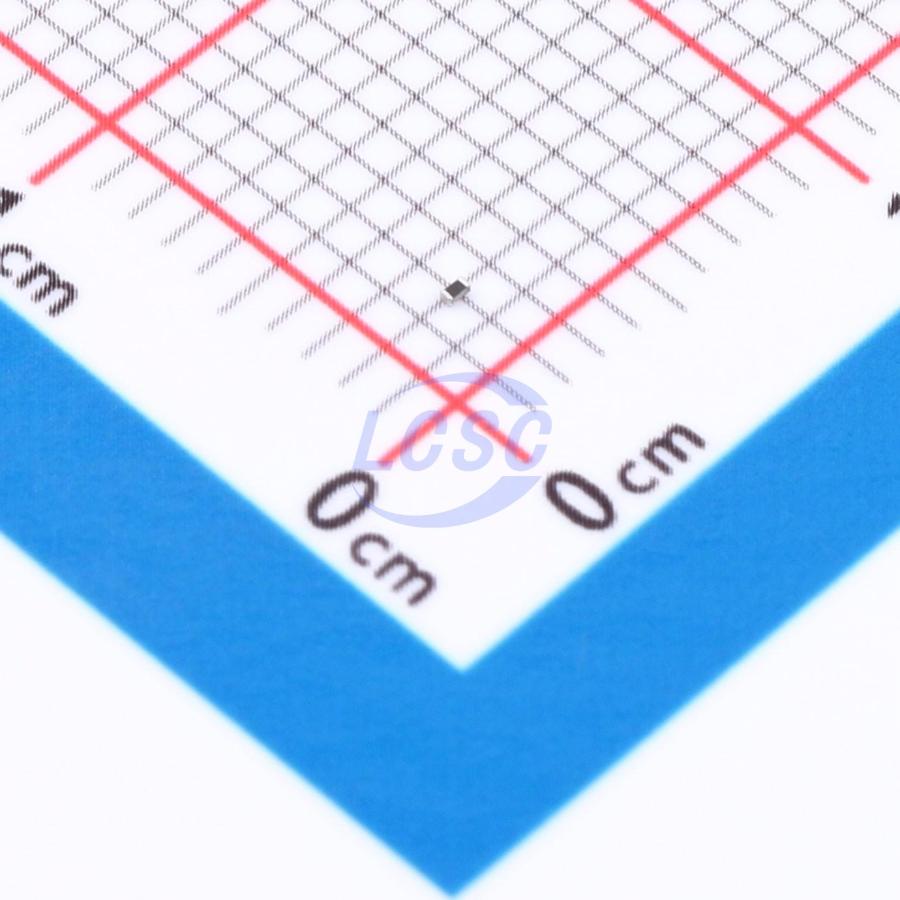

ERJ-1GNF1692C
50mW 16.9kΩ Thick Film Resistor ±1% ±200ppm/℃ 0201 Chip Resistor - Surface Mount RoHS
0201ROHS3 CompliantActive
RES 16900Ω ±1% 0.05W 0201
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJ-1GNF1692C
- Store part #
- C4134362
- Package / case
- 0201
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,750 in stock
#C4134362
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.36 | ₹68.00 |
| 500+ | ₹1.07 | ₹535.00 |
| 1,500+ | ₹0.9129 | ₹1,369.35 |
| 15,000+ | ₹0.8203 | ₹12,304.50 |
| 30,000+ | ₹0.7409 | ₹22,227.00 |
| 45,000+ | ₹0.7012 | ₹31,554.00 |
50 × ₹1.36
₹68.00
excl. GST
₹80.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
ERJ-1GNF1692C
₹68.00 for 50 + GST
Specifications
- Power(Watts)
- 50mW
- Resistance
- 16.9kΩ
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±200ppm/℃
- Operating Temperature
- -55℃~+125℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.01 g
Overview
Key features
- Compact and lightweight
- High reliability: metal glaze thick-film resistive element with triple-layer electrode
- Compatible with pick-and-place machines: tape and reel packaging available
- Suitable for reflow and wave soldering
- Low resistance tolerance: ±1% for ERJXG, 1G, 2R, 3E, 6E, 8E, 14, 12, 1T series; ±0.5% for ERJ1R, 2R, 3R, 6R series
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
- AEC-Q200 compliant (except ERJ1R, ERJXG, ERJ1GN)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RC0201FR-0716K9L#C138169YAGEO · 0201 | YAGEO | 0201 | 13,900 | ₹0.4366 · 13,900 in stock | View |
 | RC-01W1692FT#C320719FH · 0201 | FH | 0201 | 15,000 | ₹0.1455 · 15,000 in stock | View |
 | 0201WMF1692TEE#C473497UNI-ROYAL · 0201 | UNI-ROYAL | 0201 | 11,300 | ₹0.1455 · 11,300 in stock | View |
 | AC0201FR-0716K9L#C910606YAGEO · 0201 | YAGEO | 0201 | 9,600 | ₹0.5953 · 9,600 in stock | View |
 | RTT011692FTH#C158758RALEC · 0201 | RALEC | 0201 | On request | Price on request | Quote |
