PANASONICDatasheet (PDF)

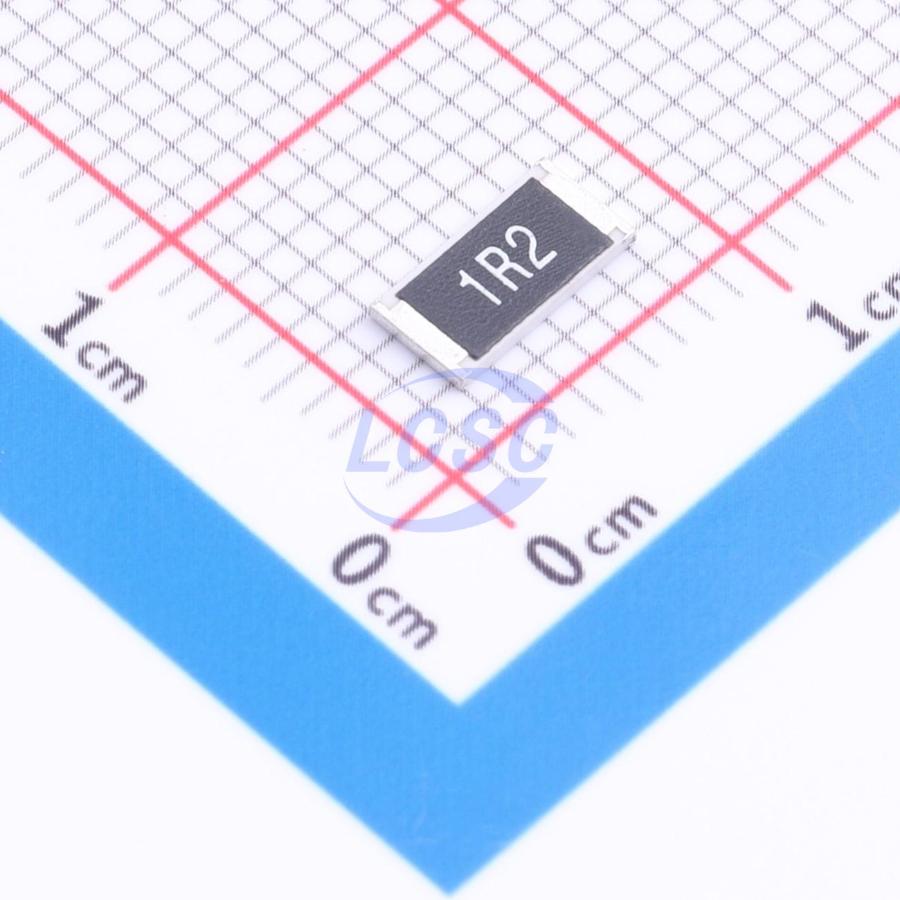

ERJ-1TRQF1R2U
1W 1.2Ω Thick Film Resistor ±100ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 1.2Ω ±1% 1W 2512
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJ-1TRQF1R2U
- Store part #
- C4055645
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
94 in stock
#C4055645
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.26 | ₹52.26 |
| 10+ | ₹51.20 | ₹512.00 |
| 30+ | ₹50.55 | ₹1,516.50 |
| 100+ | ₹49.71 | ₹4,971.00 |
1 × ₹52.26
₹52.26
excl. GST
₹61.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
ERJ-1TRQF1R2U
₹52.26 for 1 + GST
Specifications
- Power(Watts)
- 1W
- Resistance
- 1.2Ω
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.123 g
Overview
Key features
- Current sensing resistors
- Compact and lightweight
- Low resistance and high accuracy achieved through proprietary thick-film resistive elements and special electrode structure
- Compatible with reflow and wave soldering
- High power via dual-sided resistive element structure that suppresses temperature rise: ERJ2LW, 3LW, 6LW, 2BW, 3BW, 6BW, 8BW, 6CW, 8CW
- Low TCR: ±75×10⁻⁶/K (ERJ6CW, ERJ8CW)
- Low resistance value: down to 5 mΩ for thick-film resistors (ERJ3LW, 6LW)
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2144
- AEC-Q200 compliant
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CRCW25121R20FKEG#C4145424VISHAY · 2512 | VISHAY | 2512 | 5 | ₹60.65 · 5 in stock | View |
 | FRC2512F1R20TS#C2960682FOJAN · 2512 | FOJAN | 2512 | 13,140 | ₹6.46 · 13,140 in stock | View |
 | 25121WF120KT4E#C46193UNI-ROYAL · 2512 | UNI-ROYAL | 2512 | 2,710 | ₹6.26 · 2,710 in stock | View |
 | AC2512FK-071R2L#C728142YAGEO · 2512 | YAGEO | 2512 | 5 | ₹12.26 · 5 in stock | View |
 | RC2512FK-071R2L#C877834YAGEO · 2512 | YAGEO | 2512 | 10 | ₹11.52 · 10 in stock | View |
