PANASONICDatasheet (PDF)

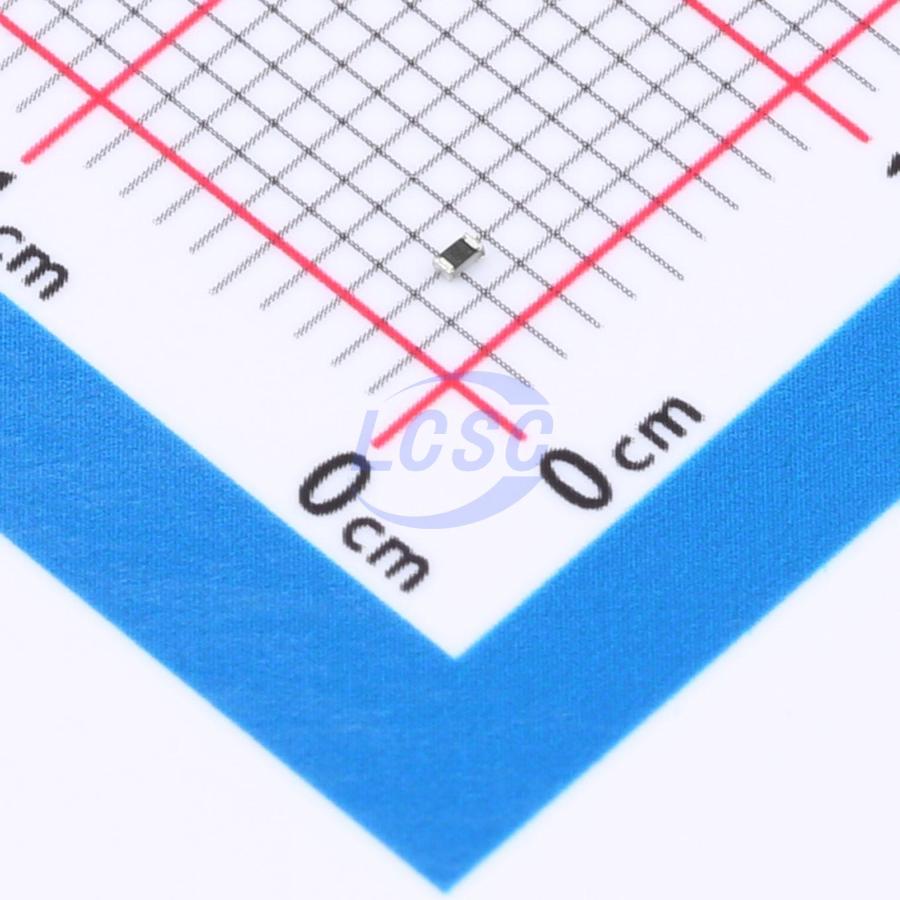

ERJ-2RKD1004X
1MΩ ±0.5% 63mW 0402 Thick Film Resistor AEC-Q200
0402ROHS3 CompliantActive
RES 1MΩ ±0.5% 63mW 0402
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJ-2RKD1004X
- Store part #
- C4034247
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
600 in stock
#C4034247
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.39 | ₹63.90 |
| 100+ | ₹5.01 | ₹501.00 |
| 300+ | ₹4.33 | ₹1,299.00 |
| 1,000+ | ₹3.80 | ₹3,800.00 |
| 5,000+ | ₹3.39 | ₹16,950.00 |
| 10,000+ | ₹3.18 | ₹31,800.00 |
10 × ₹6.39
₹63.90
excl. GST
₹75.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ERJ-2RKD1004X
₹63.90 for 10 + GST
Specifications
- Power(Watts)
- 63mW
- Resistance
- 1MΩ
- Voltage Rating
- 50V
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±0.5%
- Operating Temperature
- -55℃~+125℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.007 g
Overview
Key features
- Compact and lightweight
- High reliability: metal glaze thick-film resistive element with triple-layer electrode
- Compatible with pick-and-place machines: tape and reel packaging available
- Suitable for reflow and wave soldering
- Low resistance tolerance: ±1% for ERJXG, 1G, 2R, 3E, 6E, 8E, 14, 12, 1T series; ±0.5% for ERJ1R, 2R, 3R, 6R series
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
- AEC-Q200 compliant (except ERJ1R, ERJXG, ERJ1GN)
- RoHS compliant
