PANASONICDatasheet (PDF)

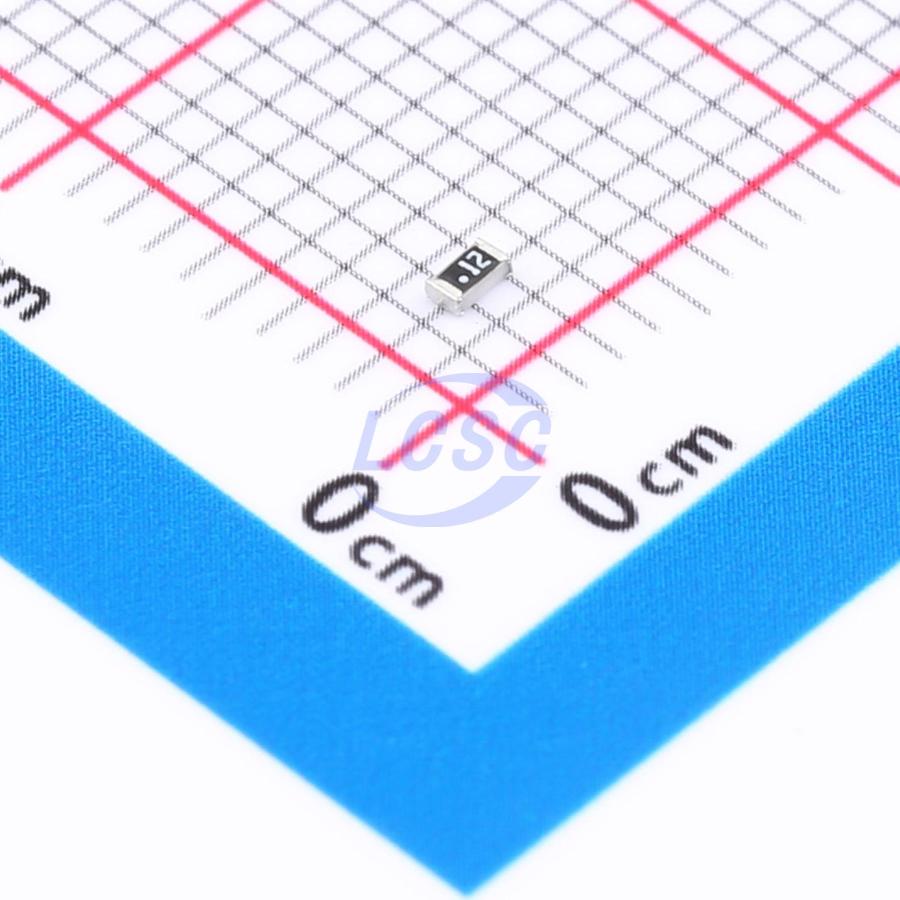

ERJ-3RSFR12V
120mΩ 100mW Thick Film Resistor ±300ppm/℃ ±1% 0603 Chip Resistor - Surface Mount RoHS
0603ROHS3 CompliantActive
RES 0.12Ω ±1% 0.1W 0603
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJ-3RSFR12V
- Store part #
- C4059772
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C4059772
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.36 | ₹111.80 |
| 50+ | ₹17.81 | ₹890.50 |
| 150+ | ₹15.85 | ₹2,377.50 |
| 500+ | ₹13.42 | ₹6,710.00 |
| 2,500+ | ₹12.33 | ₹30,825.00 |
| 5,000+ | ₹11.68 | ₹58,400.00 |
5 × ₹22.36
₹111.80
excl. GST
₹131.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERJ-3RSFR12V
₹111.80 for 5 + GST
Specifications
- Resistance
- 120mΩ
- Power(Watts)
- 100mW
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±300ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
Key features
- Current sensing resistors
- Compact and lightweight
- Low resistance and high accuracy achieved through proprietary thick-film resistive elements and special electrode structure
- Compatible with reflow and wave soldering
- High power via dual-sided resistive element structure that suppresses temperature rise: ERJ2LW, 3LW, 6LW, 2BW, 3BW, 6BW, 8BW, 6CW, 8CW
- Low TCR: ±75×10⁻⁶/K (ERJ6CW, ERJ8CW)
- Low resistance value: down to 5 mΩ for thick-film resistors (ERJ3LW, 6LW)
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2144
- AEC-Q200 compliant
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CS03W5F120LT5E#C2771749UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 4,150 | ₹2.47 · 4,150 in stock | View |
 | 0603WAF120LT5E#C247139UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 3,700 | ₹0.5557 · 3,700 in stock | View |
 | GR0603F0R12T5G00#C49655449GiantOhm · 0603 | GiantOhm | 0603 | 1,700 | ₹0.3704 · 1,700 in stock | View |
 | HP03W5F120LT5E#C50670381UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 240 | ₹2.22 · 240 in stock | View |
 | RTT03R120FTP#C166715RALEC · 0603 | RALEC | 0603 | On request | ₹0.7012 · 0 in stock | View |
