PANASONICDatasheet (PDF)

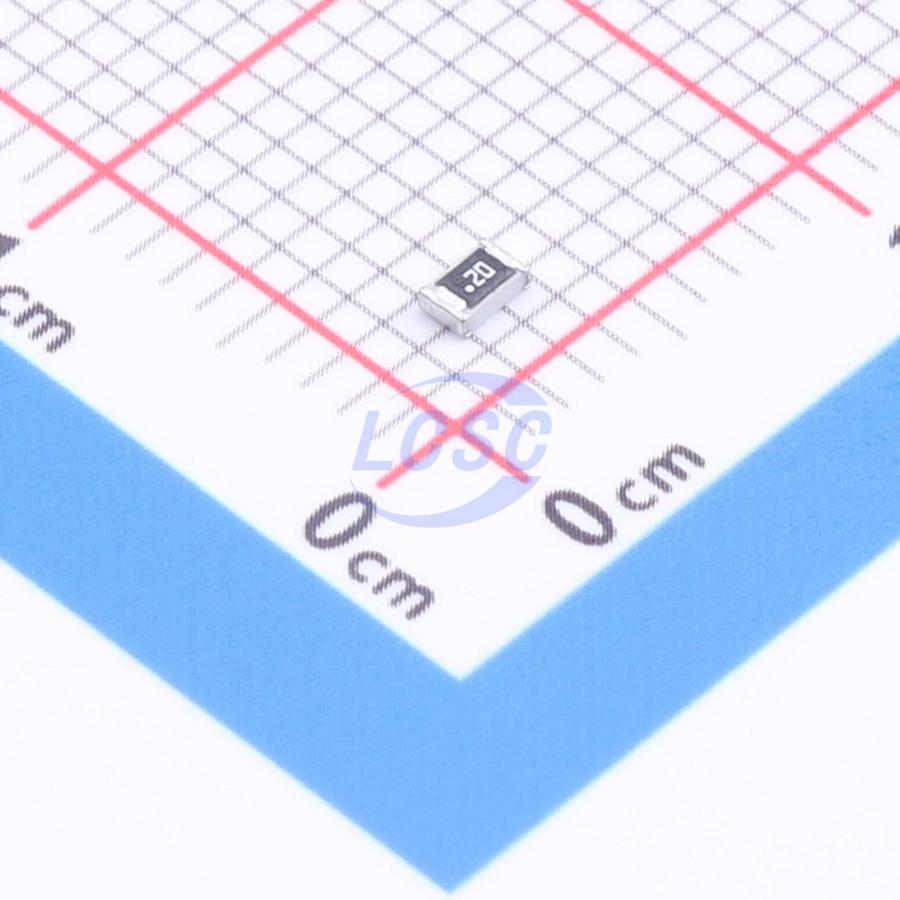

ERJ-6BSFR20V
330mW 200mΩ Thick Film Resistor ±1% ±250ppm/℃ 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 0.2Ω ±1% 0.33W 0805
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJ-6BSFR20V
- Store part #
- C3992773
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C3992773
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.10 | ₹155.50 |
| 50+ | ₹24.81 | ₹1,240.50 |
| 150+ | ₹22.09 | ₹3,313.50 |
| 500+ | ₹18.73 | ₹9,365.00 |
| 2,500+ | ₹17.24 | ₹43,100.00 |
| 5,000+ | ₹16.34 | ₹81,700.00 |
5 × ₹31.10
₹155.50
excl. GST
₹183.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERJ-6BSFR20V
₹155.50 for 5 + GST
Specifications
- Power(Watts)
- 330mW
- Resistance
- 200mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±250ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
Key features
- Current sensing resistors
- Compact and lightweight
- Low resistance and high accuracy achieved through proprietary thick-film resistive elements and special electrode structure
- Compatible with reflow and wave soldering
- High power via dual-sided resistive element structure that suppresses temperature rise: ERJ2LW, 3LW, 6LW, 2BW, 3BW, 6BW, 8BW, 6CW, 8CW
- Low TCR: ±75×10⁻⁶/K (ERJ6CW, ERJ8CW)
- Low resistance value: down to 5 mΩ for thick-film resistors (ERJ3LW, 6LW)
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2144
- AEC-Q200 compliant
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ERJ-6DSFR20V#C2074761PANASONIC · 0805 | PANASONIC | 0805 | 2,065 | ₹17.93 · 2,065 in stock | View |
 | HP05W3F200LT5E#C2759321UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 17,890 | ₹6.92 · 17,890 in stock | View |
| SR732ARTTDR200F#C7084322KOA · 0805 | KOA | 0805 | On request | Price on request | Quote | |
| RCWH0805R200FKEA#C2093784VISHAY · 0805 | VISHAY | 0805 | On request | Price on request | Quote | |
 | SR732ATTDR200F#C186580KOA · 0805 | KOA | 0805 | On request | ₹17.05 · 0 in stock | View |
