PANASONICDatasheet (PDF)

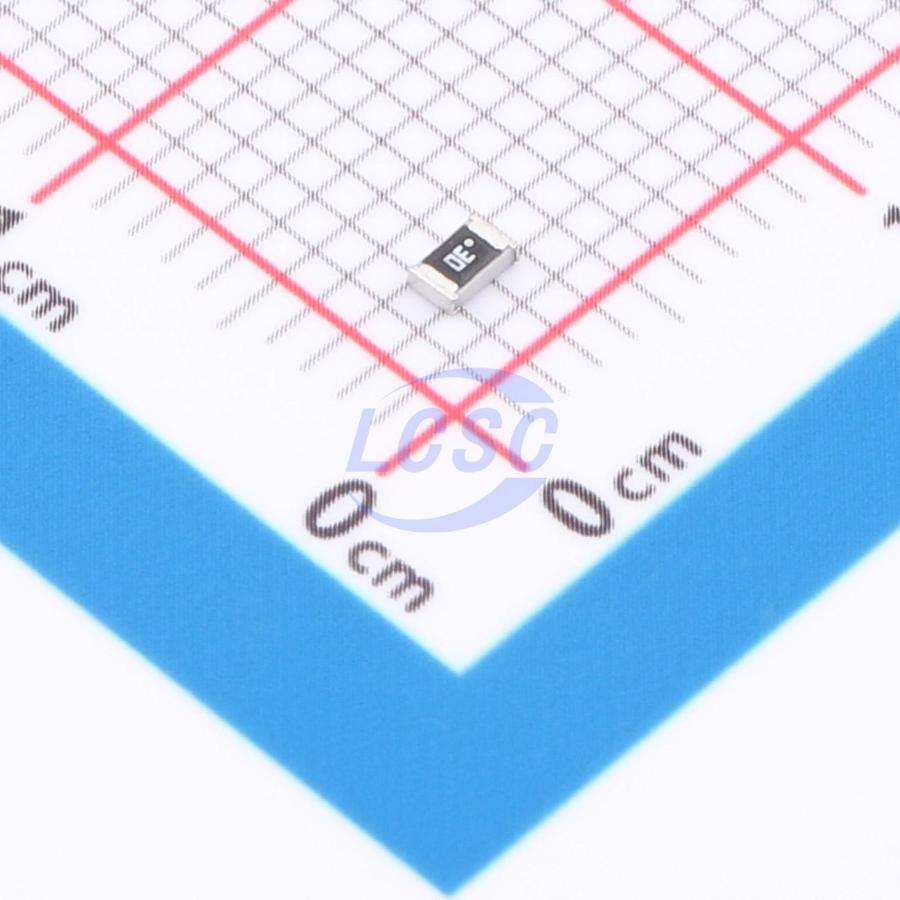

ERJ-6DQFR30V
300mΩ 500mW Thick Film Resistor ±100ppm/℃ ±1% 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 0.3Ω ±1% 0.5W 0805
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJ-6DQFR30V
- Store part #
- C4268065
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,505 in stock
#C4268065
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.35 | ₹76.75 |
| 50+ | ₹12.30 | ₹615.00 |
| 150+ | ₹10.78 | ₹1,617.00 |
| 500+ | ₹9.64 | ₹4,820.00 |
| 2,500+ | ₹8.73 | ₹21,825.00 |
| 5,000+ | ₹8.28 | ₹41,400.00 |
5 × ₹15.35
₹76.75
excl. GST
₹90.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERJ-6DQFR30V
₹76.75 for 5 + GST
Specifications
- Resistance
- 300mΩ
- Power(Watts)
- 500mW
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Key features
- Current sensing resistors
- Compact and lightweight
- Low resistance and high accuracy achieved through proprietary thick-film resistive elements and special electrode structure
- Compatible with reflow and wave soldering
- High power via dual-sided resistive element structure that suppresses temperature rise: ERJ2LW, 3LW, 6LW, 2BW, 3BW, 6BW, 8BW, 6CW, 8CW
- Low TCR: ±75×10⁻⁶/K (ERJ6CW, ERJ8CW)
- Low resistance value: down to 5 mΩ for thick-film resistors (ERJ3LW, 6LW)
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2144
- AEC-Q200 compliant
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CSRT0805FTR300#C6490464SEI(Stackpole Electronics Inc.) · 0805 | SEI(Stackpole Electronics Inc.) | 0805 | On request | Price on request | Quote | |
