PANASONICDatasheet (PDF)

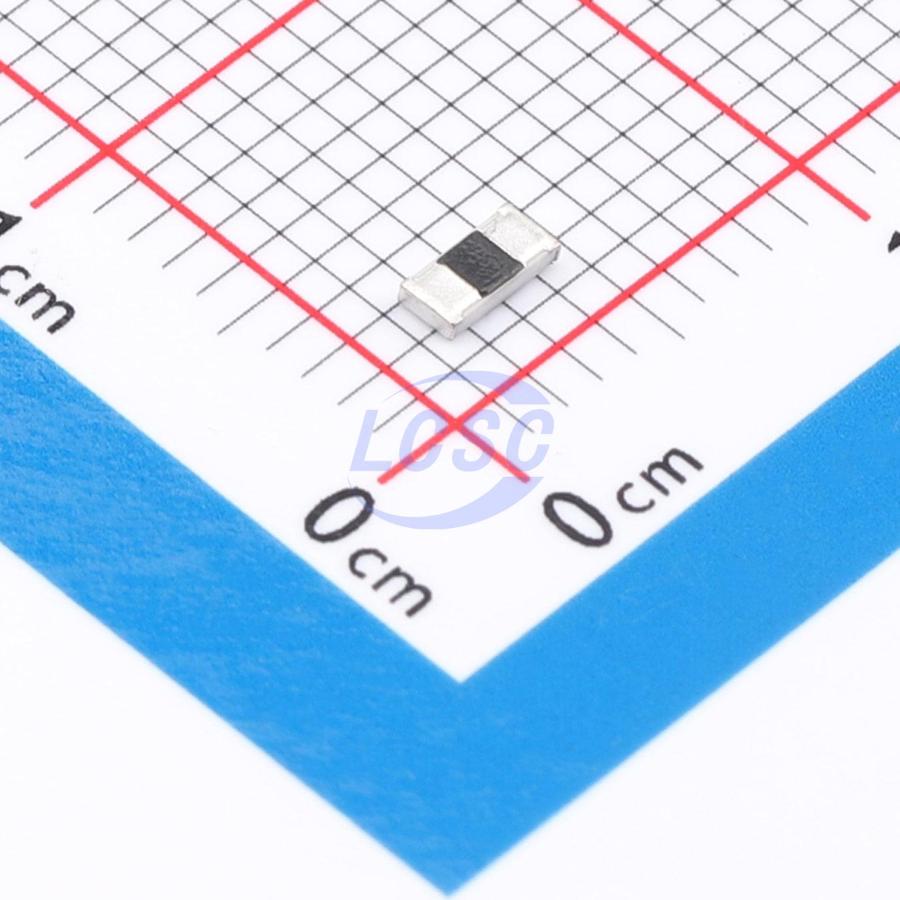

ERJ-8BWJR100V
1W 100mΩ Thick Film Resistor 0ppm/℃~+100ppm/℃ ±5% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 0.1Ω ±5% 1W 1206
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJ-8BWJR100V
- Store part #
- C4063750
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42 in stock
#C4063750
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹47.16 | ₹47.16 |
| 10+ | ₹46.08 | ₹460.80 |
| 30+ | ₹45.45 | ₹1,363.50 |
| 100+ | ₹44.80 | ₹4,480.00 |
1 × ₹47.16
₹47.16
excl. GST
₹55.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERJ-8BWJR100V
₹47.16 for 1 + GST
Specifications
- Power(Watts)
- 1W
- Resistance
- 100mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- 0ppm/℃~+100ppm/℃
- Tolerance
- ±5%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.013 g
Overview
Key features
- Current sensing resistors
- Compact and lightweight
- Low resistance and high accuracy achieved through proprietary thick-film resistive elements and special electrode structure
- Compatible with reflow and wave soldering
- High power via dual-sided resistive element structure that suppresses temperature rise: ERJ2LW, 3LW, 6LW, 2BW, 3BW, 6BW, 8BW, 6CW, 8CW
- Low TCR: ±75×10⁻⁶/K (ERJ6CW, ERJ8CW)
- Low resistance value: down to 5 mΩ for thick-film resistors (ERJ3LW, 6LW)
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2144
- AEC-Q200 compliant
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ERJ8BWFR100V#C411236PANASONIC · 1206 | PANASONIC | 1206 | 21,270 | ₹22.73 · 21,270 in stock | View |
 | HoLRTX1206-1W-100mR-1%#C5123673Milliohm · 1206 | Milliohm | 1206 | 23,540 | ₹12.57 · 23,540 in stock | View |
 | MFHA1206R1000FC#C6224005EATON · 1206 | EATON | 1206 | 225 | ₹29.32 · 225 in stock | View |
| RLC73PH2BR10FTD#C20473283TE Connectivity · 1206 | TE Connectivity | 1206 | On request | Price on request | Quote | |
| RLC73PH2BR10FTDF#C20474226TE Connectivity · 1206 | TE Connectivity | 1206 | On request | Price on request | Quote | |
