PANASONICDatasheet (PDF)

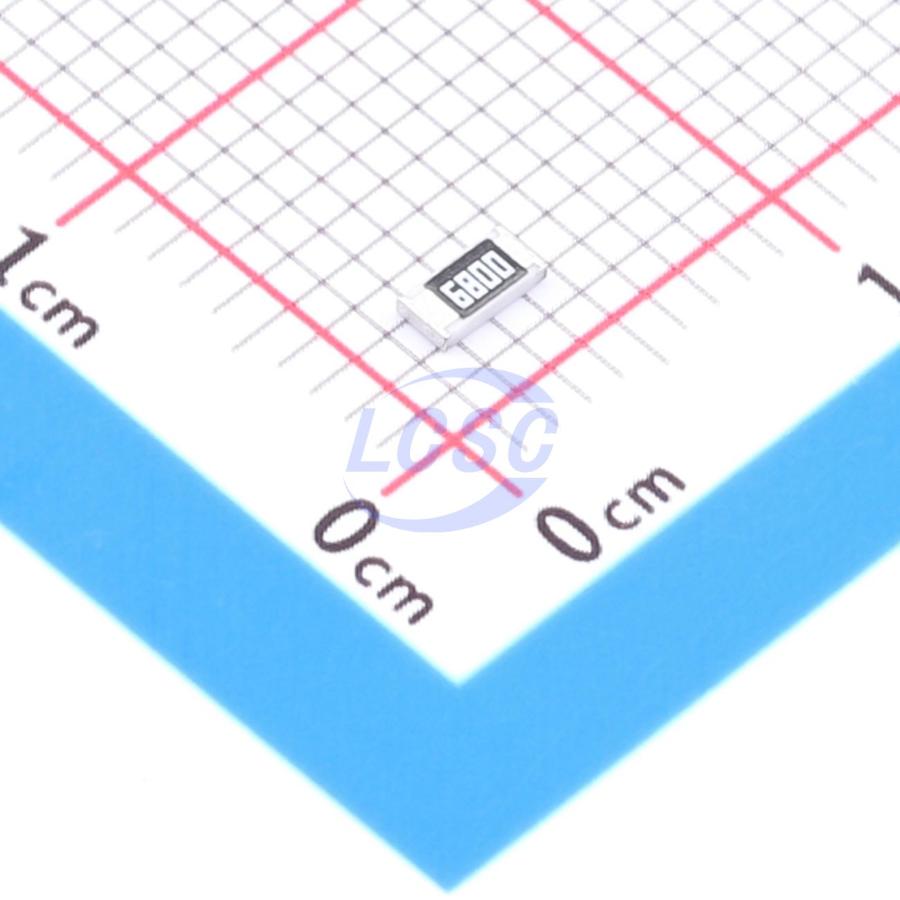

ERJ-8ENF6800V
680Ω ±1% 250mW 1206 Thick Film Resistor AEC-Q200
1206ROHS3 CompliantActive
RES 680Ω ±1% 250mW 1206
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJ-8ENF6800V
- Store part #
- C2077783
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C2077783
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹7.04 | ₹35.20 |
| 50+ | ₹6.89 | ₹344.50 |
| 150+ | ₹6.80 | ₹1,020.00 |
| 500+ | ₹6.69 | ₹3,345.00 |
5 × ₹7.04
₹35.20
excl. GST
₹41.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERJ-8ENF6800V
₹35.20 for 5 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 680Ω
- Voltage Rating
- 200V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
Key features
- Compact and lightweight
- High reliability: metal glaze thick-film resistive element with triple-layer electrode
- Compatible with pick-and-place machines: tape and reel packaging available
- Suitable for reflow and wave soldering
- Low resistance tolerance: ±1% for ERJXG, 1G, 2R, 3E, 6E, 8E, 14, 12, 1T series; ±0.5% for ERJ1R, 2R, 3R, 6R series
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
- AEC-Q200 compliant (except ERJ1R, ERJXG, ERJ1GN)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RC1206FR-07680RL#C137240YAGEO · 1206 | YAGEO | 1206 | 51,400 | ₹0.807 · 51,400 in stock | View |
 | AC1206FR-07680RL#C144479YAGEO · 1206 | YAGEO | 1206 | 4,450 | ₹1.65 · 4,450 in stock | View |
| CRCW1206680RFKEAHP#C2078561VISHAY · 1206 | VISHAY | 1206 | 35 | ₹11.35 · 35 in stock | View | |
 | RS-06K6800FT#C140006FH · 1206 | FH | 1206 | 3,700 | ₹0.7541 · 3,700 in stock | View |
 | 1206W4F6800T5E#C17975UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 29,600 | ₹0.979 · 29,600 in stock | View |
