PANASONICDatasheet (PDF)
ERJ2RKF14R7X

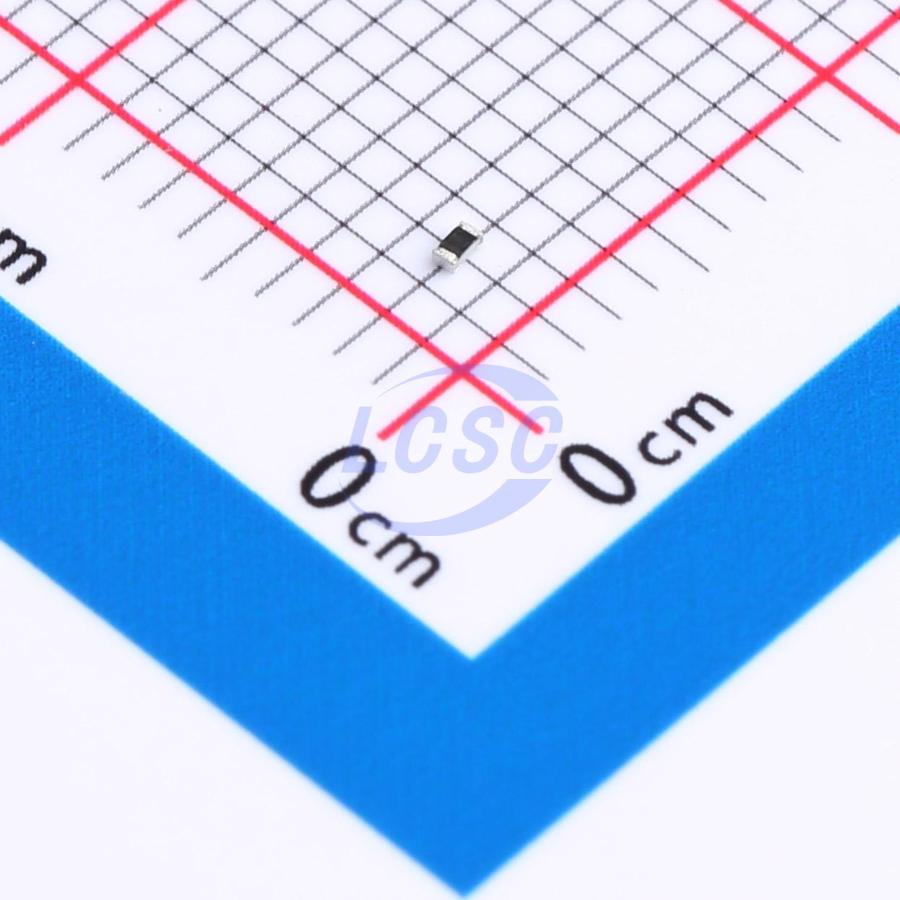

14.7Ω ±1% 100mW 0402 Thick Film Resistor AEC-Q200
0402ROHS3 CompliantActive
RES 14.7Ω ±1% 100mW 0402
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJ2RKF14R7X
- Store part #
- C2085323
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C2085323
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹0.759 | ₹37.95 |
| 500+ | ₹0.616 | ₹308.00 |
| 1,500+ | ₹0.539 | ₹808.50 |
| 10,000+ | ₹0.473 | ₹4,730.00 |
| 20,000+ | ₹0.429 | ₹8,580.00 |
| 50,000+ | ₹0.407 | ₹20,350.00 |
50 × ₹0.759
₹37.95
excl. GST
₹44.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ERJ2RKF14R7X
₹37.95 for 50 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 14.7Ω
- Voltage Rating
- 50V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.011 g
Overview
Key features
- Compact and lightweight
- High reliability: metal glaze thick-film resistive element with triple-layer electrode
- Compatible with pick-and-place machines: tape and reel packaging available
- Suitable for reflow and wave soldering
- Low resistance tolerance: ±1% for ERJXG, 1G, 2R, 3E, 6E, 8E, 14, 12, 1T series; ±0.5% for ERJ1R, 2R, 3R, 6R series
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
- AEC-Q200 compliant (except ERJ1R, ERJXG, ERJ1GN)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RK73H1ETTP14R7F#C316902KOA · 0402 | KOA | 0402 | On request | Price on request | Quote |
| RK73H1ERTTP14R7F#C4059038KOA · 0402 | KOA | 0402 | On request | Price on request | Quote | |
| RMC1/16SK14R7FTH#C6397911KAMAYA · 0402 | KAMAYA | 0402 | On request | Price on request | Quote | |
| RMCP0402FT14R7#C6274847SEI(Stackpole Electronics Inc.) · 0402 | SEI(Stackpole Electronics Inc.) | 0402 | On request | Price on request | Quote | |
| CRCW040214R7FKEDHP#C3983325VISHAY · 0402 | VISHAY | 0402 | On request | Price on request | Quote | |
