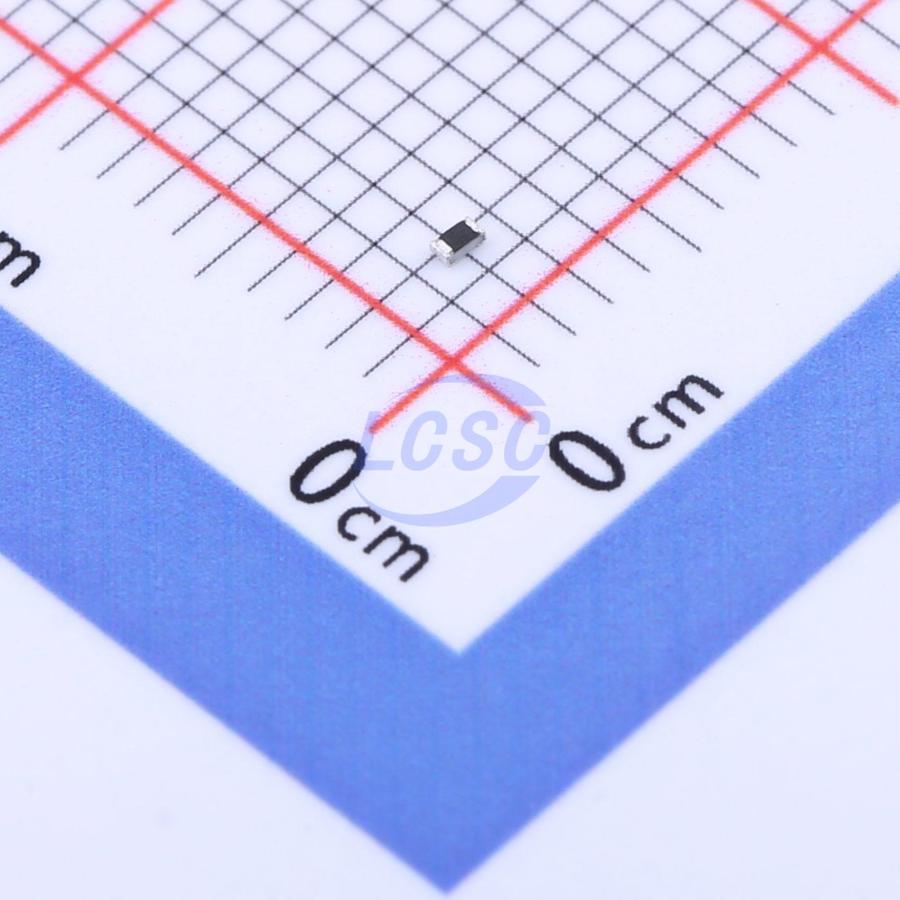

PANASONICDatasheet (PDF)
ERJ2RKF1822X
18.2kΩ ±1% 100mW 0402 Thick Film Resistor AEC-Q200
0402ROHS3 CompliantActive
RES 18.2kΩ ±1% 100mW 0402
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJ2RKF1822X
- Store part #
- C2076827
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36,600 in stock
#C2076827
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.583 | ₹58.30 |
| 1,000+ | ₹0.473 | ₹473.00 |
| 3,000+ | ₹0.418 | ₹1,254.00 |
| 10,000+ | ₹0.374 | ₹3,740.00 |
| 50,000+ | ₹0.352 | ₹17,600.00 |
| 1,00,000+ | ₹0.330 | ₹33,000.00 |
100 × ₹0.583
₹58.30
excl. GST
₹68.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ERJ2RKF1822X
₹58.30 for 100 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 18.2kΩ
- Voltage Rating
- 50V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.011 g
Overview
Key features
- Compact and lightweight
- High reliability: metal glaze thick-film resistive element with triple-layer electrode
- Compatible with pick-and-place machines: tape and reel packaging available
- Suitable for reflow and wave soldering
- Low resistance tolerance: ±1% for ERJXG, 1G, 2R, 3E, 6E, 8E, 14, 12, 1T series; ±0.5% for ERJ1R, 2R, 3R, 6R series
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
- AEC-Q200 compliant (except ERJ1R, ERJXG, ERJ1GN)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CRCW040218K2FKEDHP#C1880765VISHAY · 0402 | VISHAY | 0402 | On request | Price on request | Quote | |
| RCS040218K2FKED#C1881065VISHAY · 0402 | VISHAY | 0402 | On request | Price on request | Quote | |
| RK73H1ERTTP1822F#C2598984KOA · 0402 | KOA | 0402 | On request | Price on request | Quote | |
 | RK73H1ETTP1822F#C276147KOA · 0402 | KOA | 0402 | On request | Price on request | Quote |
| HQ02WAF1822TCE#C2791395UNI-ROYAL · 0402 | UNI-ROYAL | 0402 | On request | Price on request | Quote | |
