PANASONICDatasheet (PDF)
ERJ2RKF64R9X

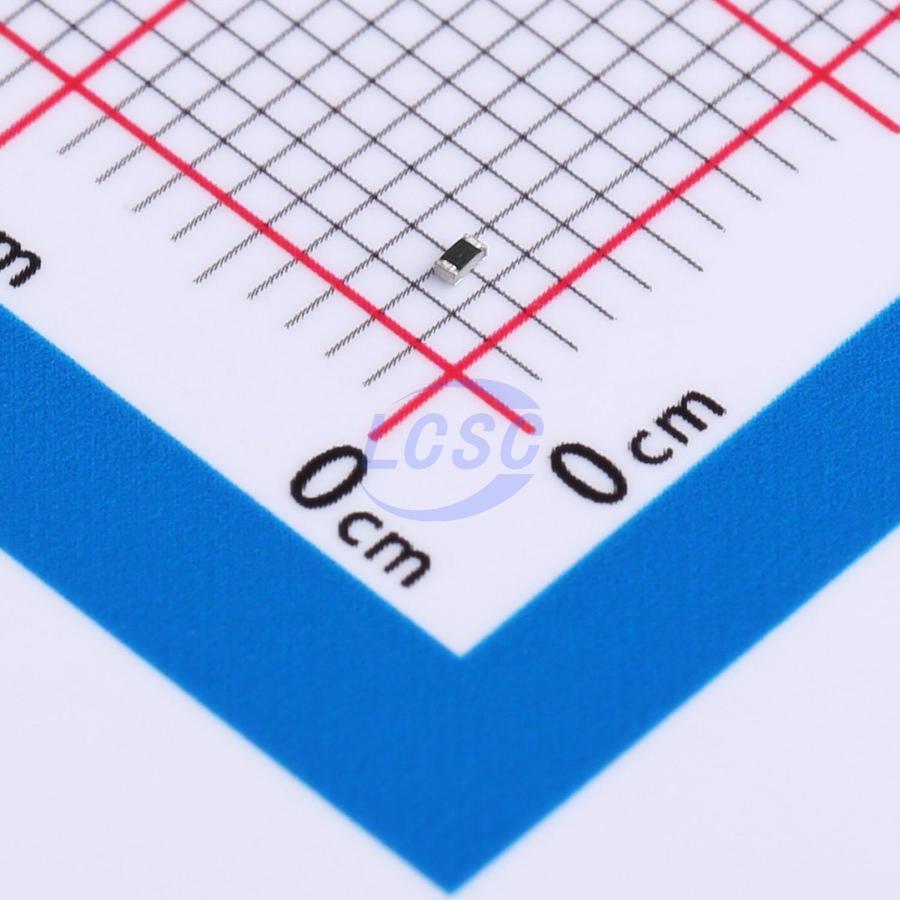

64.9Ω ±1% 100mW 0402 Thick Film Resistor AEC-Q200
0402ROHS3 CompliantActive
RES 64.9Ω ±1% 100mW 0402
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJ2RKF64R9X
- Store part #
- C2076866
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
300 in stock
#C2076866
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.814 | ₹81.40 |
| 1,000+ | ₹0.638 | ₹638.00 |
| 3,000+ | ₹0.550 | ₹1,650.00 |
| 10,000+ | ₹0.484 | ₹4,840.00 |
| 50,000+ | ₹0.429 | ₹21,450.00 |
| 1,00,000+ | ₹0.407 | ₹40,700.00 |
100 × ₹0.814
₹81.40
excl. GST
₹96.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ERJ2RKF64R9X
₹81.40 for 100 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 64.9Ω
- Voltage Rating
- 50V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.011 g
Overview
Key features
- Compact and lightweight
- High reliability: metal glaze thick-film resistive element with triple-layer electrode
- Compatible with pick-and-place machines: tape and reel packaging available
- Suitable for reflow and wave soldering
- Low resistance tolerance: ±1% for ERJXG, 1G, 2R, 3E, 6E, 8E, 14, 12, 1T series; ±0.5% for ERJ1R, 2R, 3R, 6R series
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
- AEC-Q200 compliant (except ERJ1R, ERJXG, ERJ1GN)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| RMC1/16SK64R9FTH#C20093365KAMAYA · 0402 | KAMAYA | 0402 | On request | Price on request | Quote | |
| RK73H1ETTP64R9F#C2480259KOA · 0402 | KOA | 0402 | On request | Price on request | Quote | |
| RK73H1ERTTP64R9F#C4300658KOA · 0402 | KOA | 0402 | On request | Price on request | Quote | |
| RMCP0402FT64R9#C6398087SEI(Stackpole Electronics Inc.) · 0402 | SEI(Stackpole Electronics Inc.) | 0402 | On request | Price on request | Quote | |
| CRCW040264R9FKEDHP#C4053335VISHAY · 0402 | VISHAY | 0402 | On request | Price on request | Quote | |
