PANASONICDatasheet (PDF)

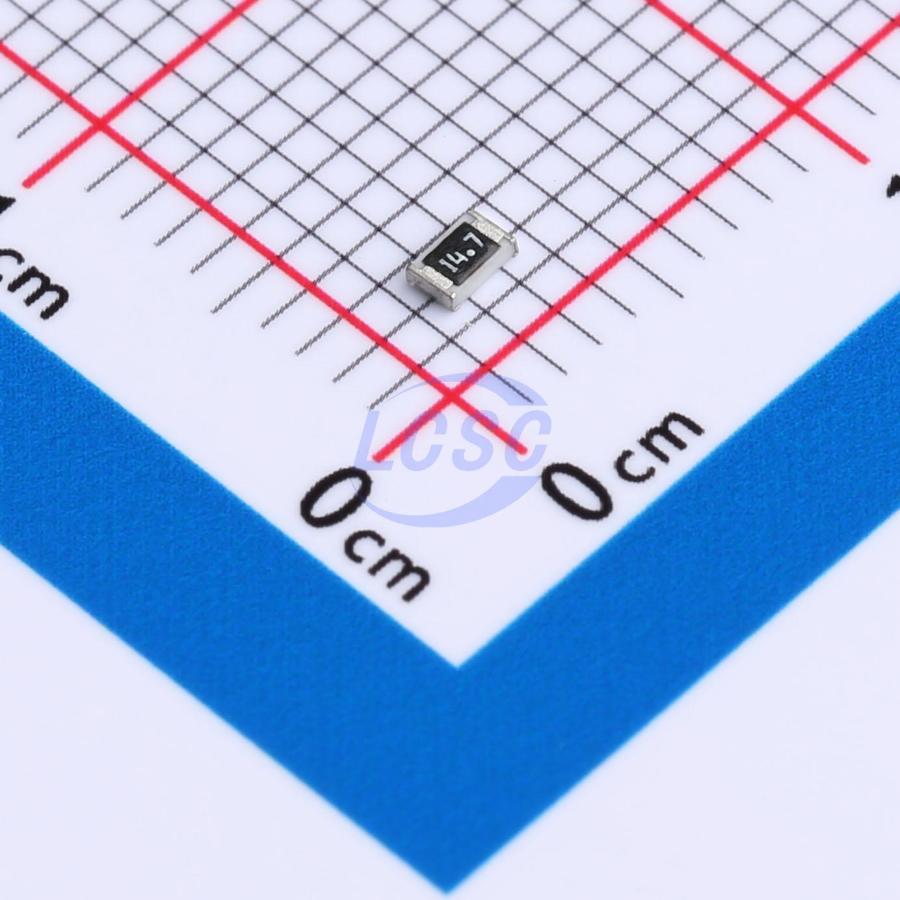

ERJ6ENF14R7V
14.7Ω ±1% 125mW 0805 Thick Film Resistor AEC-Q200
0805ROHS3 CompliantActive
RES 14.7Ω ±1% 125mW 0805
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJ6ENF14R7V
- Store part #
- C2091300
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,300 in stock
#C2091300
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹1.05 | ₹105.00 |
| 1,000+ | ₹0.807 | ₹807.00 |
| 5,000+ | ₹0.6483 | ₹3,241.50 |
| 10,000+ | ₹0.5689 | ₹5,689.00 |
| 50,000+ | ₹0.5027 | ₹25,135.00 |
| 1,00,000+ | ₹0.4631 | ₹46,310.00 |
100 × ₹1.05
₹105.00
excl. GST
₹123.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERJ6ENF14R7V
₹105.00 for 100 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 14.7Ω
- Voltage Rating
- 150V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.031 g
Overview
Key features
- Compact and lightweight
- High reliability: metal glaze thick-film resistive element with triple-layer electrode
- Compatible with pick-and-place machines: tape and reel packaging available
- Suitable for reflow and wave soldering
- Low resistance tolerance: ±1% for ERJXG, 1G, 2R, 3E, 6E, 8E, 14, 12, 1T series; ±0.5% for ERJ1R, 2R, 3R, 6R series
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
- AEC-Q200 compliant (except ERJ1R, ERJXG, ERJ1GN)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RC0805FR-0714R7L#C483011YAGEO · 0805 | YAGEO | 0805 | 100 | ₹0.3308 · 100 in stock | View |
 | RTT0514R7FTP#C103996RALEC · 0805 | RALEC | 0805 | 2,300 | ₹0.3308 · 2,300 in stock | View |
 | AC0805FR-0714R7L#C228313YAGEO · 0805 | YAGEO | 0805 | 2,800 | ₹0.6086 · 2,800 in stock | View |
 | FRC0805F14R7TS#C2933323FOJAN · 0805 | FOJAN | 0805 | 13,500 | ₹0.4498 · 13,500 in stock | View |
 | SCR0805F14R7#C3016900VO · 0805 | VO | 0805 | 4,300 | ₹0.2381 · 4,300 in stock | View |
