PANASONICDatasheet (PDF)
ERJ6ENF6490V

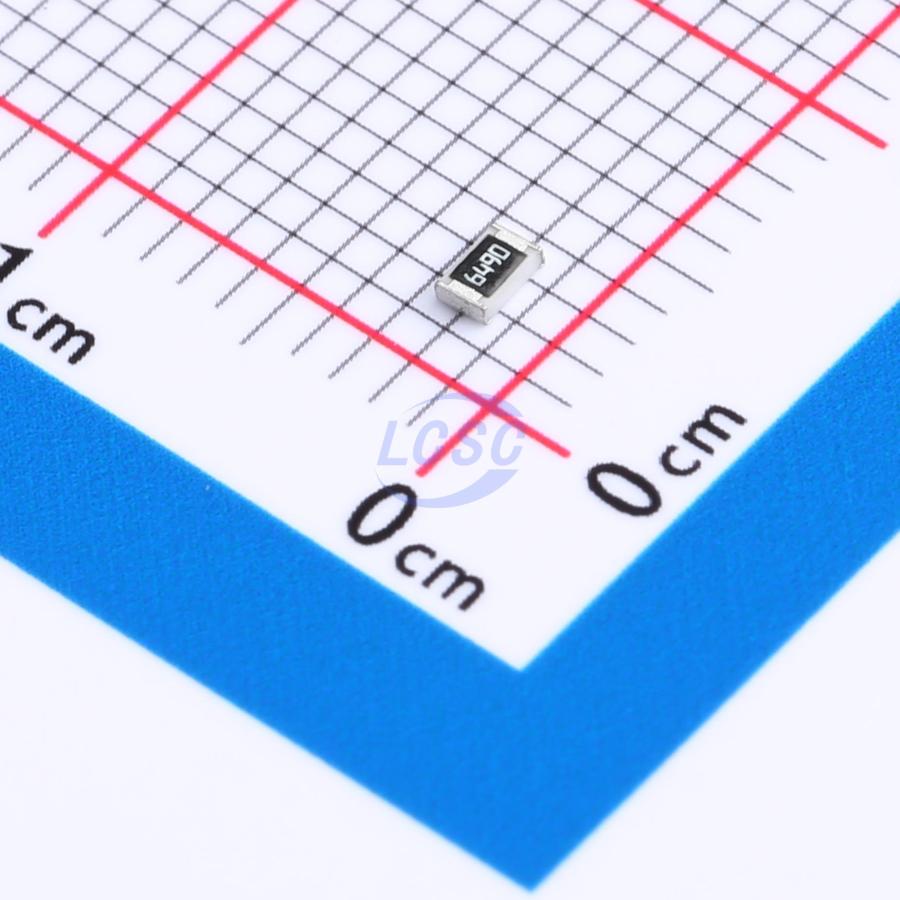

649Ω ±1% 125mW 0805 Thick Film Resistor AEC-Q200
0805ROHS3 CompliantActive
RES 649Ω ±1% 125mW 0805
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJ6ENF6490V
- Store part #
- C2077475
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C2077475
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.03 | ₹51.50 |
| 500+ | ₹0.7938 | ₹396.90 |
| 1,500+ | ₹0.6747 | ₹1,012.05 |
| 5,000+ | ₹0.5689 | ₹2,844.50 |
| 25,000+ | ₹0.5027 | ₹12,567.50 |
| 50,000+ | ₹0.4631 | ₹23,155.00 |
50 × ₹1.03
₹51.50
excl. GST
₹60.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERJ6ENF6490V
₹51.50 for 50 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 649Ω
- Voltage Rating
- 150V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.031 g
Overview
Key features
- Compact and lightweight
- High reliability: metal glaze thick-film resistive element with triple-layer electrode
- Compatible with pick-and-place machines: tape and reel packaging available
- Suitable for reflow and wave soldering
- Low resistance tolerance: ±1% for ERJXG, 1G, 2R, 3E, 6E, 8E, 14, 12, 1T series; ±0.5% for ERJ1R, 2R, 3R, 6R series
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
- AEC-Q200 compliant (except ERJ1R, ERJXG, ERJ1GN)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CRCW0805649RFKEA#C2092005VISHAY · 0805 | VISHAY | 0805 | 7,050 | ₹2.00 · 7,050 in stock | View |
 | CR0805F649RP05Z#C245366EVER OHMS · 0805 | EVER OHMS | 0805 | 50 | ₹0.5689 · 50 in stock | View |
 | 0805W8F6490T5E#C247030UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 4,900 | ₹0.3572 · 4,900 in stock | View |
 | RS-05K6490FT#C322542FH · 0805 | FH | 0805 | 100 | ₹0.2514 · 100 in stock | View |
 | 1RC0805F6490#C54532316SAE · 0805 | SAE | 0805 | 4,600 | ₹0.4631 · 4,600 in stock | View |
