PANASONICDatasheet (PDF)
ERJP06F3903V

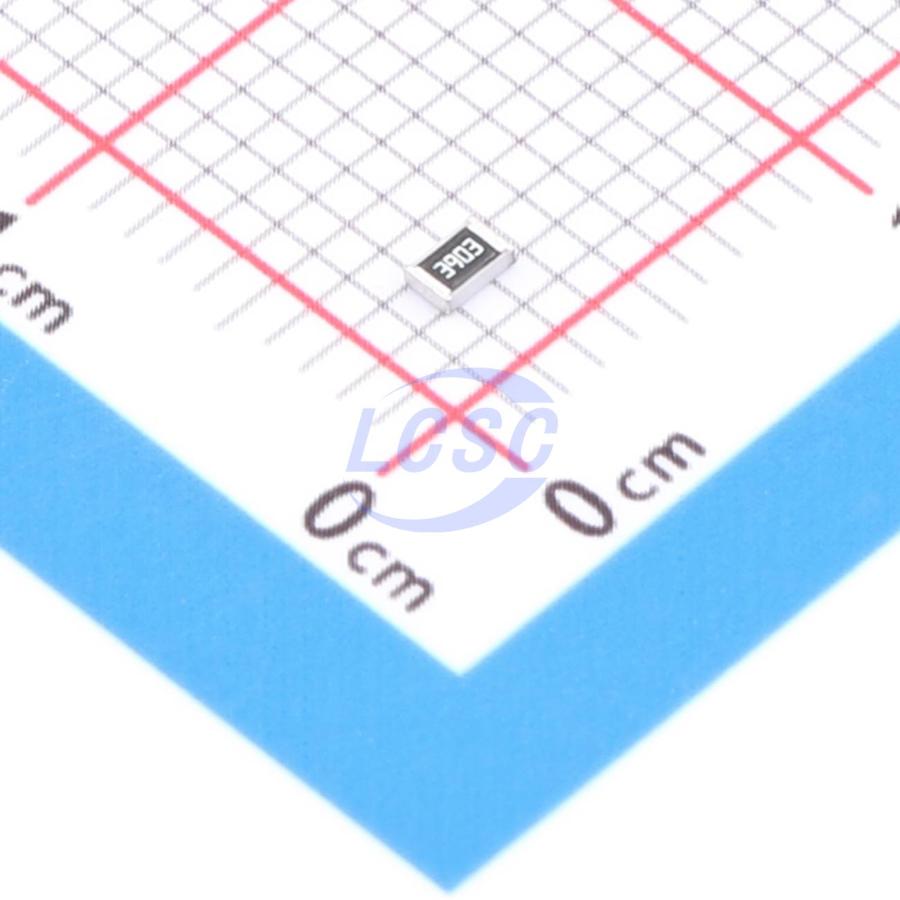

390kΩ ±1% 500mW 0805 Thick Film Resistor AEC-Q200
0805ROHS3 CompliantActive
RES 390kΩ ±1% 500mW 0805
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJP06F3903V
- Store part #
- C543596
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,220 in stock
#C543596
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.27 | ₹65.40 |
| 200+ | ₹2.58 | ₹516.00 |
| 600+ | ₹2.20 | ₹1,320.00 |
| 5,000+ | ₹1.97 | ₹9,850.00 |
| 10,000+ | ₹1.77 | ₹17,700.00 |
| 20,000+ | ₹1.67 | ₹33,400.00 |
20 × ₹3.27
₹65.40
excl. GST
₹77.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERJP06F3903V
₹65.40 for 20 + GST
Specifications
- Power(Watts)
- 500mW
- Resistance
- 390kΩ
- Voltage Rating
- 400V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.029 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SDR10EZPF3903#C20109500ROHM · 0805 | ROHM | 0805 | On request | Price on request | Quote | |
| ERJ-UP6F3903V#C4067062PANASONIC · 0805 | PANASONIC | 0805 | On request | Price on request | Quote | |
| RPC0805FT390K-UP#C6661843SEI(Stackpole Electronics Inc.) · 0805 | SEI(Stackpole Electronics Inc.) | 0805 | On request | Price on request | Quote | |
| ERJ-P06D3903V#C4322456PANASONIC · 0805 | PANASONIC | 0805 | On request | Price on request | Quote | |
| ERJ-P6WF3903V#C3958232PANASONIC · 0805 | PANASONIC | 0805 | On request | Price on request | Quote | |
