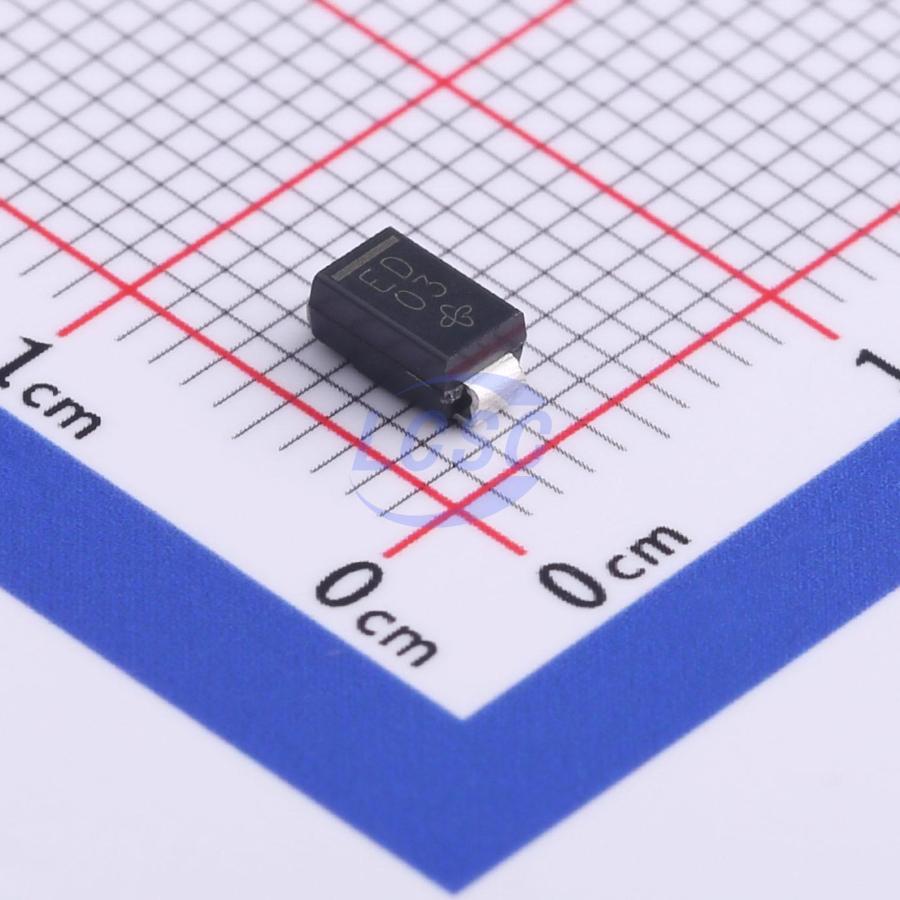

VISHAY

ES1D-E3/5AT

35ns 1 Independent 200V 920mV@1A 1A SMA(DO-214AC) Single Diodes RoHS

SMA(DO-214AC)ROHS3 CompliantActive

Diode 200V 1A SMA(DO-214AC)

Manufacturer: VISHAY
Manufacturer part #: ES1D-E3/5AT
Store part #: C511594
Package / case: SMA(DO-214AC)
Category: Single Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

380 in stock

#C511594

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
5+	₹17.91	₹89.55
50+	₹14.33	₹716.50
150+	₹12.54	₹1,881.00
500+	₹11.19	₹5,595.00
2,500+	₹10.12	₹25,300.00
7,500+	₹9.58	₹71,850.00

Quantity (min 5, multiples of 5)

5 × ₹17.91

₹89.55

excl. GST

₹105.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 7,500 per reel

ES1D-E3/5AT

₹89.55 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Reverse Recovery Time (trr): 35ns
Operating Junction Temperature Range: -55℃~+150℃
Diode Configuration: 1 Independent
Voltage - DC Reverse (Vr) (Max): 200V
Voltage - Forward(Vf@If): 920mV@1A
Reverse Leakage Current (Ir): 5uA@200V
Non-Repetitive Peak Forward Surge Current: 30A
Current - Rectified: 1A

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 7,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.208 g
