DIODESDatasheet (PDF)

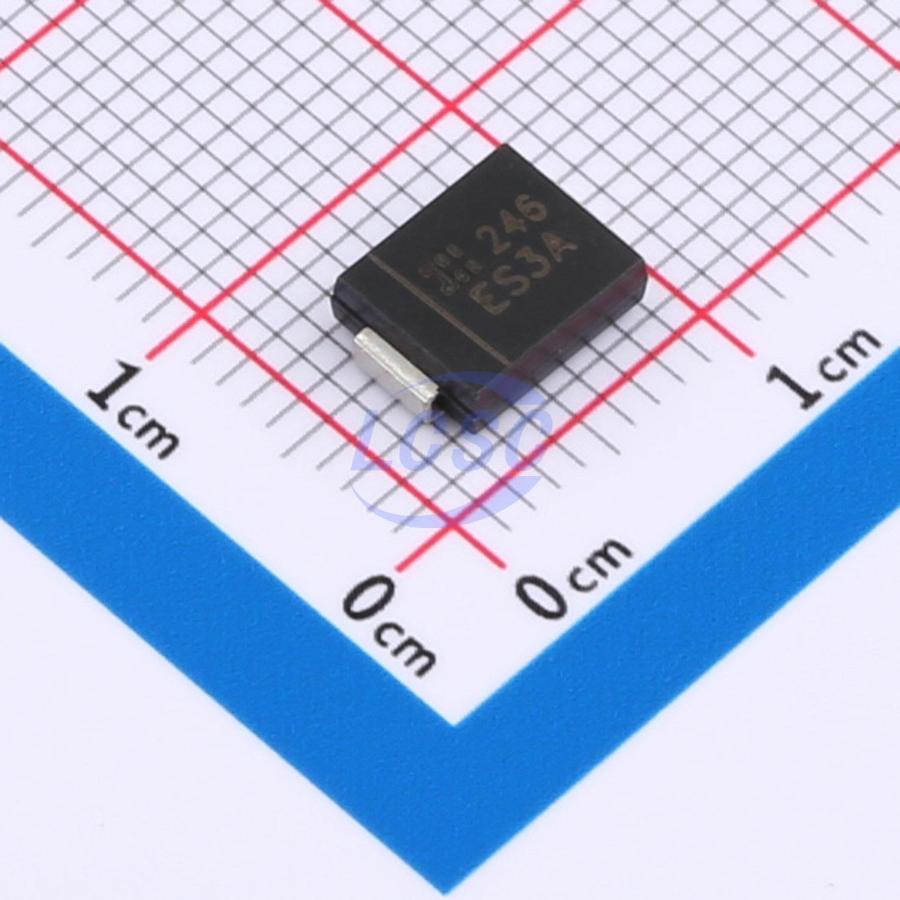

ES3A-13-F
25ns 50V 900mV@3A 3A DO-214AB Single Diodes RoHS
DO-214ABROHS3 CompliantActive
Diode 50V 3A DO-214AB
- Manufacturer
- DIODES
- Manufacturer part #
- ES3A-13-F
- Store part #
- C5126681
- Package / case
- DO-214AB
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C5126681
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.46 | ₹212.30 |
| 50+ | ₹41.86 | ₹2,093.00 |
| 150+ | ₹41.46 | ₹6,219.00 |
| 500+ | ₹41.07 | ₹20,535.00 |
5 × ₹42.46
₹212.30
excl. GST
₹250.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ES3A-13-F
₹212.30 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 25ns
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 50V
- Voltage - Forward(Vf@If)
- 900mV@3A
- Reverse Leakage Current (Ir)
- 10uA@50V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.3 g
