Everest-semi(Everest Semiconductor)Datasheet (PDF)

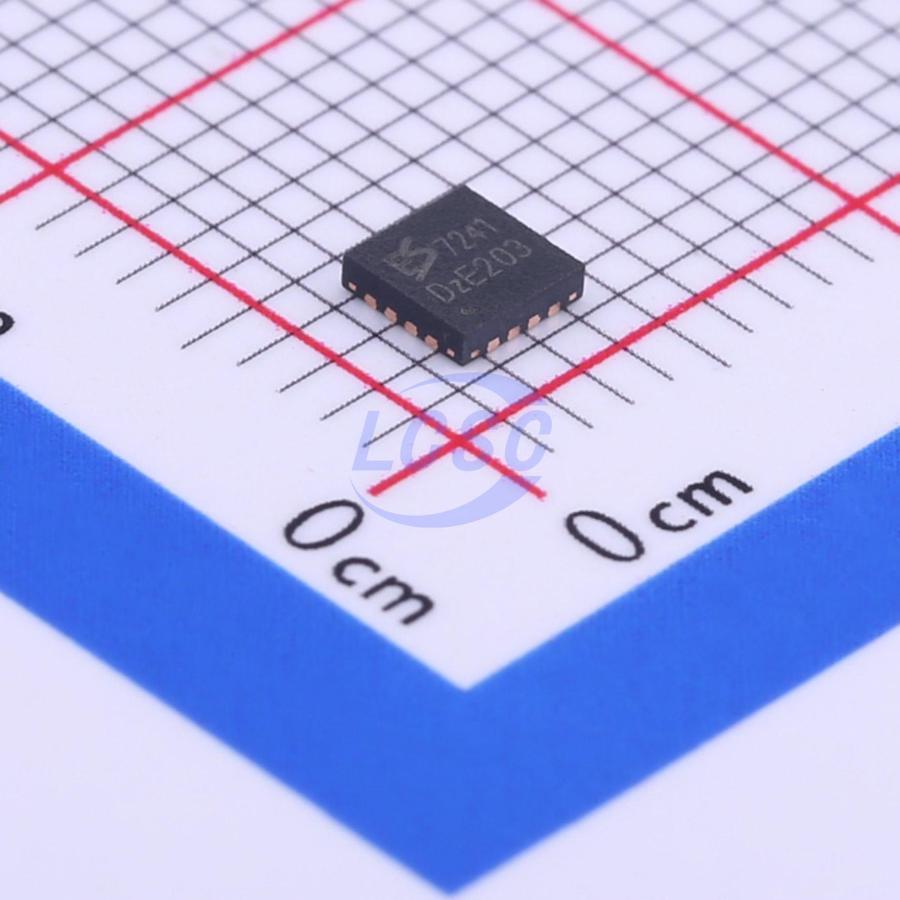

ES7241D
Encoder I2S 8kHz~200kHz QFN-16-EP(3x3) Audio Special Purpose RoHS
QFN-16-EP(3x3)ROHS CompliantActive
High Performance Stereo Audio ADC
- Manufacturer
- Everest-semi(Everest Semiconductor)
- Manufacturer part #
- ES7241D
- Store part #
- C389154
- Package / case
- QFN-16-EP(3x3)
- Category
- Audio Special Purpose
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,180 in stock
#C389154
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.47 | ₹68.47 |
| 10+ | ₹53.91 | ₹539.10 |
| 30+ | ₹47.83 | ₹1,434.90 |
| 100+ | ₹39.99 | ₹3,999.00 |
| 500+ | ₹36.51 | ₹18,255.00 |
| 1,000+ | ₹34.57 | ₹34,570.00 |
1 × ₹68.47
₹68.47
excl. GST
₹80.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ES7241D
₹68.47 for 1 + GST
Specifications
- Type
- Encoder
- Operating Temperature
- -40℃~+85℃
- Features
- Master-slave clock negotiation
- Interface
- I2S
- Resolution (Bits)
- 8kHz~200kHz
- Voltage - Supply
- 1.6V~3.6V;3V~3.6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
Applications
- Soundbar
- Audio Interface
- Digital TV
- A/V Receiver
- DVR
- NVR
Key features
- High performance multi-bit delta-sigma audio ADC
- 100 dB signal to noise ratio
- -85 dB THD+N
- 3 Vpp analog input
- 24-bit, 8 to 200 kHz sampling frequency
- I²S/LJ master or slave serial data port
- 256/384Fs and other non standard audio system clocks
- Low power standby mode
