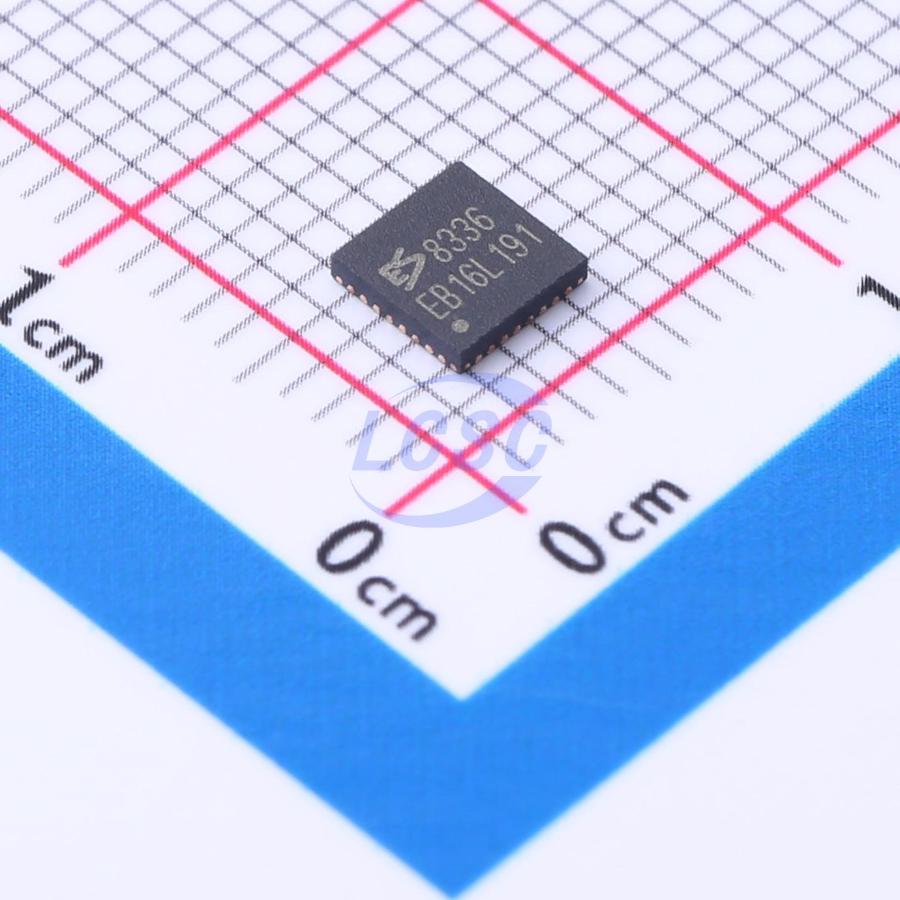

ES8336
2 I2S 1.8V~3.3V QFN-32 ADCs/DACs - Special Purpose RoHS
QFN-32ROHS CompliantActive
Low Power Audio CODEC
- Manufacturer
- Everest-semi(Everest Semiconductor)
- Manufacturer part #
- ES8336
- Store part #
- C5145124
- Package / case
- QFN-32
- Category
- ADCs/DACs - Special Purpose
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,456 in stock
#C5145124
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.01 | ₹96.01 |
| 10+ | ₹85.15 | ₹851.50 |
| 30+ | ₹79.71 | ₹2,391.30 |
| 100+ | ₹74.29 | ₹7,429.00 |
| 500+ | ₹66.26 | ₹33,130.00 |
| 1,000+ | ₹64.51 | ₹64,510.00 |
1 × ₹96.01
₹96.01
excl. GST
₹113.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ES8336
₹96.01 for 1 + GST
Specifications
- Features
- Programmable gain;Low noise front-end;On-chip calibration
- Number of Channels
- 2
- Operating Temperature
- -40℃~+85℃
- Interface
- I2S
- ChipType
- Audio Analog-to-Digital Converter
- Voltage - Supply
- 1.8V~3.3V
- ADC architecture
- Sigma-Delta
- Resolution (Bits)
- 24;96000Hz
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
Applications
- MID/Tablet
- Wireless audio
- Portable audio
Key features
- High performance and low power multi bit delta-sigma audio ADC and DAC
- I2S/PCM master or slave serial data port
- Two pairs of analog input with differential input option
- 256/384Fs and USB 12/24 MHz system clocks
- I²C interface
- 24-bit, 8 to 96 kHz sampling frequency
- 92 dB signal to noise ratio, -85 dB THD+N
- Low noise pre-amplifier
- Auto level control (ALC) and noise gate
- Mic bias Support digital mic
- 24-bit, 8 to 96 kHz sampling frequency
- 93 dB signal to noise ratio, -85 dB THD+N
- Ground centered headphone driver
- Headphone and external mic detection
- Pop and click noise suppression
- 1.8V to 3.3V operation
- 7 mW playback; 16 mW playback and record
