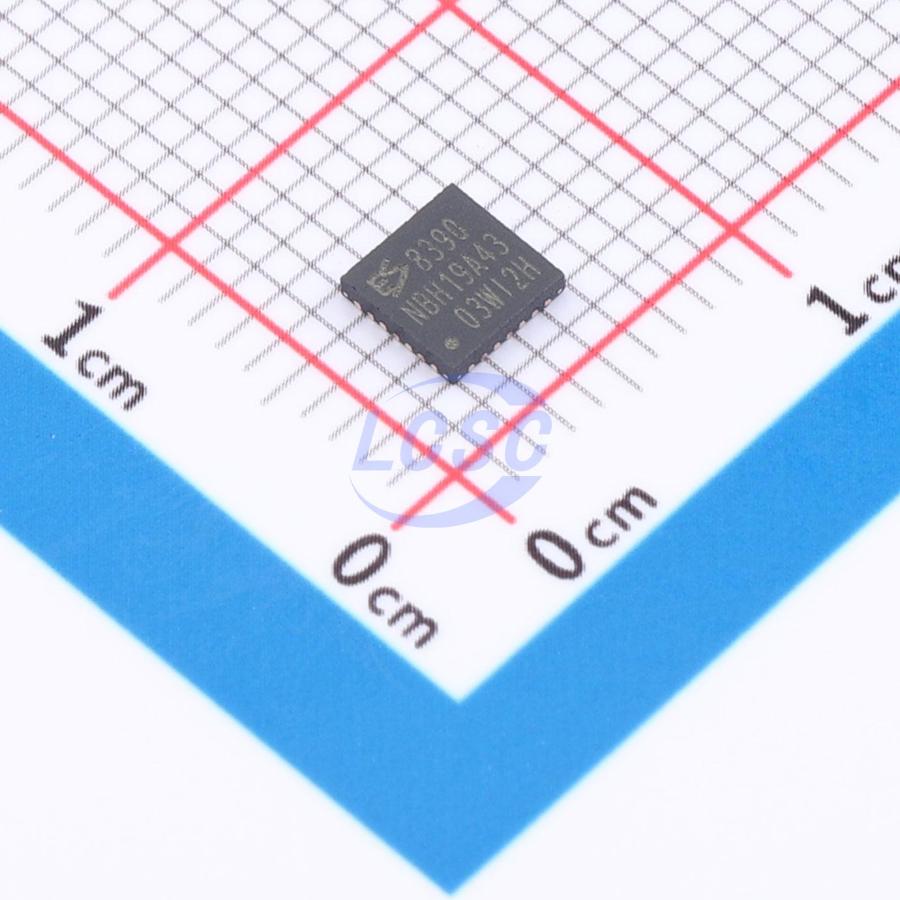

Everest-semi(Everest Semiconductor)Datasheet (PDF)
ES8390
Encoder/decoder 8kHz~192kHz QFN-28(4x4) Audio Special Purpose
QFN-28(4x4)RoHSActive
- Manufacturer
- Everest-semi(Everest Semiconductor)
- Manufacturer part #
- ES8390
- Store part #
- C42405905
- Package / case
- QFN-28(4x4)
- Category
- Audio Special Purpose
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,986 in stock
#C42405905
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹131.18 | ₹131.18 |
| 10+ | ₹106.25 | ₹1,062.50 |
| 30+ | ₹93.67 | ₹2,810.10 |
| 100+ | ₹81.10 | ₹8,110.00 |
| 500+ | ₹73.72 | ₹36,860.00 |
| 1,000+ | ₹69.81 | ₹69,810.00 |
1 × ₹131.18
₹131.18
excl. GST
₹154.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ES8390
₹131.18 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Type
- Encoder/decoder
- Features
- Master-slave clock negotiation;Mute control
- Interface
- I2C;I2S
- Resolution (Bits)
- 8kHz~192kHz
- Voltage - Supply
- 1.6V~3.6V;3V~3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
Applications
- Automotive electronics
- Security surveillance
- General-purpose applications
Key features
- High-performance, low-power multi-bit Δ-Σ audio ADC and DAC
- I²S/PCM master or slave serial data port
- 256/384Fs and USB 12/24 MHz audio system clock
- I²C interface
- Stereo ADC: 24-bit, 8 to 192 kHz sample rate, 101 dB SNR, -90 dB THD+N
- Two pairs of analog inputs with differential input option
- Low-noise preamplifier
- Automatic level control
- Analog and digital microphone support
- Stereo DAC: 24-bit, 8 to 192 kHz sample rate, 110 dB SNR, -85 dB THD+N
- Two pairs of analog outputs with headphone driver and differential output option
- Line input to line output mixing
- Pop and click suppression
- 1.8V to 3.3V operating voltage
- Milliwatt-level playback and recording power consumption
- Low standby current
