ROHMDatasheet (PDF)
ESR03EZPF1R60

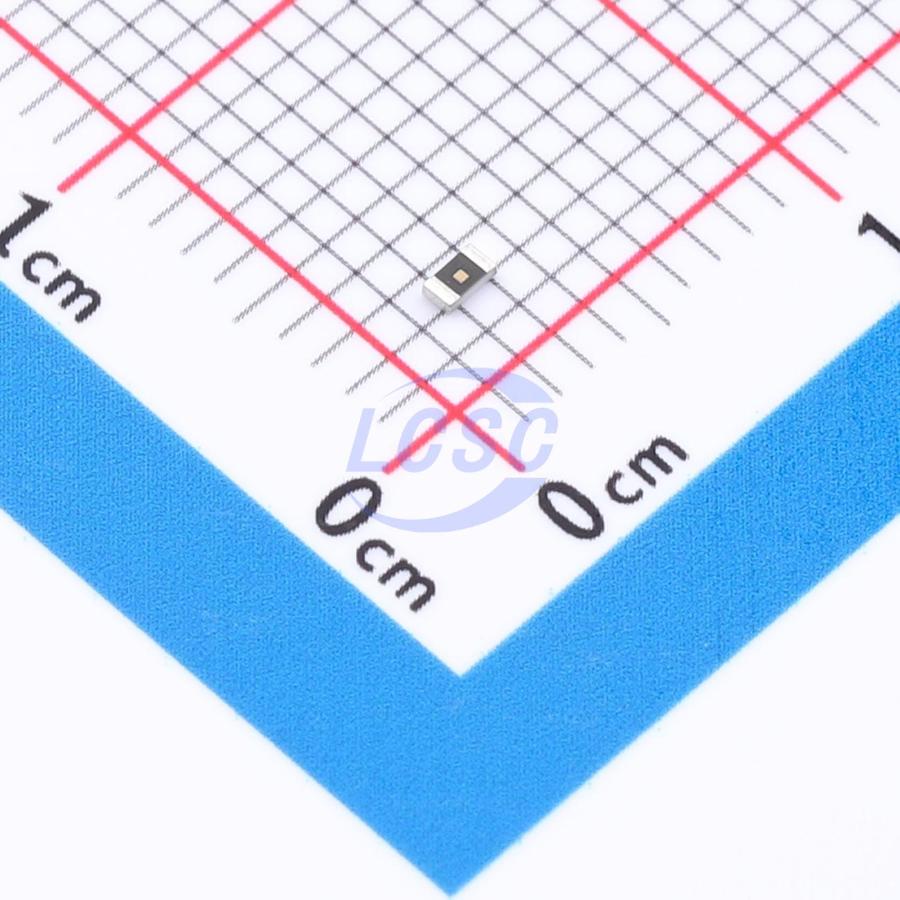

250mW 1.6Ω Thick Film Resistor ±1% ±200ppm/℃ 0603 Chip Resistor - Surface Mount RoHS
0603ROHS3 CompliantActive
RES 1.6Ω ±1% 250mW 0603
- Manufacturer
- ROHM
- Manufacturer part #
- ESR03EZPF1R60
- Store part #
- C4289705
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,800 in stock
#C4289705
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.12 | ₹56.00 |
| 500+ | ₹1.10 | ₹550.00 |
| 1,500+ | ₹1.08 | ₹1,620.00 |
| 5,000+ | ₹1.06 | ₹5,300.00 |
50 × ₹1.12
₹56.00
excl. GST
₹66.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ESR03EZPF1R60
₹56.00 for 50 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 1.6Ω
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±200ppm/℃
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.029 g
Overview
Key features
- Unique resistive element pattern and laser trimming technology significantly improve surge withstand characteristics.
- ESD withstand voltage from 2kV to 5kV.
- Excellent power rating.
- ROHM resistors are ISO9001/IATF16949 certified.
- AEC-Q200 compliant.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| ERJ-3BQF1R6V#C2078470PANASONIC · 0603 | PANASONIC | 0603 | On request | Price on request | Quote | |
| ES03W4F160KT5E#C2772734UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | On request | Price on request | Quote | |
| RMCP0603FT1R60#C6188376SEI(Stackpole Electronics Inc.) · 0603 | SEI(Stackpole Electronics Inc.) | 0603 | On request | Price on request | Quote | |
| RPC0603FT1R60-HP#C7060420SEI(Stackpole Electronics Inc.) · 0603 | SEI(Stackpole Electronics Inc.) | 0603 | On request | Price on request | Quote | |
| SDR03EZPF1R60#C6473063ROHM · 0603 | ROHM | 0603 | On request | Price on request | Quote | |
