ROHMDatasheet (PDF)

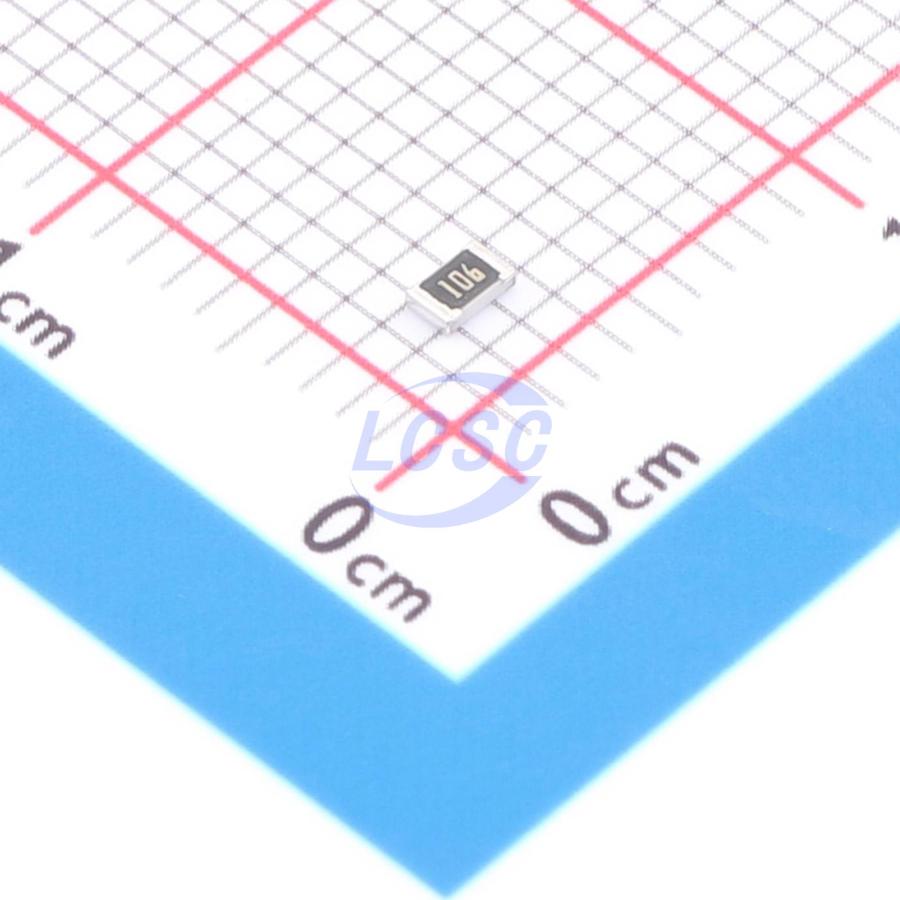

ESR10EZPJ106
400mW 10MΩ Thick Film Resistor ±5% ±200ppm/℃ 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 10MΩ ±5% 400mW 0805
- Manufacturer
- ROHM
- Manufacturer part #
- ESR10EZPJ106
- Store part #
- C4231647
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,550 in stock
#C4231647
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹0.7938 | ₹39.69 |
| 500+ | ₹0.7673 | ₹383.65 |
| 1,500+ | ₹0.7541 | ₹1,131.15 |
| 5,000+ | ₹0.7409 | ₹3,704.50 |
50 × ₹0.7938
₹39.69
excl. GST
₹46.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ESR10EZPJ106
₹39.69 for 50 + GST
Specifications
- Power(Watts)
- 400mW
- Resistance
- 10MΩ
- Type
- Thick Film Resistor
- Tolerance
- ±5%
- Temperature Coefficient
- ±200ppm/℃
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.028 g
Overview
Key features
- Unique resistive element pattern and laser trimming technology significantly improve surge withstand characteristics.
- ESD withstand voltage from 2kV to 5kV.
- Excellent power rating.
- ROHM resistors are ISO9001/IATF16949 certified.
- AEC-Q200 compliant.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| RCS080510M0JNEA#C2086705VISHAY · 0805 | VISHAY | 0805 | On request | Price on request | Quote | |
| CRGS0805J10M#C2082421TE Connectivity · 0805 | TE Connectivity | 0805 | On request | Price on request | Quote | |
| ES0504J0106T5E#C2773211UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | On request | Price on request | Quote | |
| ESR10EZPF1005#C2108693ROHM · 0805 | ROHM | 0805 | On request | Price on request | Quote | |
| RCS080510M0FKEA#C4276997VISHAY · 0805 | VISHAY | 0805 | On request | Price on request | Quote | |
