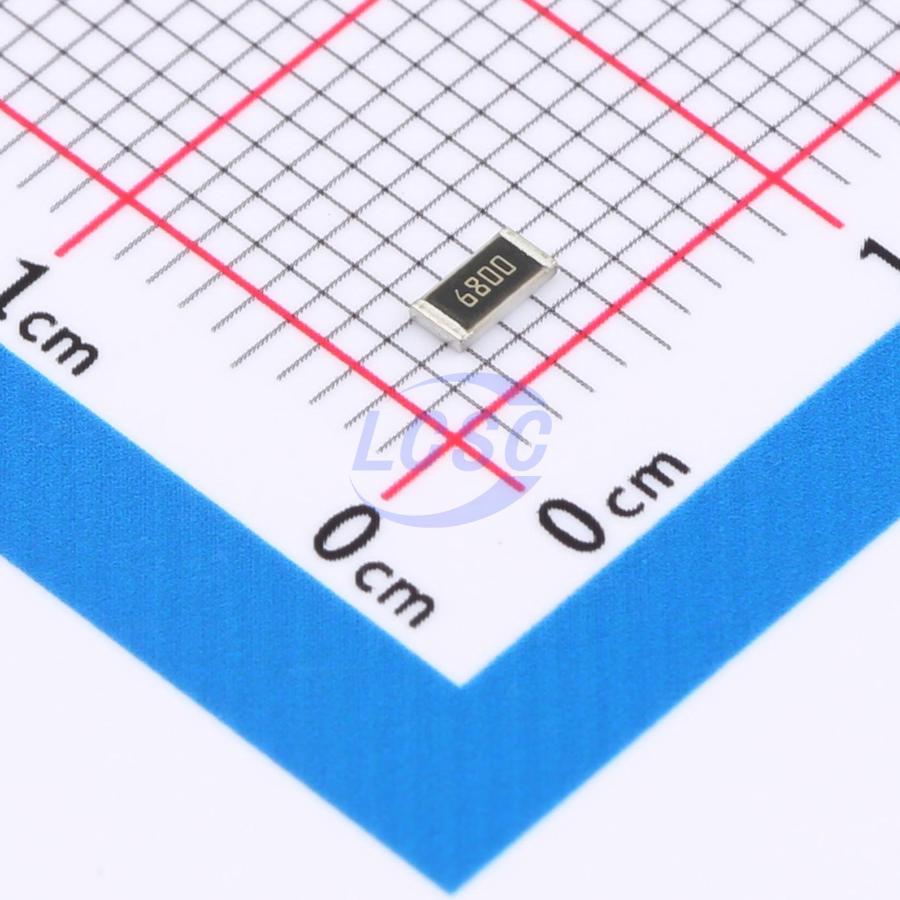

ESR18EZPF6800
680Ω 500mW 200V Thick Film Resistor ±100ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 680Ω ±1% 500mW 1206
- Manufacturer
- ROHM
- Manufacturer part #
- ESR18EZPF6800
- Store part #
- C510114
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,150 in stock
#C510114
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.50 | ₹125.00 |
| 500+ | ₹1.98 | ₹990.00 |
| 1,500+ | ₹1.69 | ₹2,535.00 |
| 5,000+ | ₹1.51 | ₹7,550.00 |
| 25,000+ | ₹1.36 | ₹34,000.00 |
| 50,000+ | ₹1.28 | ₹64,000.00 |
50 × ₹2.50
₹125.00
excl. GST
₹147.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ESR18EZPF6800
₹125.00 for 50 + GST
Specifications
- Resistance
- 680Ω
- Power(Watts)
- 500mW
- Voltage Rating
- 200V
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.028 g
Overview
Key features
- Unique resistive element pattern and laser trimming technology significantly improve surge withstand characteristics.
- ESD withstand voltage from 2kV to 5kV.
- Excellent power rating.
- ROHM resistors are ISO9001/IATF16949 certified.
- AEC-Q200 compliant.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CRCW1206680RFKEAHP#C2078561VISHAY · 1206 | VISHAY | 1206 | 35 | ₹11.35 · 35 in stock | View | |
 | FRP1206F6800TS#C48533685FOJAN · 1206 | FOJAN | 1206 | 3,800 | ₹1.10 · 3,800 in stock | View |
 | RC1206FR-7W680RL#C859162YAGEO · 1206 | YAGEO | 1206 | 14,700 | ₹3.77 · 14,700 in stock | View |
 | ERJ-P08F6800V#C4223948PANASONIC · 1206 | PANASONIC | 1206 | 400 | ₹20.27 · 400 in stock | View |
| RCS1206680RFKEA#C2120538VISHAY · 1206 | VISHAY | 1206 | On request | Price on request | Quote | |
