UMWDatasheet (PDF)

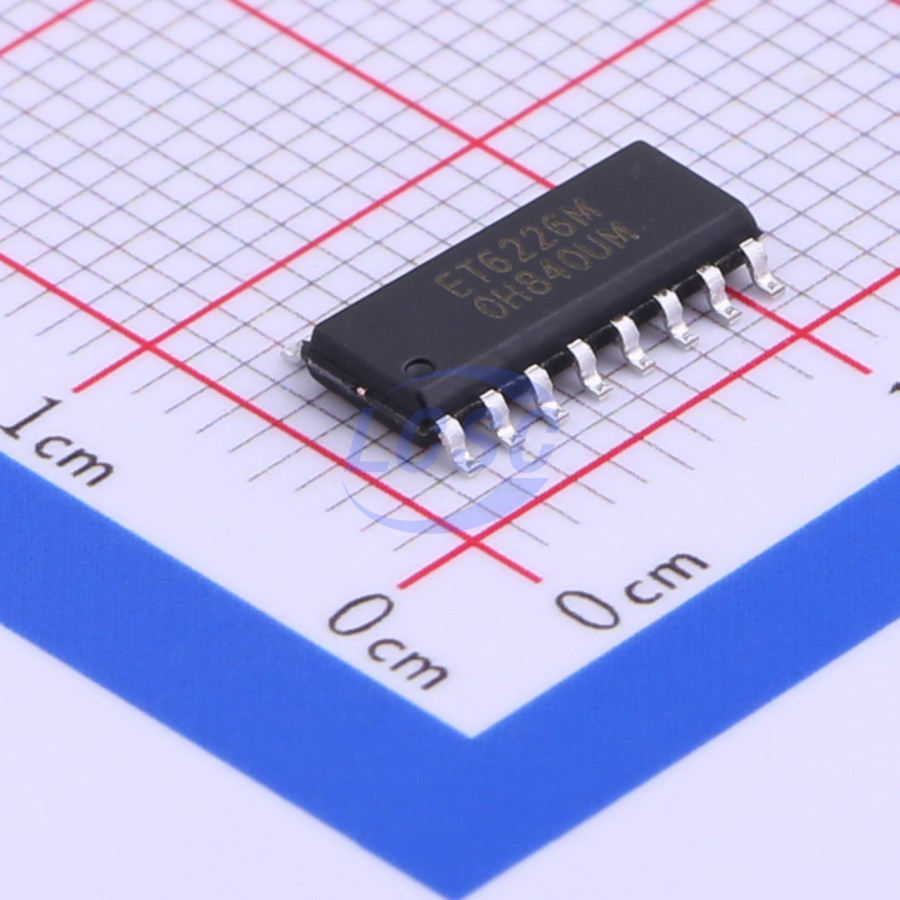

ET6226M
3V~5.5V 2-Wire Serial Interface 25mA 150mA SOP-16 Display Drivers RoHS
SOP-16ROHS3 CompliantActive
Special integrated circuit for LED drive control/keyboard scanning
- Manufacturer
- UMW
- Manufacturer part #
- ET6226M
- Store part #
- C347308
- Package / case
- SOP-16
- Category
- Display Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,370 in stock
#C347308
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.80 | ₹98.00 |
| 100+ | ₹7.77 | ₹777.00 |
| 300+ | ₹6.75 | ₹2,025.00 |
| 1,000+ | ₹5.98 | ₹5,980.00 |
| 4,000+ | ₹4.76 | ₹19,040.00 |
| 8,000+ | ₹4.46 | ₹35,680.00 |
10 × ₹9.80
₹98.00
excl. GST
₹115.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
ET6226M
₹98.00 for 10 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Configuration
- 8 Segment x 4 Digit
- Operating Temperature
- -40℃~+85℃
- Interface
- 2-Wire Serial Interface
- Features
- PWM dimming;Internal reset function
- Quiescent Current (Iq)
- 300uA
- Segment Drive Current
- 25mA
- Digit Drive Current
- 150mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.14 g
Overview
UMW ET6226 is a dedicated LED driver control circuit with an integrated keyboard scan interface. It incorporates MCU digital interface input/output, data latches, LED drivers, keyboard scanning, and brightness adjustment functions. The device offers stable performance, reliable quality, and strong noise immunity, making it suitable for continuous 24-hour long-term operation.
Key features
- Display matrix mode: 8×4 or 7×4
- Segment drive current ≥25 mA, digit drive current ≥150 mA
- 8-level brightness control
- Key scan: 7×4
- High-speed 2-wire serial interface
- Built-in clock oscillator circuit
- Built-in power-on reset circuit
- Supply voltage: 3.0V~5.5V
