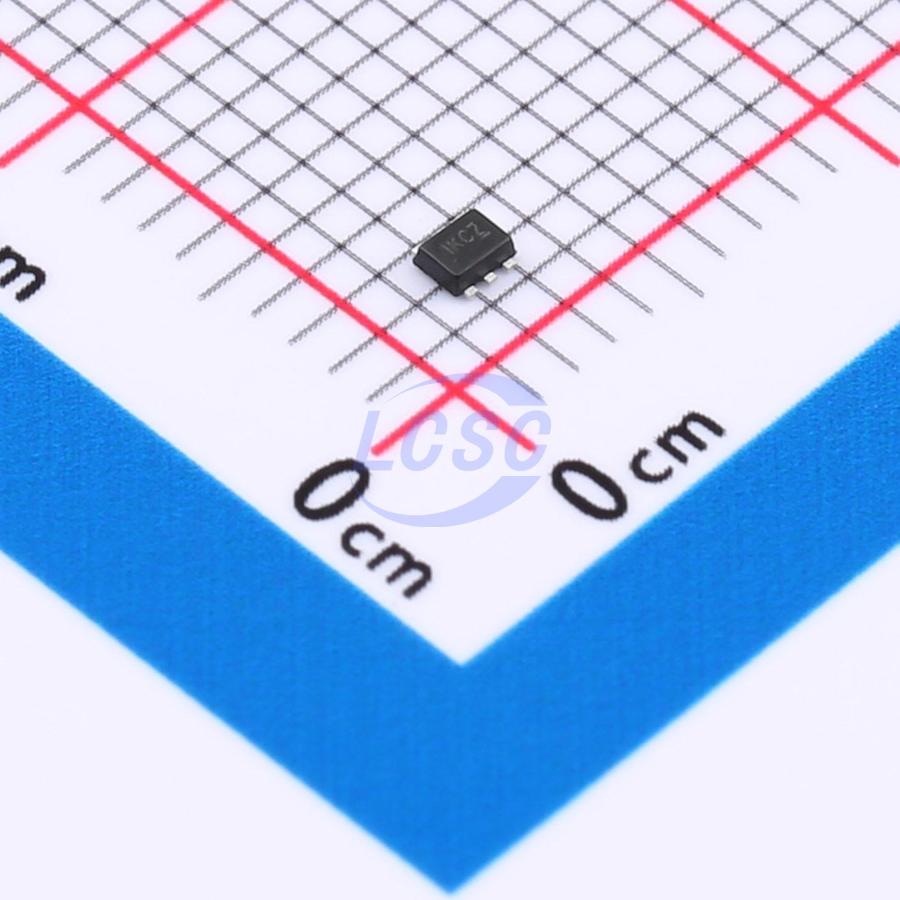

ETA3415S6G
Step-down type 3MHz Adjustable 600mV~6.5V 1A SOT563 Voltage Regulators - DC DC Switching Regulators RoHS
SOT563ROHS CompliantActive
1A, 3MHz Step-Down Converter
- Manufacturer
- etasolution
- Manufacturer part #
- ETA3415S6G
- Store part #
- C7465545
- Package / case
- SOT563
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,005 in stock
#C7465545
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.27 | ₹56.35 |
| 50+ | ₹9.04 | ₹452.00 |
| 150+ | ₹7.91 | ₹1,186.50 |
| 500+ | ₹7.08 | ₹3,540.00 |
| 3,000+ | ₹6.40 | ₹19,200.00 |
| 6,000+ | ₹6.07 | ₹36,420.00 |
5 × ₹11.27
₹56.35
excl. GST
₹66.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA3415S6G
₹56.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 3MHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;EMI optimization (spread spectrum);Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.6V~6.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~6.5V
- Output Current
- 1A
- Quiescent Current
- 20uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
The ETA3415 high efficiency switching regulator is a small, simple, DC-to-DC step-down converter capable of delivering up to 1A of output current. The device operates in pulse-width modulation (PWM) at 3MHz from a 2.6V to 7V input voltage and provides an output voltage from 0.6V to VIN, making the ETA3415 ideal for onboard post-regulation applications. An internal synchronous rectifier improves efficiency and eliminates the typical Schottky free-wheeling diode. Using the on resistance of the internal high-side MOSFET to sense switching currents eliminates current-sense resistors, further improving efficiency and cost.
Applications
- LCD TV
- Set Top Box
- IP CAM
Key features
- Up to 96% Efficiency
- Up to 1A Max Output Current
- 3MHz Switching Frequency
- Light Load operation
- Internal Compensation
- SOT563 Package
- DFN1.6x1.6-6 Package
- RoHS Compliant
