etasolution

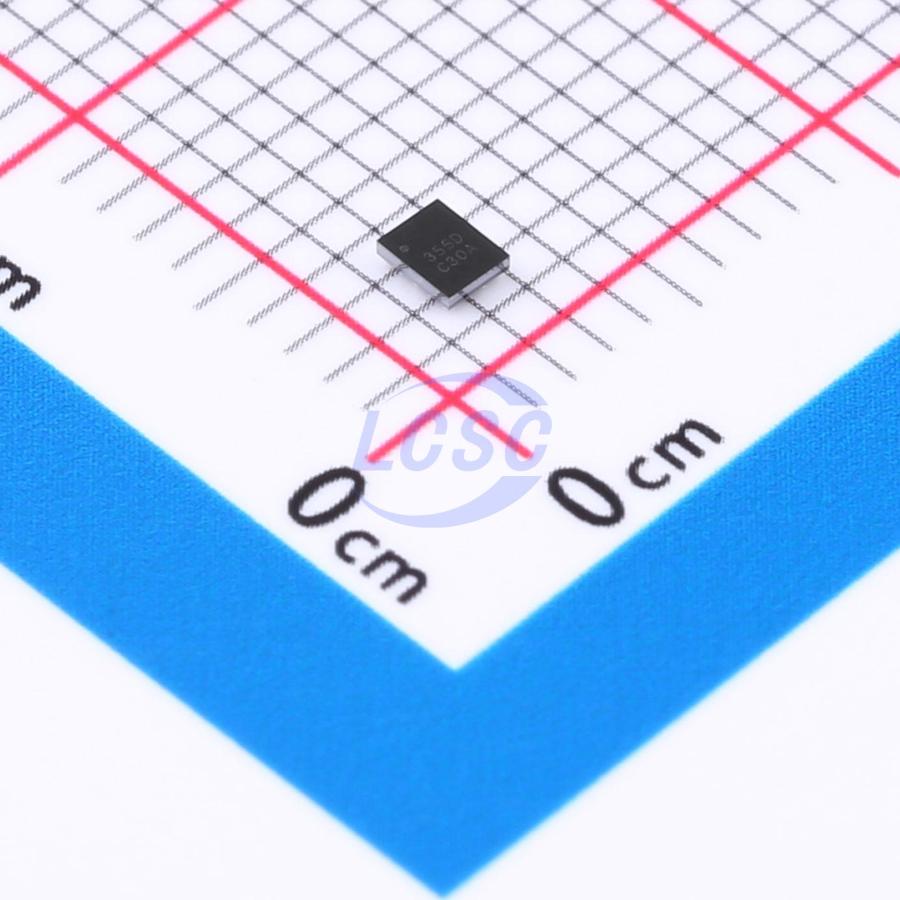

ETA355DCSU

Step-down type 1.56MHz~2.25MHz Adjustable 603mV~1.40625V 5A CSP-20 Voltage Regulators - DC DC Switching Regulators RoHS

CSP-20ROHS CompliantActive

5A, I²C Controlled Output Synchronous Step-Down Converter

Manufacturer: etasolution
Manufacturer part #: ETA355DCSU
Store part #: C7465542
Package / case: CSP-20
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,415 in stock

#C7465542

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹63.29	₹316.45
50+	₹52.34	₹2,617.00
150+	₹47.64	₹7,146.00
500+	₹41.78	₹20,890.00
3,000+	₹39.17	₹1,17,510.00
6,000+	₹37.61	₹2,25,660.00

Quantity (min 5, multiples of 5)

5 × ₹63.29

₹316.45

excl. GST

₹373.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ETA355DCSU

₹316.45 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Function: Step-down type
Frequency - Switching: 1.56MHz~2.25MHz
Number of Outputs: 1
Features: Dynamic voltage scaling;Cycle-by-cycle current limiting;Hiccup current limiting;Output discharge;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 603mV~1.40625V
Output Current: 5A
Quiescent Current: 55uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.041 g

Overview

The ETA355D is a high-efficiency, DC-to-DC step-down switching regulator, capable of delivering up to 5A of pulse load. It integrates an I²C interface that dynamically scales the output voltages on demand. The DCDC control block belongs to a new breed of high frequency synchronous Step-Down converter that combines the advantages of voltage mode control and Constant-On-Time control. Its adaptive Constant-On-Time control dynamically changes switch on time to achieve a constant switching frequency. It does not have the minimum on-time constrain normally a fixed-frequency current mode Step-down requires, allowing it to go down to very low duty ratio without affecting loop stability. The voltage mode nature also provides a more superior load transient response and a seamless transition from PFM to PWM modes. Cycle-by-cycle current limit provides output short-circuit protection and an input OVP function guards ETA355D against possible input voltage surge. ETA355D is housed in a 2mm x 1.6mm CSP-20 Package.
