etasolution

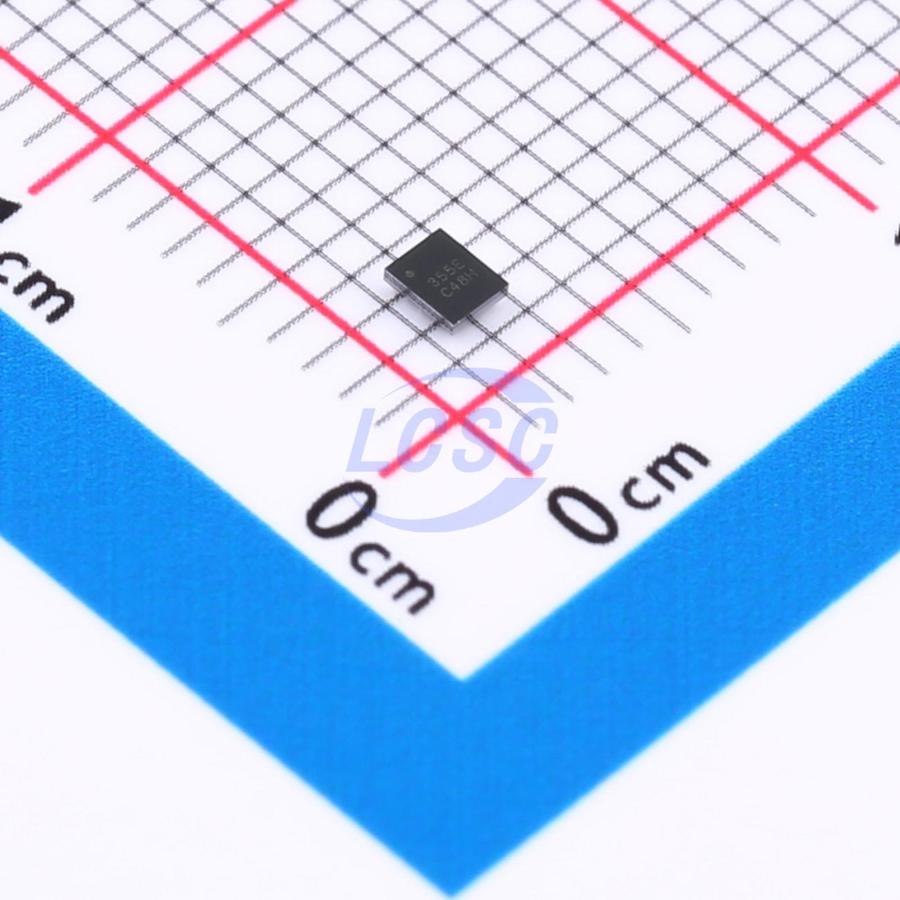

ETA355ECSU

Step-down type 2MHz Adjustable 600mV~1.23V 5A CSP-20 Voltage Regulators - DC DC Switching Regulators RoHS

CSP-20ROHS CompliantActive

5A, I2C Controlled Output Synchronous Step-Down Converter

Manufacturer: etasolution
Manufacturer part #: ETA355ECSU
Store part #: C7465548
Package / case: CSP-20
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,475 in stock

#C7465548

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹61.27	₹306.35
50+	₹50.66	₹2,533.00
150+	₹46.12	₹6,918.00
500+	₹40.44	₹20,220.00
3,000+	₹37.92	₹1,13,760.00
6,000+	₹36.41	₹2,18,460.00

Quantity (min 5, multiples of 5)

5 × ₹61.27

₹306.35

excl. GST

₹361.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ETA355ECSU

₹306.35 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Function: Step-down type
Frequency - Switching: 2MHz
Number of Outputs: 1
Features: Dynamic voltage scaling;Cycle-by-cycle current limiting;Hiccup current limiting;Output discharge;Light load efficient mode;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~1.23V
Output Current: 5A
Quiescent Current: 55uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.041 g

Overview

The ETA355E is a high-efficiency, DC-to-DC step-down switching regulator, capable of delivering 5A load, up to 6.5A of pulse load. It integrates an I2C interface that dynamically scales the output voltages on demand. The DCDC control block belongs to a new breed of high frequency synchronous Step-Down converter that combines the advantages of voltage mode control and Constant-On-Time control. Its adaptive Constant-OnTime control dynamically changes switch on time to achieve a constant switching frequency. It does not have the minimum on-time constrain normally a fixedfrequency current mode Step-down requires, allowing it to go down to very low duty ratio without affecting loop stability. The voltage mode nature also provides a more superior load transient response and a seamless transition from PFM to PWM modes. Cycle-by-cycle current limit provides output short-circuit protection and an input OVP function guards ETA355E against possible input voltage surge.
