etasolutionDatasheet (PDF)

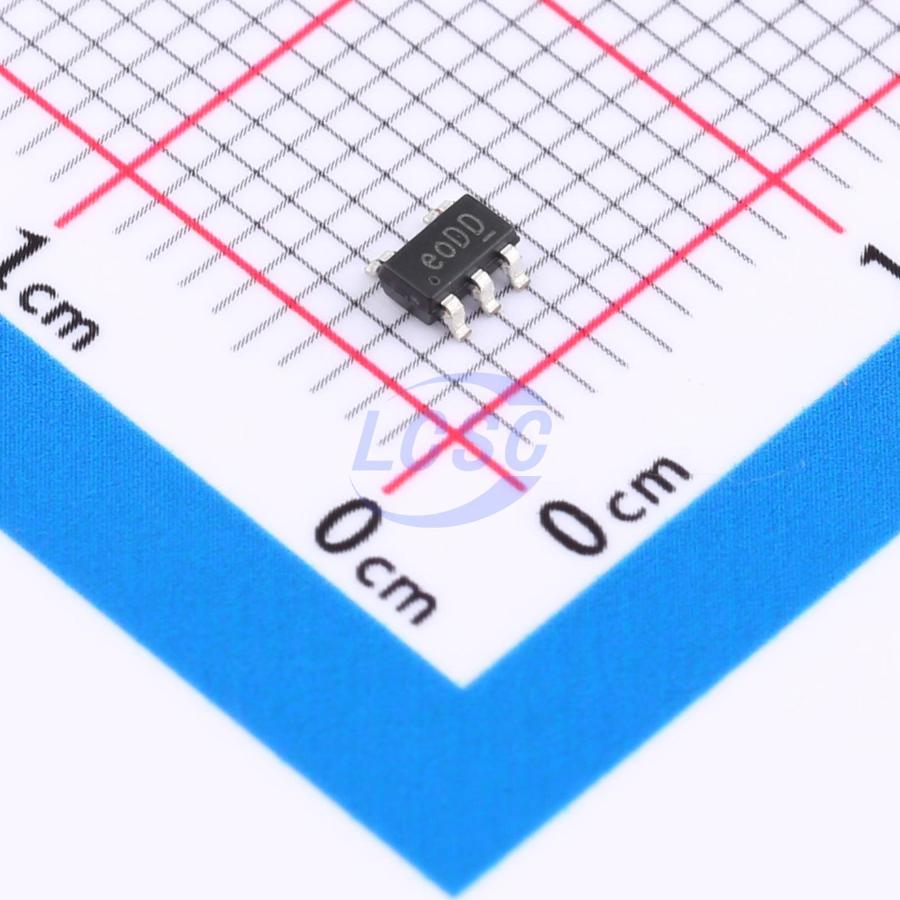

ETA5041V330DS2F
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5ROHS CompliantActive
45V Input Voltage, 2.5uA Ultra-low lq, 300mA LDO
- Manufacturer
- etasolution
- Manufacturer part #
- ETA5041V330DS2F
- Store part #
- C46682367
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,205 in stock
#C46682367
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.65 | ₹128.25 |
| 50+ | ₹20.03 | ₹1,001.50 |
| 150+ | ₹17.62 | ₹2,643.00 |
| 500+ | ₹14.62 | ₹7,310.00 |
| 3,000+ | ₹13.28 | ₹39,840.00 |
| 6,000+ | ₹12.48 | ₹74,880.00 |
5 × ₹25.65
₹128.25
excl. GST
₹151.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA5041V330DS2F
₹128.25 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 45V
- Features
- Enable control;Input under-voltage protection;Short Circuit Protection;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
ETA5041 is an LDO linear regulator with an ultra-low standby current as low as 2.5μA. It withstands input voltages up to 48V and delivers 300mA output current. The device supports fixed or adjustable output voltage with a wide input voltage range of 3V to 45V. It also features short-circuit protection, undervoltage lockout, and thermal shutdown. These characteristics make the ETA5041 an ideal power solution for low-power applications such as IoT, portable, and multi-cell battery-powered systems. The ETA5041 is available in SOT23-5 or ESOP8 packages.
Applications
- Portable devices
- Multi-cell battery-powered systems
- NB-IoT modules
Key features
- Wide input voltage range: 3V to 45V
- Ultra-low quiescent current: 2.5μA
- 300mA output current
- Stable with ceramic capacitors larger than 1μF
- High PSRR: 70dB at 1KHz
- Integrated thermal protection and current limiting
- Lead-free, RoHS and REACH compliant
- Halogen-free, "Green" device
