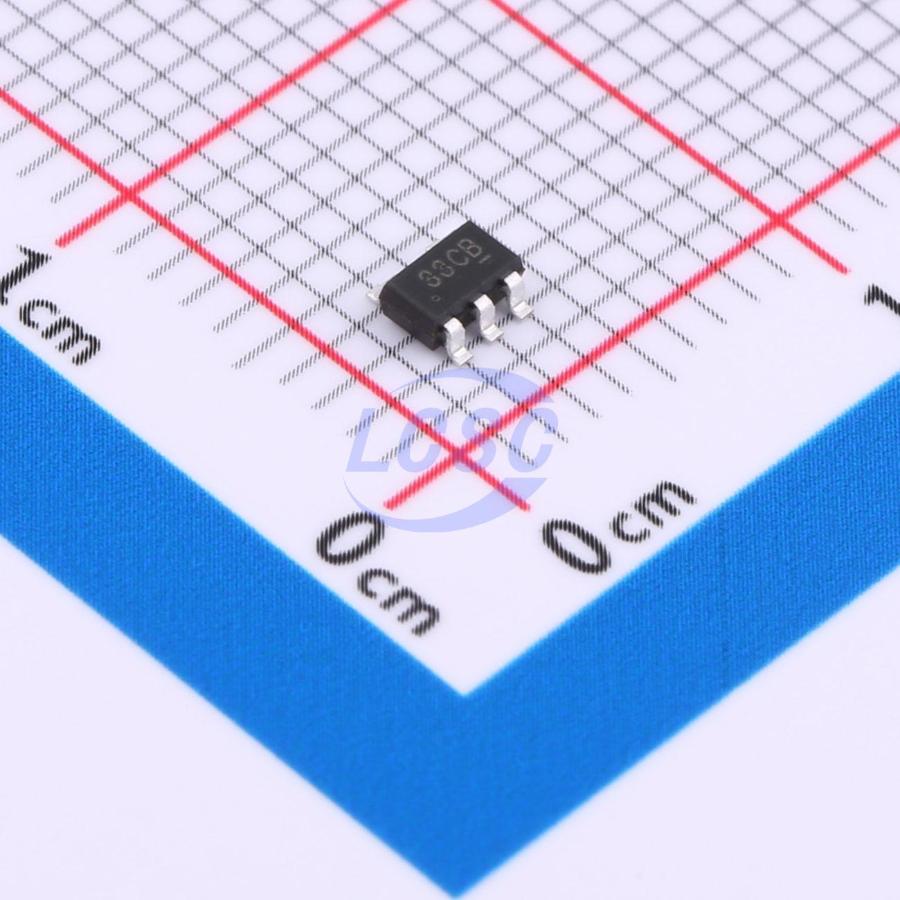

ETA5050V33S2F
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
500mA Low Noise, High PSRR Fast Transient Response LDO with Fixed Output Voltage
- Manufacturer
- etasolution
- Manufacturer part #
- ETA5050V33S2F
- Store part #
- C7465498
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,360 in stock
#C7465498
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.09 | ₹101.80 |
| 200+ | ₹3.98 | ₹796.00 |
| 600+ | ₹3.36 | ₹2,016.00 |
| 3,000+ | ₹2.99 | ₹8,970.00 |
| 9,000+ | ₹2.66 | ₹23,940.00 |
| 21,000+ | ₹2.49 | ₹52,290.00 |
20 × ₹5.09
₹101.80
excl. GST
₹120.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA5050V33S2F
₹101.80 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 37uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 6V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.04 g
Overview
ETA5050 is a fixed output, 500mA low noise and fast transient response low-dropout (LDO) linear voltage regulator with high power-supply rejection ratio (PSRR). Its PSRR can be as high as 70dB with quiescent current is about 35uA. Therefore, ETA5050 is an ideal power supply for noise-sensitive applications such as RF transmissions, cellphones, CMOS sensors and audios etc. ETA5050 is consists of a precise voltage reference, an error amplifier, a compensation network and a low ON-resistance power P-MOSFET. It also integrates many protection circuitries like current limit and over-temperature protection module. ETA5050 is in a tiny SOT2-5 package
Applications
- Set-Top Box
- Cellphone
- Security Camera
Key features
- 500mA output current
- Minimum output voltage as low as 1.0V
- 0.24V dropout voltage for 200mA at Vout = 3.3V
- Low quiescent current 40uA
- <1uA shutdown current
- Excellent Load and Line Transient Response
- High PSRR, 70dB
- Stable with a Wide Range of Ceramic Capacitor
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ETA5055V330DS2F#C22362747etasolution · SOT-23-5 | etasolution | SOT-23-5 | 34,350 | ₹8.96 · 34,350 in stock | View |
