etasolutionDatasheet (PDF)

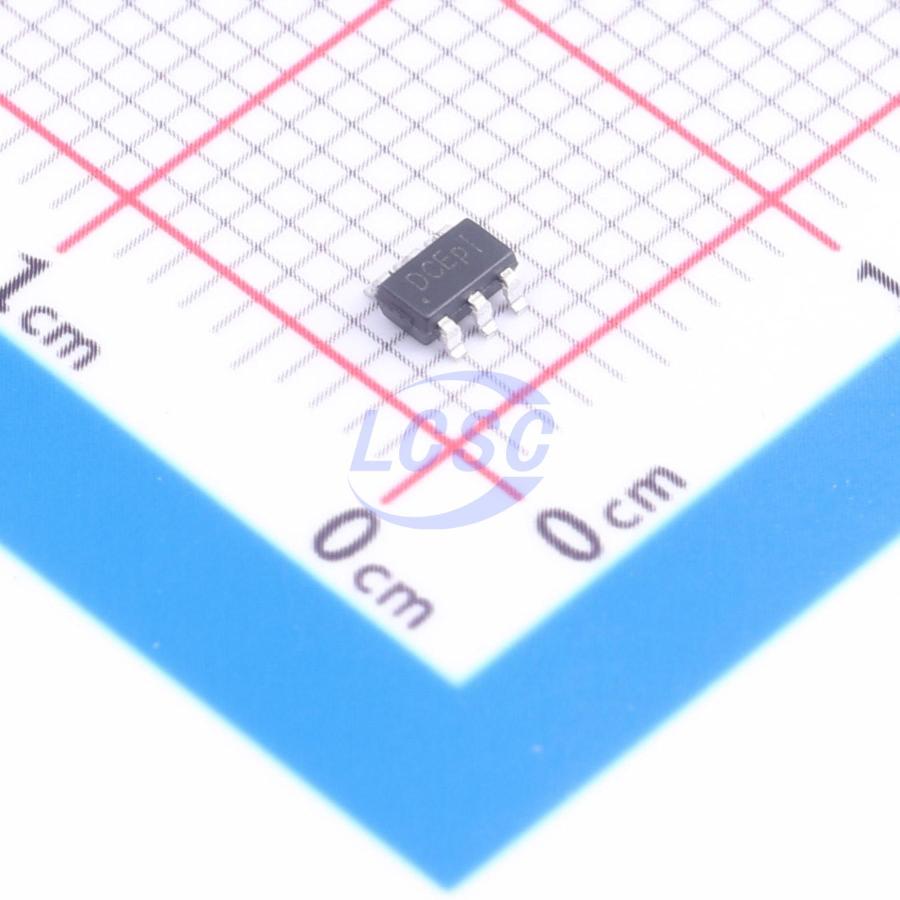

ETA5052V0S2G
Linear Voltage Regulator IC Positive Adjustable 1 Output 300mA SOT-23-6
SOT-23-6ROHS CompliantActive
80dB PSRR, Low Noise, RF, 300mA LDO
- Manufacturer
- etasolution
- Manufacturer part #
- ETA5052V0S2G
- Store part #
- C46682829
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,620 in stock
#C46682829
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.83 | ₹149.15 |
| 50+ | ₹23.35 | ₹1,167.50 |
| 150+ | ₹20.59 | ₹3,088.50 |
| 500+ | ₹17.12 | ₹8,560.00 |
| 3,000+ | ₹15.58 | ₹46,740.00 |
| 6,000+ | ₹14.66 | ₹87,960.00 |
5 × ₹29.83
₹149.15
excl. GST
₹176.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA5052V0S2G
₹149.15 for 5 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 170uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Input under-voltage protection;Output discharge;Over Current Protection;Noise bypass terminal;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
ETA5052 is a low-dropout, low-power linear regulator featuring high PSRR, ultra-low noise, fast startup, and excellent line and load transient response. PSRR reaches up to 80dB, and with a 2.8V output and a 0.1μF bypass capacitor, output voltage noise can be as low as 30μV<sub>RMS</sub>. As a result, the ETA5052 is an ideal power supply for noise-sensitive applications such as RF transmission, mobile phones, CMOS sensors, and audio equipment. The ETA5052 output voltage is adjustable via external feedback resistors, and it is available in a SOT23-6 package.
Applications
- RF Power
- Sensors
- Audio
Key features
- High PSRR: 80dB at 10Hz, 70dB at 10kHz
- Low noise: 30μVRMS
- Stable with ceramic capacitors over a wide range greater than 1μF
- Excellent load and line transient response
- Ultra-low dropout voltage
- 300mA output current
