etasolutionDatasheet (PDF)

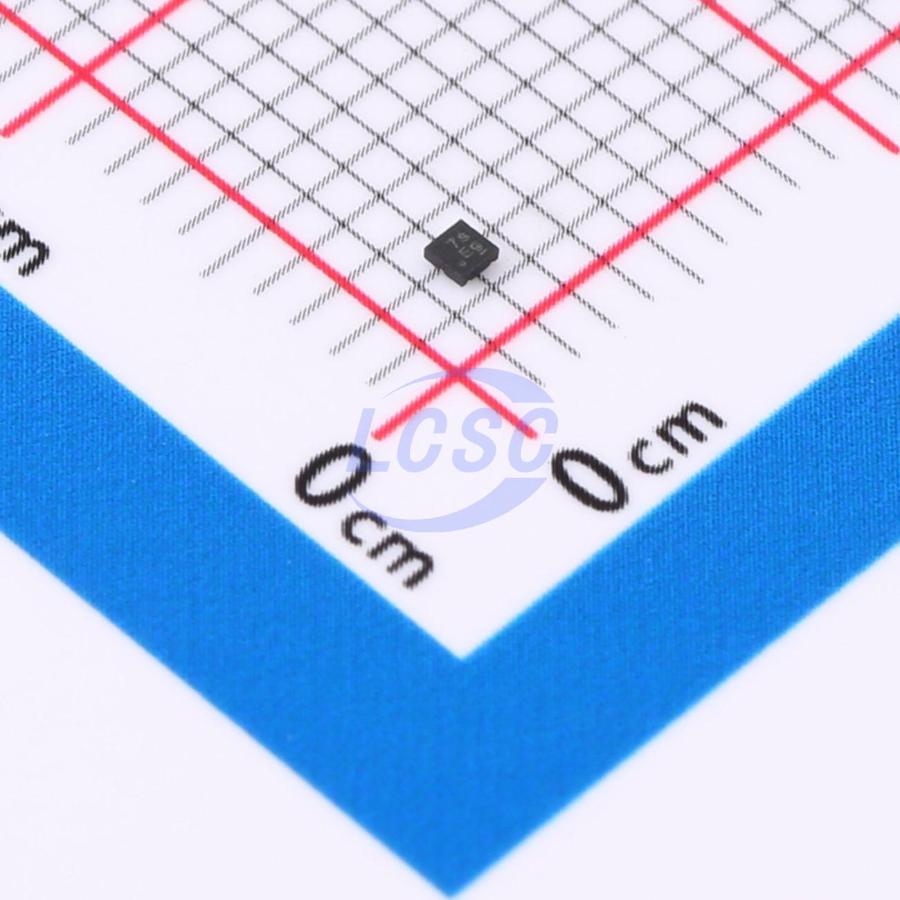

ETA5053V280DF1E
2.8V Positive Fixed DFN1x1-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN1x1-4ROHS CompliantActive
70dB PSRR, Low Noise, Fast Response 300mA LDO in DFN1x1 and SOT23-5
- Manufacturer
- etasolution
- Manufacturer part #
- ETA5053V280DF1E
- Store part #
- C7465529
- Package / case
- DFN1x1-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,180 in stock
#C7465529
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹7.82 | ₹39.10 |
| 50+ | ₹6.87 | ₹343.50 |
| 150+ | ₹6.39 | ₹958.50 |
| 500+ | ₹6.03 | ₹3,015.00 |
| 2,500+ | ₹5.76 | ₹14,400.00 |
| 5,000+ | ₹5.61 | ₹28,050.00 |
5 × ₹7.82
₹39.10
excl. GST
₹46.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ETA5053V280DF1E
₹39.10 for 5 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 35uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 300mA
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.015 g
Overview
ETA5053 is a fixed output, low-dropout (LDO) low-power linear voltage regulator features high power-supply rejection ratio (PSRR), ultra-low noise, fast start-up, and excellent line and load transient responses. Its PSRR can be as high as 70dB with quiescent current is about 35uA. Therefore, ETA5053 is an ideal power supply for noise-sensitive applications such as RF transmissions, cellphones, CMOS sensors and audios etc. ETA5053 is available in DFN1x1 and SOT23-5.
Applications
- Cellphone
- Security Camera
- Set-Top Box
Key features
- High PSRR, 70dB
- 300mA Output Current
- Stable with a Wide Range of Ceramic Capacitor
- Excellent Load and Line Transient Response
- 0.24V Dropout Voltage for 200mA at Vout = 3.3V
- 35uA Iq
