etasolutionDatasheet (PDF)

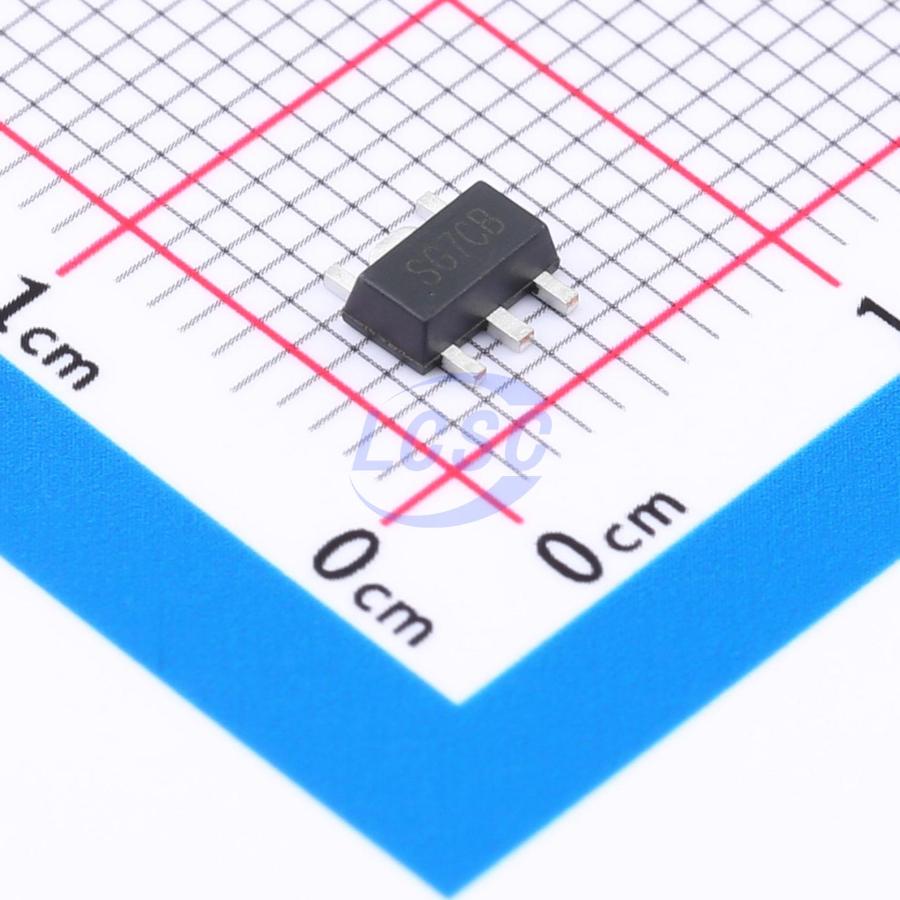

ETA5060V330S8F
3.3V Positive Fixed SOT89-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT89-5ROHS CompliantActive
1A, Low IQ, High Accuracy, Fast Transient LDO Voltage Regulator
- Manufacturer
- etasolution
- Manufacturer part #
- ETA5060V330S8F
- Store part #
- C7465551
- Package / case
- SOT89-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,420 in stock
#C7465551
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.44 | ₹137.20 |
| 50+ | ₹20.94 | ₹1,047.00 |
| 150+ | ₹18.16 | ₹2,724.00 |
| 1,000+ | ₹14.69 | ₹14,690.00 |
| 2,000+ | ₹13.15 | ₹26,300.00 |
| 5,000+ | ₹12.21 | ₹61,050.00 |
5 × ₹27.44
₹137.20
excl. GST
₹161.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ETA5060V330S8F
₹137.20 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 20uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Enable control;Built-in soft-start;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.212 g
Overview
ETA5060 is a low dropout (LDO) voltage regulator capable of sourcing 1A with only 140mV of dropout. ETA5060 output is adjustable with external resistors from 0.8V to 5V. ETA5060 wide input-voltage range supports operation as low as 1.8V and up to 5.5V. ETA5060 is designed to have high accuracy, 2% at output voltage over line, load, and temperature. And ETA5060 soft-start capabilities to reduce inrush current. ETA5060 is ideal for powering sensitive analog low-voltage devices. ETA5060 is available in SOT89-5, DFN1.2x1.6-8, DFN2x2-6 and DFN2x2-8.
Applications
- USB Ports and Hubs
- Digital TVs
- Set-Top Boxes
- VOIP Phones
Key features
- Programmable Output Voltage Configuration
- High Accuracy Output Voltage: ±2%
- Wide Input Voltage Range: 1.8V to 5.5V
- Wide Output Voltage Range: 0.8V to 5V
- Low Power Consumption: 20μA quiescent current
- Low Dropout: 140mV at 1A
- Fast Transient Response
- Stable with Small 1μF Capacitor
- Inrush Current Protection
- Available in SOT89-5, DFN1.2x1.6-8, DFN2x2-6, and DFN2x2-8
