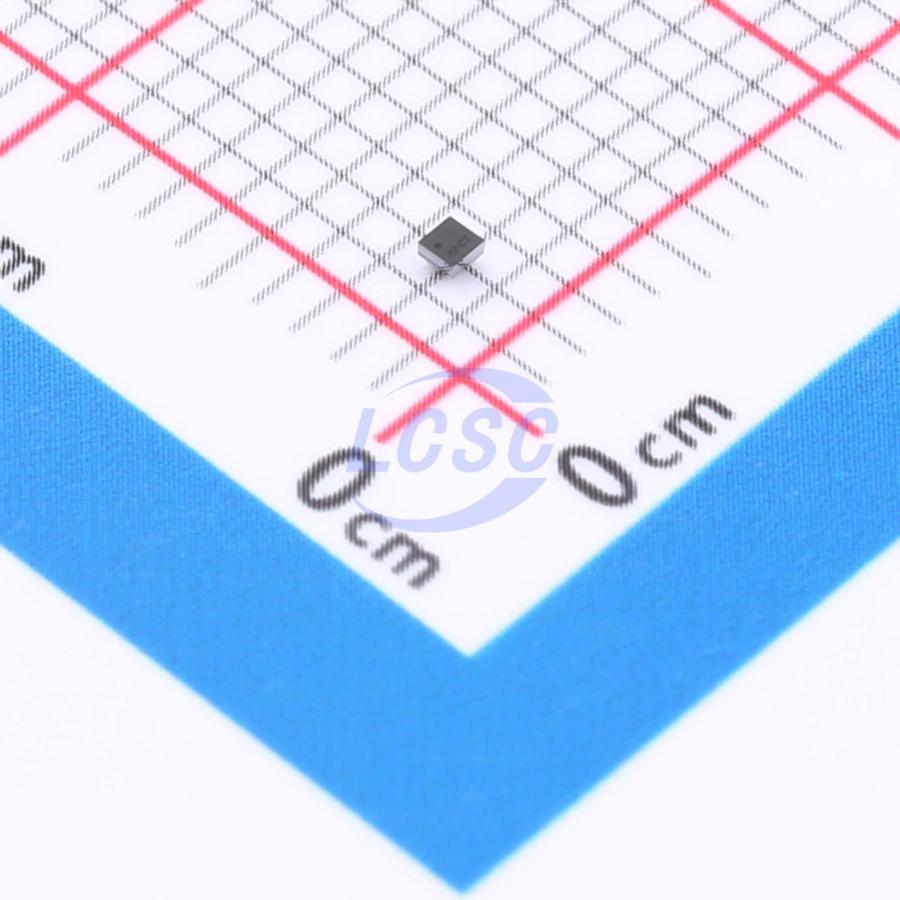

ETA7017CSE
1 Active High 2A Load Switch WLCSP0.87x0.87-4 Power Distribution Switches, Load Drivers RoHS
WLCSP0.87x0.87-4ROHS CompliantActive
Ultra-Small, Low ON Resistance Load Switch with Auto-Discharge Path
- Manufacturer
- etasolution
- Manufacturer part #
- ETA7017CSE
- Store part #
- C7465519
- Package / case
- WLCSP0.87x0.87-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,180 in stock
#C7465519
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.42 | ₹67.10 |
| 50+ | ₹10.61 | ₹530.50 |
| 150+ | ₹9.21 | ₹1,381.50 |
| 500+ | ₹8.15 | ₹4,075.00 |
| 3,000+ | ₹7.30 | ₹21,900.00 |
| 6,000+ | ₹6.89 | ₹41,340.00 |
5 × ₹13.42
₹67.10
excl. GST
₹79.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA7017CSE
₹67.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Output discharge function;Short-Circuit Protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 2A
- RDS(on)
- 128mΩ
- Operating Voltage
- 1.4V~5.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
The ETA7017/A is a small, low RDSON switch with controlled turn on. The device contains a PMOS that can operate over an input voltage range of 1.4V to 5.5V. The switch is controlled by an external logic pin, which is an active high enable. The ETA7017/A contains a 65mohm on-chip resistor for quick discharge when the switch is turned off. Quiescent current and shutdown current are all less than 1uA at V/N = 5.5V. The ETA7017/A is available in a very small WLCSP 0.87×0.87 - 4 package.
Applications
- NB-IOT module
- Wireless communication module
Key features
- Less than 1uA Quiescent and Shutdown Current
- 1.4V - 5.5V Operating Range
- Low On-Resistance, RDSON = 65mohm@VIN = 3.3V
- Up to 2A Continuous Output Current
- Output Auto Discharge
- Active high EN pin
- ESD Ratings: 4KV Human body mode
