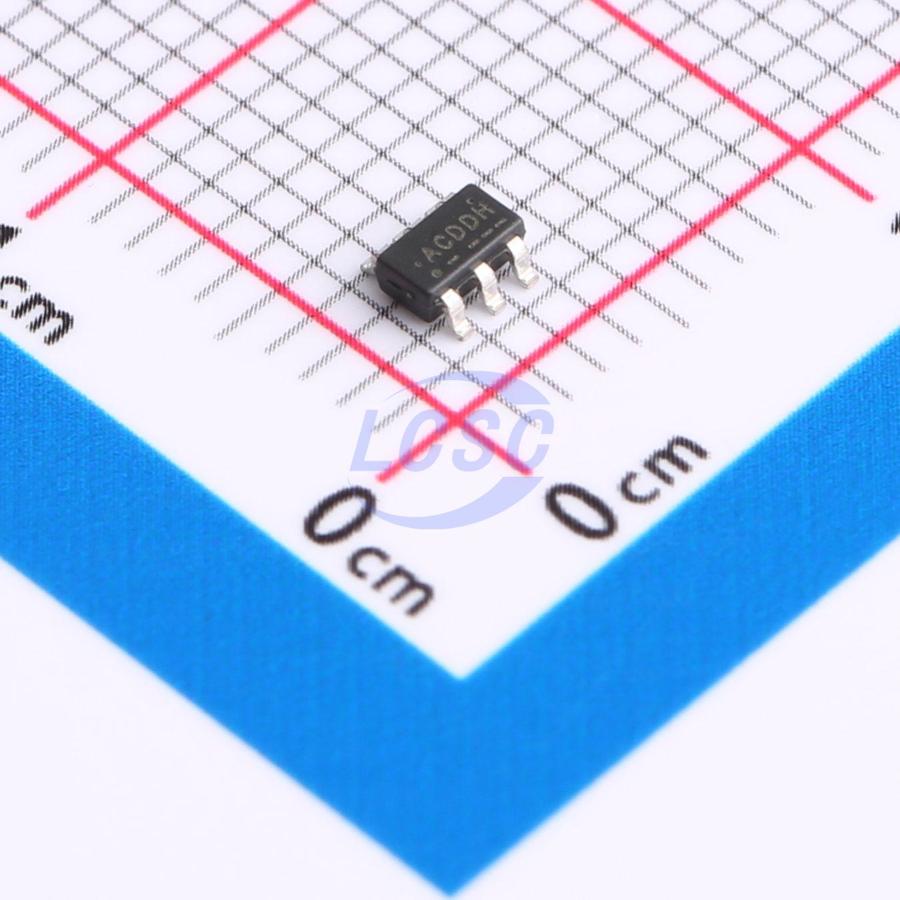

FAN6240M6X
200kHz 1 SOT-23-6 Power Supply Controllers, Monitors RoHS
Secondary-Side Synchronous Rectifier Controller for Flyback Converters
- Manufacturer
- onsemi
- Manufacturer part #
- FAN6240M6X
- Store part #
- C606017
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,869 in stock
#C606017
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.22 | ₹71.22 |
| 10+ | ₹63.68 | ₹636.80 |
| 30+ | ₹59.91 | ₹1,797.30 |
| 100+ | ₹56.13 | ₹5,613.00 |
| 500+ | ₹53.83 | ₹26,915.00 |
| 1,000+ | ₹52.79 | ₹52,790.00 |
1 × ₹71.22
₹71.22
excl. GST
₹84.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FAN6240M6X
₹71.22 for 1 + GST
Specifications
- Function
- Adaptive synchronous rectification control;Programmable dead-time;Leading edge blanking;Light load efficient mode
- Frequency - Switching
- 200kHz
- Switch Tube (Built-In/External)
- Non Built-In
- Number of Channels
- 1
- Operating Temperature
- -40℃~+125℃
- Operating Voltage
- 2.8V~20V
- Turn-Off Delay
- 20ns
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.049 g
Overview
The FAN6240M6X is a secondary-side synchronous rectifier (SR) controller for an isolated flyback converter operating in Discontinuous Conduction Mode (DCM). The adaptive dead-time control algorithm minimizes the body diode conduction of SR MOSFET while guaranteeing stable and robust SR operation against noise and disturbance caused by the circuit parasitic. 30 V rated input voltage LDO and Low VDD UnderVoltage Lockout (UVLO) voltage allow FAN6240M6X to be used for wide ranges of switched mode power supply output voltage without additional circuit.
Applications
- Battery Chargers for Smart Phones, Feature Phones, and Tablet PCs
- AC-DC Adapters for Portable Devices that Require CV/CC Control
Key features
- Works in Discontinuous Conduction Mode (DCM).
- Adaptive Turn-off Trigger Blanking Time for easier use Turn-on Trigger Blanking Time (Minimum-OFF Time) for Improved Noise Immunity Supports High-Frequency Applications up to 200 kHz
- Minimum Turn-on Delay (20 ns)
- Adaptive Turn-off Threshold Control for Minimized SR MOSFET Body Diode Conduction (Dead-Time is independent of SR MOSFET)
- Wide Voltage Range for LDO Input up to 30 V
- Small Footprint: SOT-23 6 Pin Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | APR348W6-7#C1852108DIODES · SOT-26 | DIODES | SOT-26 | 110 | ₹42.97 · 110 in stock | View |
 | SY5231ABC#C21726214Silergy · SOT-23-6 | Silergy | SOT-23-6 | 3,000 | ₹23.72 · 3,000 in stock | View |
