onsemi

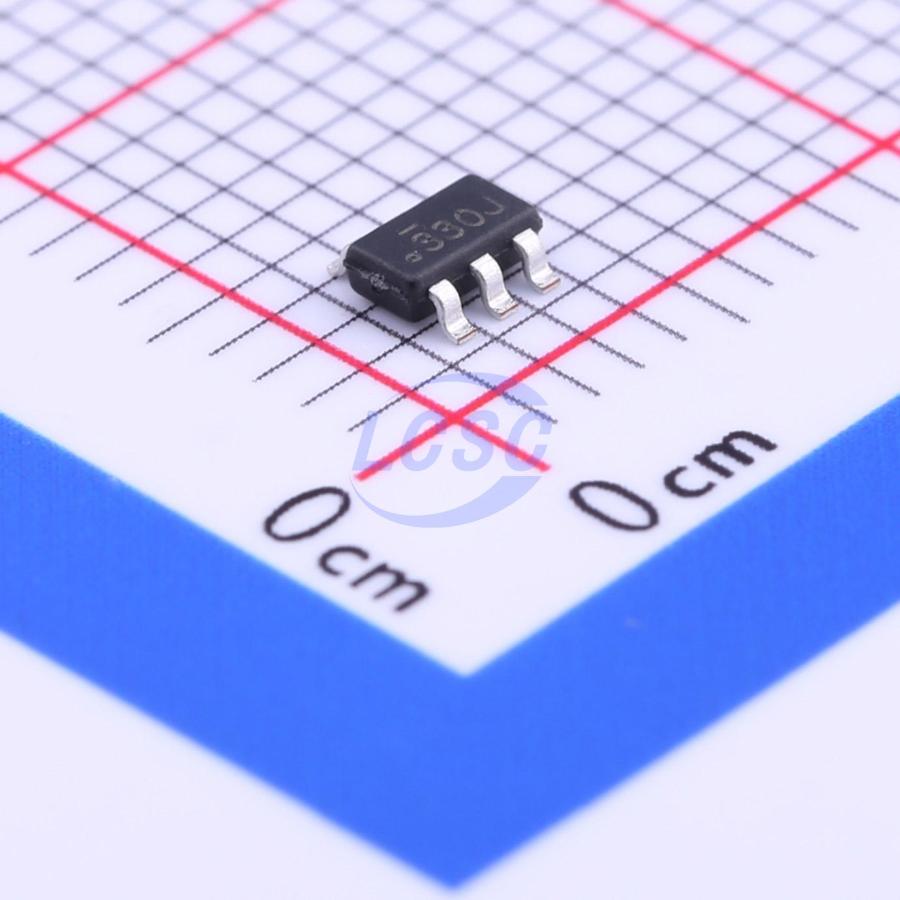

FDC6330L

Load Switch 1 Channel 2.3A TSOT-23-6

TSOT-23-6ROHS3 CompliantActive

Integrated Load Switch

Manufacturer: onsemi
Manufacturer part #: FDC6330L
Store part #: C112086
Package / case: TSOT-23-6
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

14,770 in stock

#C112086

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹46.29	₹231.45
50+	₹36.25	₹1,812.50
150+	₹31.95	₹4,792.50
500+	₹25.15	₹12,575.00
3,000+	₹22.77	₹68,310.00
6,000+	₹21.33	₹1,27,980.00

Quantity (min 5, multiples of 5)

5 × ₹46.29

₹231.45

excl. GST

₹273.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

FDC6330L

₹231.45 for 5 + GST

Specifications

Operating Temperature: -55℃~+150℃
number of channels: 1
Maximum Continuous Current: 2.3A
RDS(on): 80mΩ
Operating Voltage: 3V~20V
Type: Load Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.038 g

Overview

This device is particularly suited for compact power management in portable electronic equipment where 3V to 20V input and 2.3A output current capability are needed. This load switch integrates a small N-Channel power MOSFET (Q1) which drives a large P-Channel power MOSFET (Q2) in one tiny SuperSOTTM - 6 package.

Applications

Power management
Load actuation

Key features

VDROP = 0.2V @ VIN = 12V, I = 2.5A. RON = 0.08Ω
VDROP = 0.2V @ VIN = 5V, I = 1.6A. R(ON) = 0.125Ω
Control MOSFET (Q1) includes Zener protection for ESD ruggedness (>6kV Human Body Model).
High performance PowerTrenchTM technology for extremely low on-resistance.
SuperSOTTM - 6 package design using copper lead frame for superior thermal and electrical capabilities.
