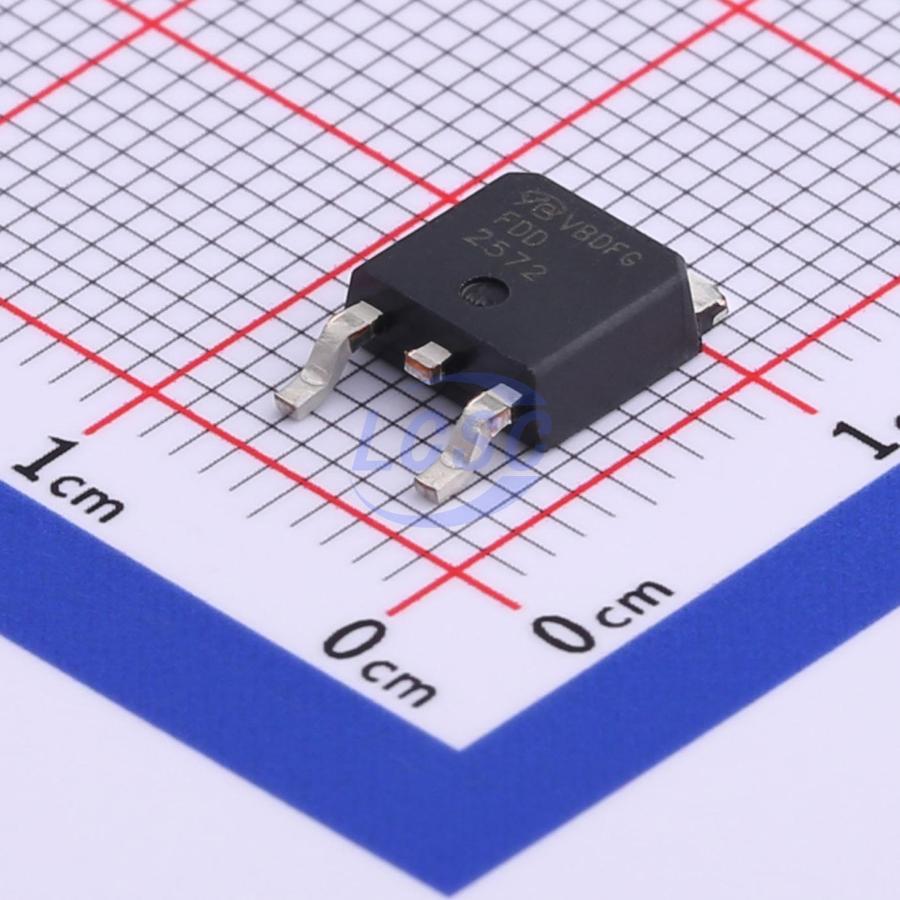

FDD2572-VB
N-Channel 150V 25.4A 5.9W Surface Mount TO-252-2
TO-252-2RoHSSold out at source
MOSFET N-CH 150V 25.4A TO-252-2
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDD2572-VB
- Store part #
- C878975
- Package / case
- TO-252-2
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C878975
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.78 | ₹99.78 |
| 10+ | ₹81.09 | ₹810.90 |
| 30+ | ₹71.64 | ₹2,149.20 |
| 100+ | ₹62.39 | ₹6,239.00 |
| 500+ | ₹56.93 | ₹28,465.00 |
| 1,000+ | ₹53.99 | ₹53,990.00 |
1 × ₹99.78
₹99.78
excl. GST
₹117.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD2572-VB
₹99.78 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 160pF
- Ciss-Input Capacitance
- 1.735nF
- Pd - Power Dissipation
- 5.9W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 25.4A
- Reverse Transfer Capacitance (Crss)
- 37pF
- RDS(on)
- 74mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28.5nC@10V;23nC@8V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.54 g
Overview
Applications
- Primary-side switch
Key features
- Meets halogen-free requirements as defined by IEC 61249-2-21
- Ultra-low Qgd for reduced switching losses
- 100% Rg tested
- 100% avalanche tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDD120AN15A0-VB#C879035VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 56 | ₹128.30 · 56 in stock | View |
 | FR18N15D-VB#C19626700VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 15 | ₹101.16 · 15 in stock | View |
 | AM20N15-250D-T1-PF-VB#C19711369VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 254 | ₹103.01 · 254 in stock | View |
 | IRFR24N15DTRPBF-VB#C20417548VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 40 | ₹99.99 · 40 in stock | View |
 | FR13N15D-VB#C20417600VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹96.00 · 20 in stock | View |
