VBsemi ElecDatasheet (PDF)

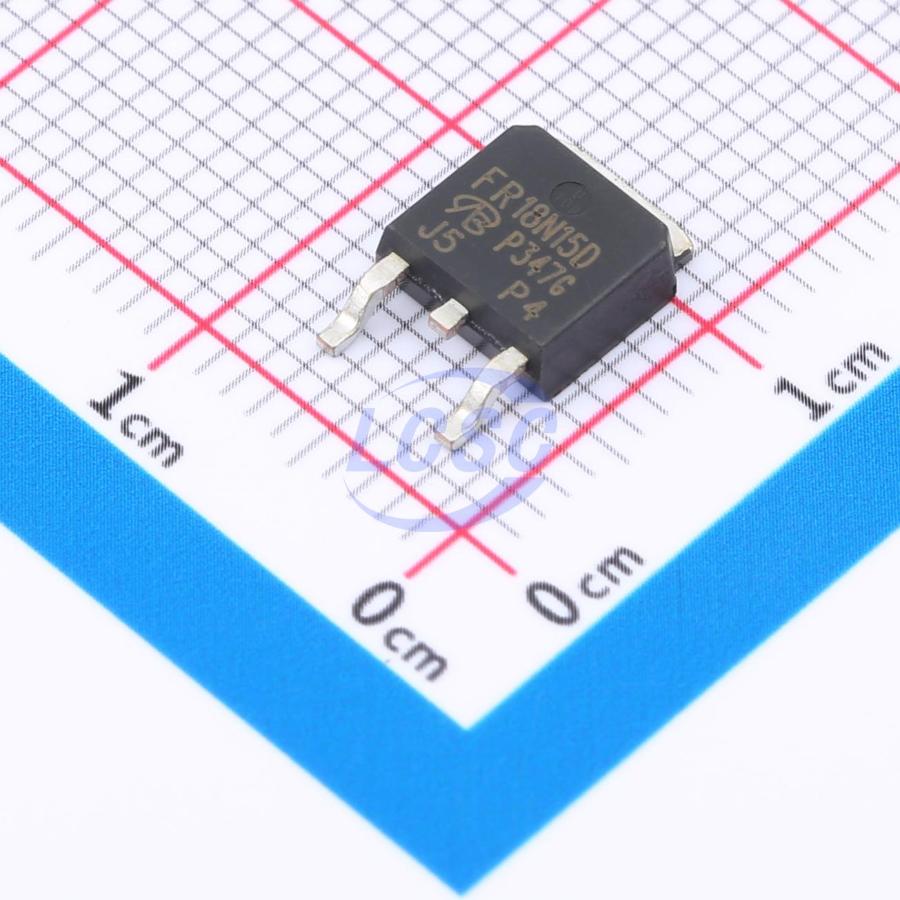

FR18N15D-VB
N-Channel 150V 25.4A 5.9W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 150V 25.4A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FR18N15D-VB
- Store part #
- C19626700
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C19626700
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.16 | ₹101.16 |
| 10+ | ₹82.25 | ₹822.50 |
| 30+ | ₹72.69 | ₹2,180.70 |
| 100+ | ₹63.33 | ₹6,333.00 |
| 500+ | ₹57.82 | ₹28,910.00 |
| 1,000+ | ₹54.84 | ₹54,840.00 |
1 × ₹101.16
₹101.16
excl. GST
₹119.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FR18N15D-VB
₹101.16 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Output Capacitance(Coss)
- 160pF
- Current - Continuous Drain(Id)
- 25.4A
- Ciss-Input Capacitance
- 1.735nF
- Pd - Power Dissipation
- 5.9W
- Reverse Transfer Capacitance (Crss)
- 37pF
- RDS(on)
- 77mΩ@8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 43nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
Applications
- Primary Side Switch
Key features
- Halogen-free According to IEC 61249-2-21
- Extremely Low Qgd for Switching Losses
- 100 % Rg Tested
- 100 % Avalanche Tested
- Compliant to RoHS Directive 2002/95/EC
- RoHS COMPLIANT HALOGEN FREE Available
