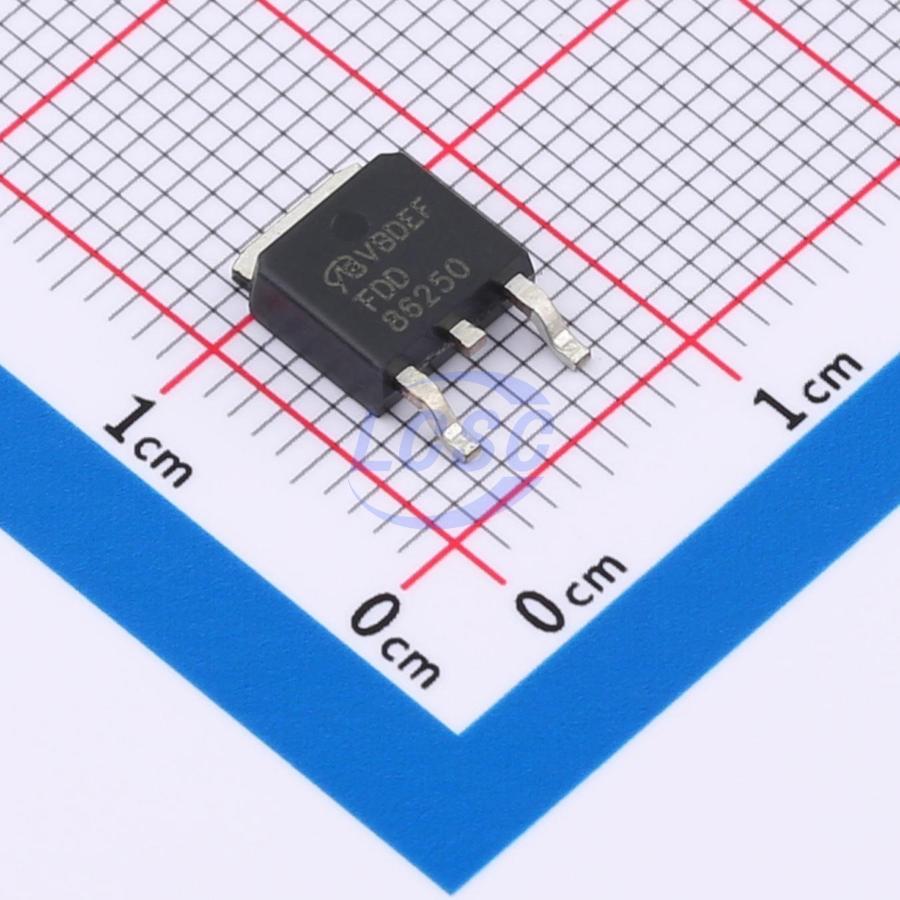

FDD86250-VB
N-Channel 100V 50A 96W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 50A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDD86250-VB
- Store part #
- C29778968
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29 in stock
#C29778968
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹253.18 | ₹253.18 |
| 10+ | ₹219.45 | ₹2,194.50 |
| 30+ | ₹198.33 | ₹5,949.90 |
| 100+ | ₹154.35 | ₹15,435.00 |
| 500+ | ₹144.55 | ₹72,275.00 |
| 1,000+ | ₹140.20 | ₹1,40,200.00 |
1 × ₹253.18
₹253.18
excl. GST
₹298.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD86250-VB
₹253.18 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 19mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- 175 °C junction temperature
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant (Directive 2002/95/EC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | K33S10N1Z-VB#C18212509VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 49 | ₹130.06 · 49 in stock | View |
 | 082N10N-VB#C18212608VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 49 | ₹130.06 · 49 in stock | View |
 | 80N10F7 TO252-VB#C19626792VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹156.31 · 50 in stock | View |
 | IPD122N10N3G-VB#C20417530VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹128.56 · 30 in stock | View |
 | 70N10F4-VB TO252#C22389637VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹123.52 · 20 in stock | View |
