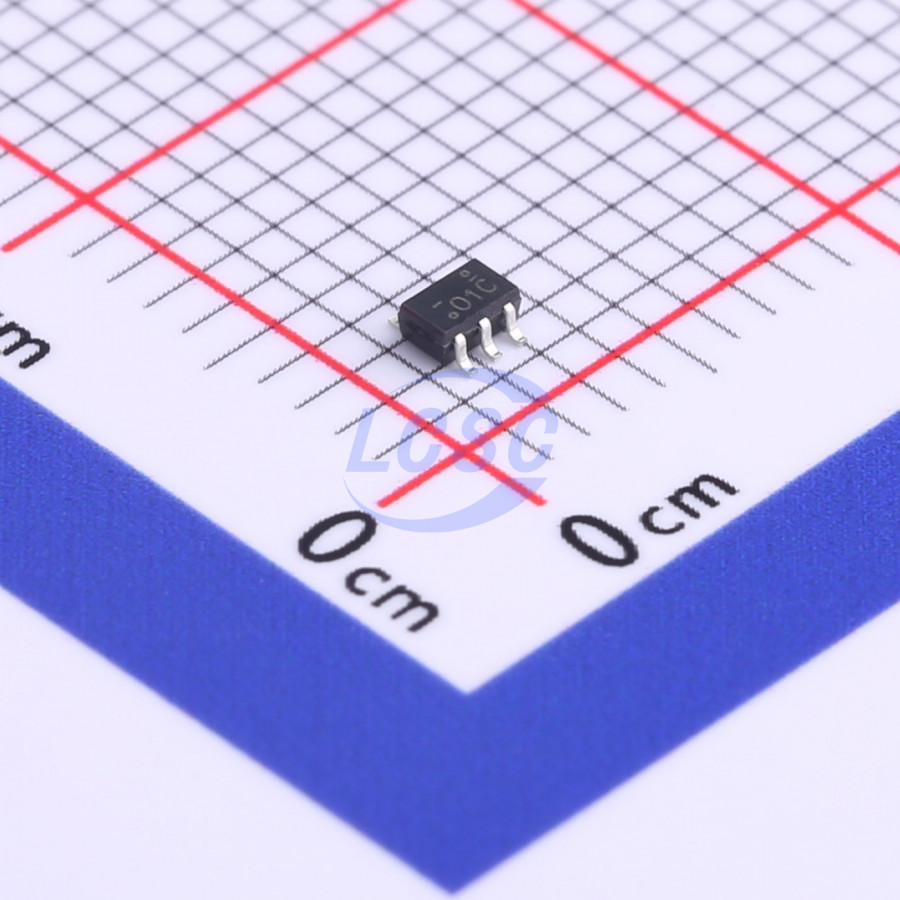

FDG6301N
N-Channel Array 25V 0.22A 0.3W Surface Mount SC-70-6
SC-70-6ROHS3 CompliantActive
MOSFET N-CH ARR 25V 0.22A SC-70-6
- Manufacturer
- onsemi
- Manufacturer part #
- FDG6301N
- Store part #
- C236893
- Package / case
- SC-70-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
390 in stock
#C236893
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.44 | ₹122.20 |
| 50+ | ₹19.47 | ₹973.50 |
| 150+ | ₹17.34 | ₹2,601.00 |
| 500+ | ₹14.69 | ₹7,345.00 |
| 3,000+ | ₹12.34 | ₹37,020.00 |
| 6,000+ | ₹11.64 | ₹69,840.00 |
5 × ₹24.44
₹122.20
excl. GST
₹144.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDG6301N
₹122.20 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 6pF
- Ciss-Input Capacitance
- 9.5pF
- Pd - Power Dissipation
- 300mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 25V
- Current - Continuous Drain(Id)
- 220mA
- Reverse Transfer Capacitance (Crss)
- 1.3pF
- RDS(on)
- 4Ω@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 400pC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
These dual N−Channel logic level enhancement mode field effect transistors are produced using ON Semiconductor’s proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on−state resistance. This device has been designed especially for low voltage applications as a replacement for bipolar digital transistors and small signal MOSFETs.
Key features
- 25 V, 0.22 A Continuous, 0.65 A Peak
- RDS(ON)=4 Ω @ VGS=4.5 V
- RDS(ON)=5 Ω @ VGS=2.7 V
- Very Low Level Gate Drive Requirements Allowing Direct Operation in 3 V Circuits (VGS(th)<1.5 V)
- Gate−Source Zener for ESD Ruggedness > 6 kV Human Body Model
- Compact Industry Standard SC70−6 Surface Mount Package
- These Devices are Pb −Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN63D8LDW-13#C5366073DIODES · SOT-363 | DIODES | SOT-363 | On request | ₹7.16 · 0 in stock | View |
 | BSS138DW#C5362112CBI · SOT-363 | CBI | SOT-363 | 550 | ₹5.90 · 550 in stock | View |
 | FDG6303N#C512895onsemi · SC-70-6 | onsemi | SC-70-6 | 2,320 | ₹36.96 · 2,320 in stock | View |
| UM6K1NA-TP#C17475669MCC · SOT-363 | MCC | SOT-363 | 2,800 | ₹5.42 · 2,800 in stock | View | |
 | BSS138DW#C22391927YFW · SOT-363 | YFW | SOT-363 | 880 | ₹6.07 · 880 in stock | View |
