onsemiDatasheet (PDF)

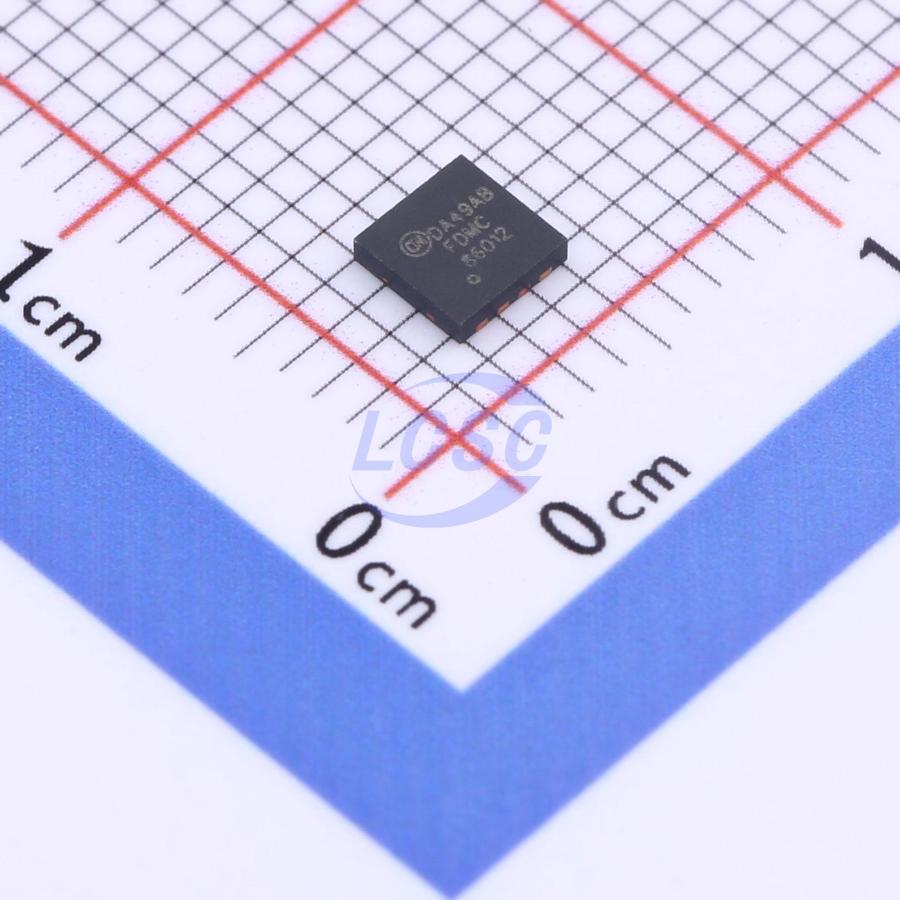

FDMC86012
30V 88A 54W Surface Mount PQFN-8
PQFN-8ROHS3 CompliantActive
MOSFET 30V 88A PQFN-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDMC86012
- Store part #
- C890962
- Package / case
- PQFN-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C890962
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹379.44 | ₹379.44 |
| 10+ | ₹371.17 | ₹3,711.70 |
| 30+ | ₹365.72 | ₹10,971.60 |
| 100+ | ₹360.05 | ₹36,005.00 |
1 × ₹379.44
₹379.44
excl. GST
₹447.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMC86012
₹379.44 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.23nF
- Ciss-Input Capacitance
- 5.075nF
- Pd - Power Dissipation
- 54W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 88A
- Reverse Transfer Capacitance (Crss)
- 260pF
- RDS(on)
- 2.7mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 27nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
This device has been designed specifically to improve the efficiency of DC/DC converters. Using new techniques in MOSFET construction, the various components of gate charge and capacitance have been optimized to reduce switching losses. Low gate resistance and very low Miller charge enable excellent performance with both adaptive and fixed dead time gate drive circuits. Very low rDS(on) has been maintained to provide a sub logic-level device.
Applications
- 3.3 V input synchronous buck switch
- Synchronous rectifier
Key features
- Max rDS(on)=2.7 mΩ at VGS=4.5 V, ID=23 A
- Max rDS(on)=4.7 mΩ at VGS=2.5 V, ID=17.5 A
- High performance technology for extremely low rDS(on)
- Termination is Lead-free
- 100% UIL Tested
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMFS7D5N15MC#C5208917onsemi · PQFN-8 | onsemi | PQFN-8 | 50 | ₹369.67 · 50 in stock | View |
 | NTMFD001N03P9#C5205613onsemi · PQFN-8 | onsemi | PQFN-8 | 50 | ₹265.46 · 50 in stock | View |
| FDMS003N08C#C463247onsemi · PQFN-8 | onsemi | PQFN-8 | On request | ₹657.93 · 0 in stock | View | |
| FDMC8360L#C890958onsemi · PQFN-8 | onsemi | PQFN-8 | On request | ₹608.28 · 0 in stock | View | |
 | NTMFS10N3D2C#C606046onsemi · PQFN-8 | onsemi | PQFN-8 | On request | ₹1,008.06 · 0 in stock | View |
