onsemiDatasheet (PDF)

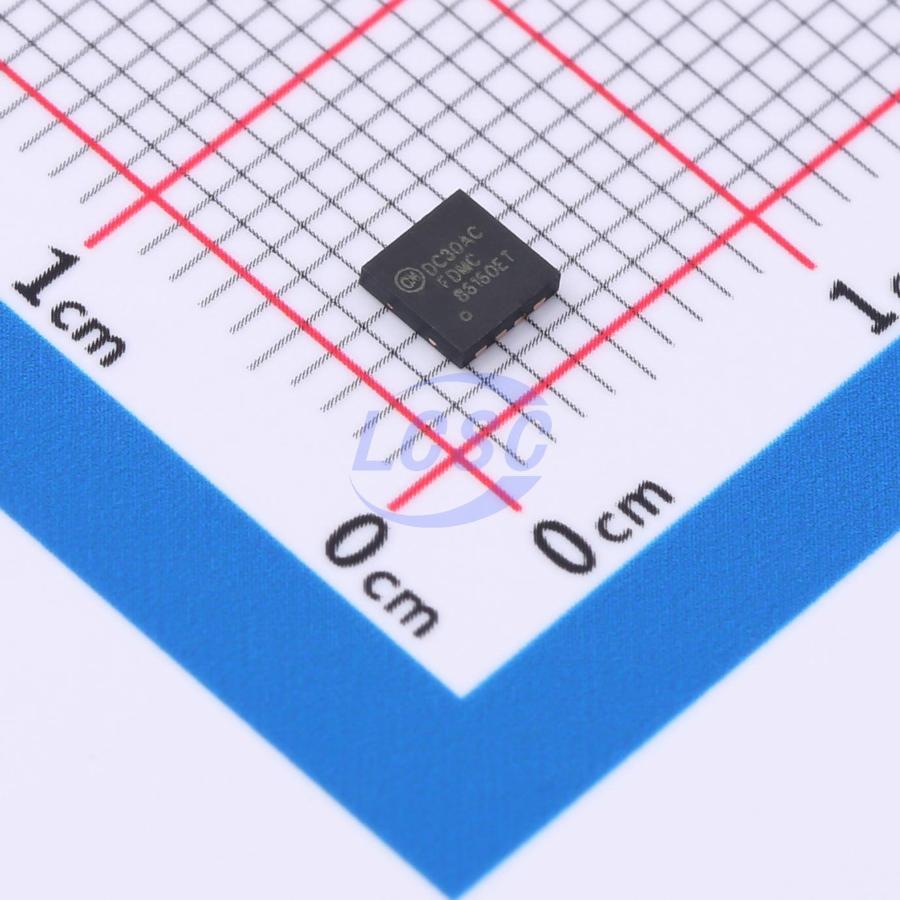

FDMC86160ET100
N-Channel 100V 43A 65W Surface Mount PQFN-8
PQFN-8ROHS3 CompliantActive
MOSFET N-CH 100V 43A PQFN-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDMC86160ET100
- Store part #
- C890964
- Package / case
- PQFN-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C890964
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹436.85 | ₹436.85 |
| 10+ | ₹429.67 | ₹4,296.70 |
| 30+ | ₹424.89 | ₹12,746.70 |
| 100+ | ₹420.11 | ₹42,011.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Specifications
- Output Capacitance(Coss)
- 320pF
- Ciss-Input Capacitance
- 1.29nF
- Pd - Power Dissipation
- 65W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 43A
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 14mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.9V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.07 g
Overview
This N-channel MOSFET is manufactured using an advanced PowerTrench process with shielded gate technology. The process is optimized for on-resistance. This device is ideal for applications requiring ultra-low RDS(on) in a small footprint, such as high-performance VRM, POL, and ORing functions.
Applications
- Bridge topology
- Synchronous rectifier
Key features
- Extended TJ rating: 175°C
- Shield gate MOSFET technology
- Max rDS(on) = 14 mΩ (VGS = 10 V, ID = 9 A)
- Max rDS(on) = 23 mΩ (VGS = 6 V, ID = 7 A)
- High-performance trench technology for ultra-low rDS(on)
- Lead-free termination, RoHS compliant
