onsemiDatasheet (PDF)

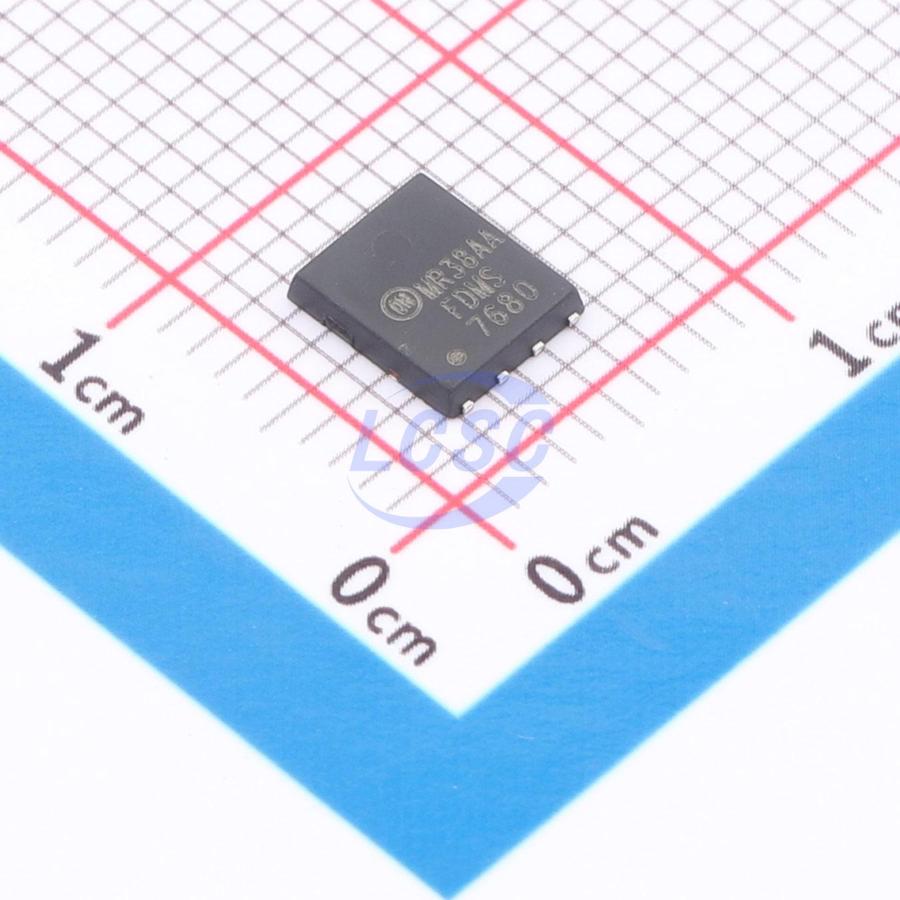

FDMS7680
30V 53A 33W 6.9mΩ@10V 1 N-channel N-Channel PQFN-8(5x6) Single FETs, MOSFETs RoHS
PQFN-8(5x6)ROHS3 CompliantActive
N-Channel, Current:14A, Voltage:30V
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS7680
- Store part #
- C241802
- Package / case
- PQFN-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
132 in stock
#C241802
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.93 | ₹109.93 |
| 10+ | ₹107.33 | ₹1,073.30 |
| 30+ | ₹105.59 | ₹3,167.70 |
| 100+ | ₹103.86 | ₹10,386.00 |
1 × ₹109.93
₹109.93
excl. GST
₹129.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS7680
₹109.93 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 575pF
- Current - Continuous Drain(Id)
- 53A
- Ciss-Input Capacitance
- 1.85nF
- Pd - Power Dissipation
- 33W
- Reverse Transfer Capacitance (Crss)
- 85pF
- RDS(on)
- 6.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.164 g
Overview
Key features
- Maximum rDS(on) = 6.9 mΩ at VGS = 10 V, ID = 14 A
- Maximum rDS(on) = 11 mΩ at VGS = 4.5 V, ID = 11 A
- Advanced package-silicon combination for low RDS(ON) and high efficiency
- Next-generation enhanced body diode technology with soft-recovery characteristics
- MSL1 robust package design
- 100% UII tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDMS86101DC#C605042onsemi · PQFN-8(5x6) | onsemi | PQFN-8(5x6) | 3,777 | ₹78.44 · 3,777 in stock | View |
 | FDMS8333L#C330165onsemi · PQFN-8(5x6) | onsemi | PQFN-8(5x6) | 2,772 | ₹57.46 · 2,772 in stock | View |
 | FDMS7650#C255598onsemi · PQFN-8(5x6) | onsemi | PQFN-8(5x6) | 1,048 | ₹302.36 · 1,048 in stock | View |
 | IRFH7787TRPBF#C537897Infineon · PQFN-8(5x6) | Infineon | PQFN-8(5x6) | 10 | ₹381.50 · 10 in stock | View |
 | SI7852DP-VB#C19190288VBsemi Elec · QFN-8(5x6) | VBsemi Elec | QFN-8(5x6) | 2 | ₹234.90 · 2 in stock | View |
