MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

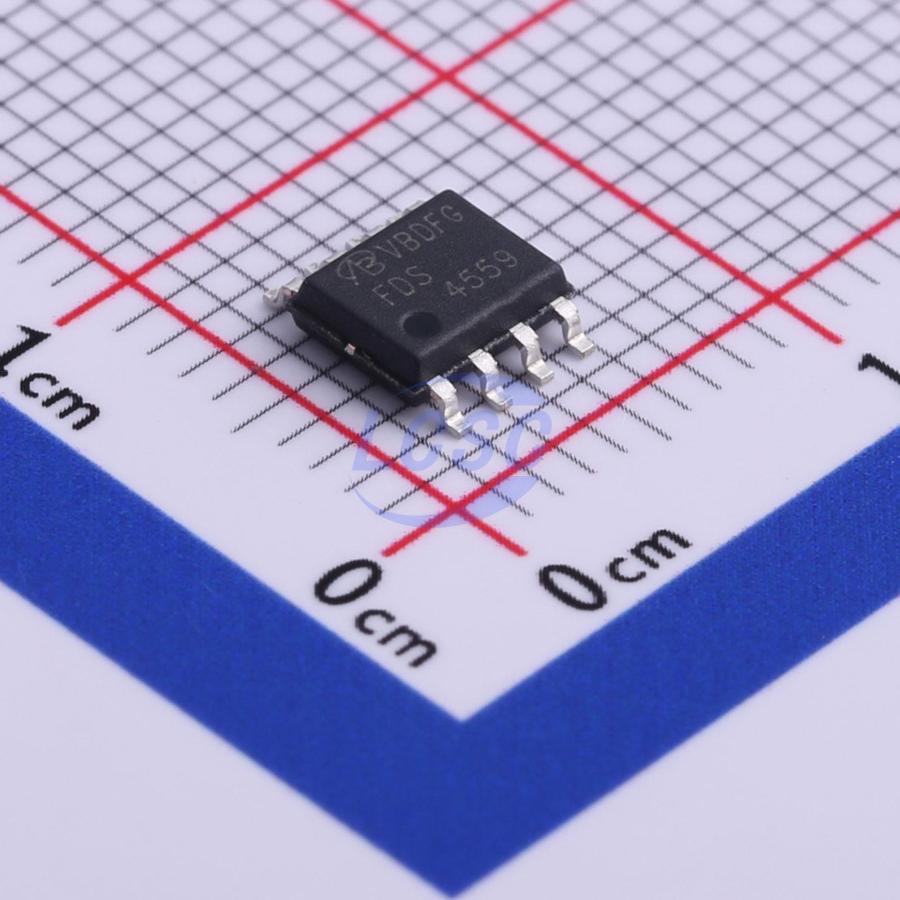

FDS4559-NL-VB
N-Channel+P-Channel Array 60V 5.3A 4.9A 3.1W 3.4W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH+P-CH ARR 60V 5.3A 4.9A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDS4559-NL-VB
- Store part #
- C558125
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41 in stock
#C558125
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.56 | ₹82.56 |
| 10+ | ₹66.39 | ₹663.90 |
| 30+ | ₹58.40 | ₹1,752.00 |
| 100+ | ₹50.42 | ₹5,042.00 |
| 500+ | ₹45.59 | ₹22,795.00 |
| 1,000+ | ₹43.28 | ₹43,280.00 |
1 × ₹82.56
₹82.56
excl. GST
₹97.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FDS4559-NL-VB
₹82.56 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 75pF;95pF
- Ciss-Input Capacitance
- 665pF;650pF
- Pd - Power Dissipation
- 3.1W;3.4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 5.3A;4.9A
- Reverse Transfer Capacitance (Crss)
- 40pF;60pF
- RDS(on)
- 26mΩ@10V;55mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 6nC@10V;8nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.313 g
Overview
Applications
- Cold Cathode Fluorescent Lamp (CCFL) inverter
- N-channel MOSFET
- P-channel MOSFET
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSO612CVG-VB#C19632049VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 38 | ₹85.92 · 38 in stock | View |
 | W356-VB#C20417694VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹82.56 · 50 in stock | View |
 | MCQ4559A-TP-VB#C51822553VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹93.66 · 10 in stock | View |
 | SH8M24TB-VB#C558237VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 60 | ₹85.92 · 60 in stock | View |
 | SI4559ADY-T1-E3-VB#C5878842VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 458 | ₹86.03 · 458 in stock | View |
