onsemiDatasheet (PDF)

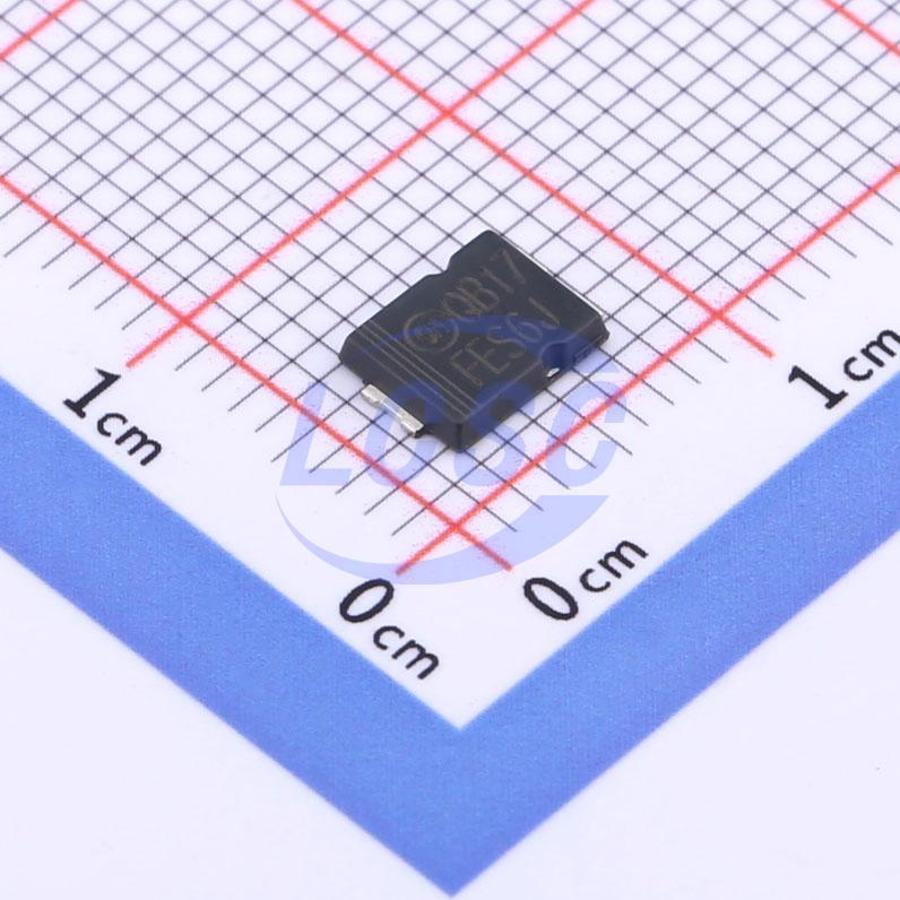

FES6J
Standalone 600V 2.2V@6A 6A TO-277-3 Single Diodes RoHS
TO-277-3ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- FES6J
- Store part #
- C895394
- Package / case
- TO-277-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C895394
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.58 | ₹93.58 |
| 10+ | ₹91.62 | ₹916.20 |
| 30+ | ₹90.31 | ₹2,709.30 |
| 100+ | ₹89.00 | ₹8,900.00 |
1 × ₹93.58
₹93.58
excl. GST
₹110.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FES6J
₹93.58 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+175℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 2.2V@6A
- Reverse Leakage Current (Ir)
- 2uA@600V
- Non-Repetitive Peak Forward Surge Current
- 80A
- Current - Rectified
- 6A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
Key features
- Very Low Profile: Typical Height of 1.1 mm
- Ultrafast Recovery Time
- Low Forward Voltage Drop
- Low Thermal Resistance
- Very Stable Operation at Industrial Temperature, 150℃
- RoHS Compliant
- Green Molding Compound as per IEC61249 Standard
- Lead Free in Compliance with EU RoHS 2011/65/EU Directive
- With DAP Option Only
- NRV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NRVFES6J#C893770onsemi · TO-277-3L | onsemi | TO-277-3L | 5 | ₹102.96 · 5 in stock | View |
| FES10J#C895392onsemi · TO-277-3L | onsemi | TO-277-3L | On request | ₹206.41 · 0 in stock | View | |
 | FS8J#C895398onsemi · TO-277-3L | onsemi | TO-277-3L | On request | ₹198.19 · 0 in stock | View |
| FS8K#C895399onsemi · TO-277-3L | onsemi | TO-277-3L | On request | ₹69.09 · 0 in stock | View | |
