XIN FEI HONGDatasheet (PDF)

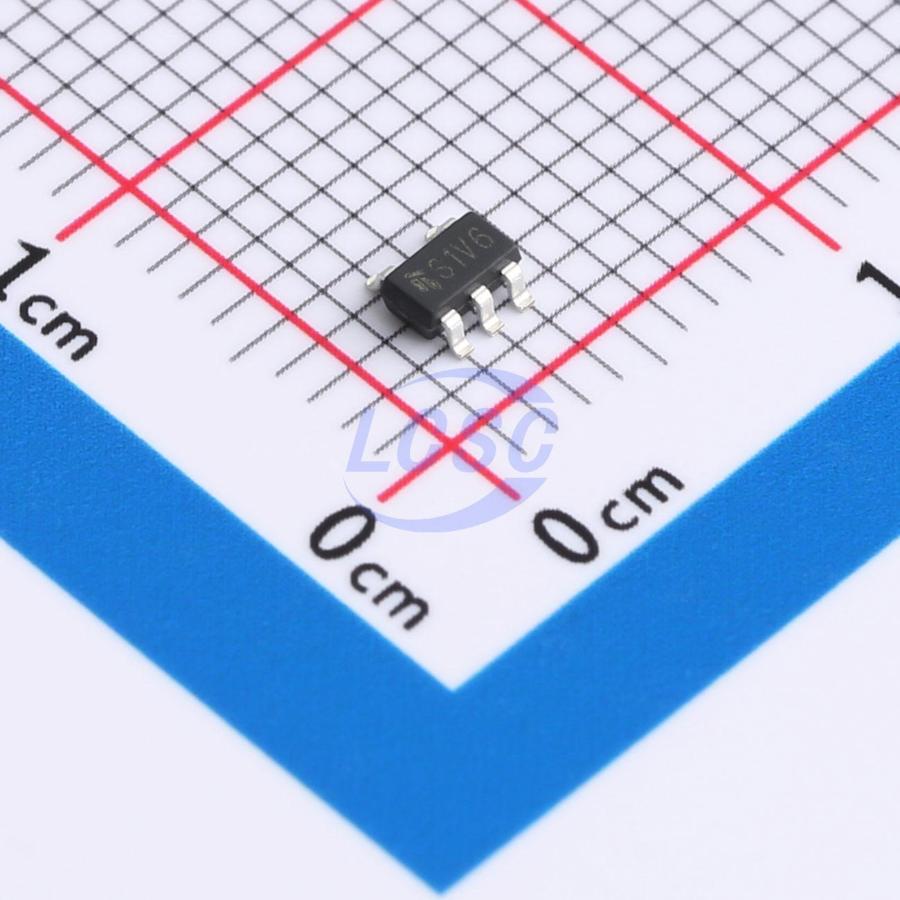

FH6211N28
2.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantSold out at source
Very High PSRR Low Noise 500mA RF LDO
- Manufacturer
- XIN FEI HONG
- Manufacturer part #
- FH6211N28
- Store part #
- C22448117
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,060 in stock
#C22448117
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.40 | ₹68.00 |
| 200+ | ₹2.66 | ₹532.00 |
| 600+ | ₹2.26 | ₹1,356.00 |
| 3,000+ | ₹2.01 | ₹6,030.00 |
| 9,000+ | ₹1.80 | ₹16,200.00 |
| 21,000+ | ₹1.68 | ₹35,280.00 |
20 × ₹3.40
₹68.00
excl. GST
₹80.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FH6211N28
₹68.00 for 20 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control;Operating status indication;Input under-voltage protection;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.048 g
Overview
The FH6211 family of low-dropout (LDO), low-power linear regulators offers very high power supply rejection ratio (PSRR ) while maintaining very low 40μA ground current, suitable for RF applications. The family uses an advanced CMOS process and a PMOSFET pass device to achieve fast start-up, very low noise, excellent transient response, and excellent PSRR performance. The FH6211 is stable with a 1.0μF ceramic output capacitor, and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 2% over all load, line, process, and temperature variations. It is fully specified from TJ= -40°C to +150°C and is offered in a small DFN4 package, which is ideal for small form factor portable equipment such as wireless handsets and PDAs.
Applications
- Digital Still Cameras
- Portable instruments
- MP3/MP4 Player
- Smart Phones and Cellular Phones
Key features
- Wide Input Voltage Range: 2.0V to 6.0V
- Up to 500mA Load Current
- Output Voltage Options Available on Request
- Very Low IQ: 40μA
- Very High PSRR: 75db at 1KHz
- Ultra Low Noise: 45uVrms at 1.2V output
- Ultra-Fast Start-Up Time: 25µs
- Excellent Load/Line Transient Response
- Line Regulation: 0.03% typical
- Standard Fixed Output Voltage Options: 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, and 3.3V, etc
- Ultra Low Dropout: 250mV at 300mA Load@VOUT = 2.8V
