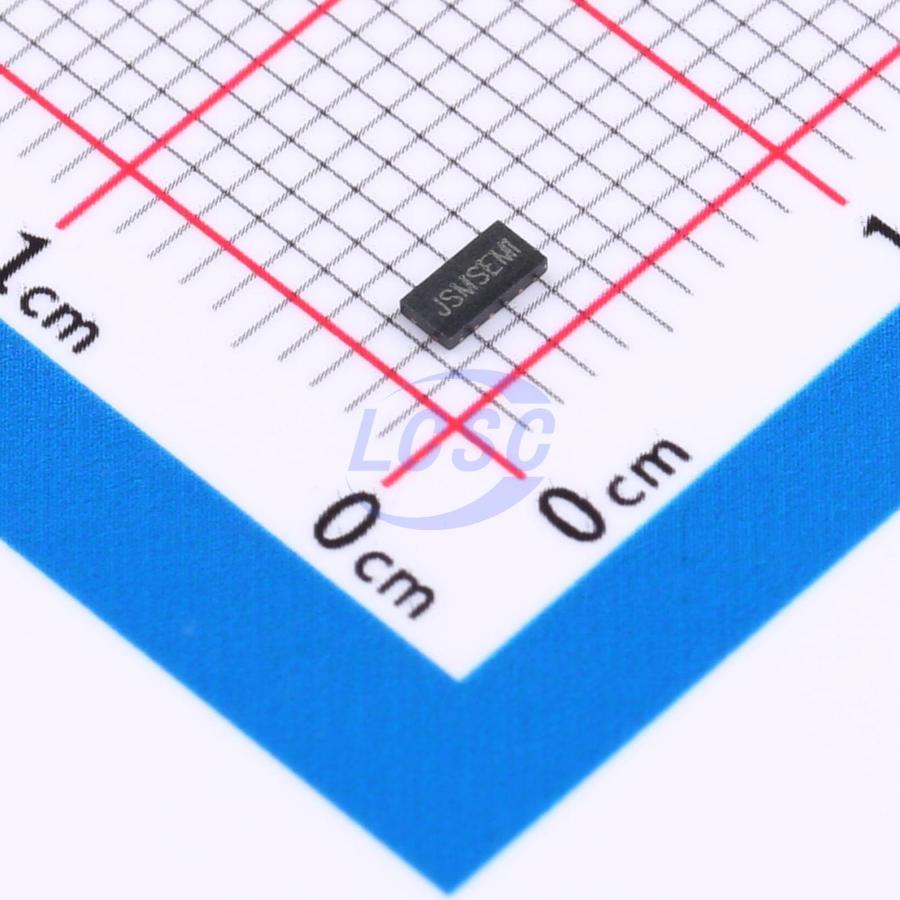

JSMSEMI

FL1002-CTNA-A

DFN-12(1.5x3) Power Management - Specialized RoHS

DFN-12(1.5x3)ROHS CompliantActive

Charge pump controller with three adjustable modes

Manufacturer: JSMSEMI
Manufacturer part #: FL1002-CTNA-A
Store part #: C49013394
Package / case: DFN-12(1.5x3)
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,657 in stock

#C49013394

Stock & price checked 41 h ago

Quantity	Unit price	Pack price
1+	₹66.07	₹66.07
10+	₹51.73	₹517.30
30+	₹45.64	₹1,369.20
100+	₹38.04	₹3,804.00
500+	₹34.56	₹17,280.00
1,000+	₹32.60	₹32,600.00

Quantity (min 1)

1 × ₹66.07

₹66.07

excl. GST

₹77.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

FL1002-CTNA-A

₹66.07 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Low ripple / low noise architecture
Function: boost converter;Inverted
Operating Temperature: -40℃~+85℃
Output Voltage: 4.5V~6V;-6V~-4.5V
Voltage - Supply: 2.3V~3.8V
Energy Efficiency: 80%

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.025 g

Overview

FL1002 is a low-noise charge pump DC/DC controller capable of simultaneously generating positive and negative voltages. Its input voltage range is 2.3~3.8V, with output voltage ranges of +4.5~6V and -4.5~-6V. The device features a simple peripheral circuit, making it ideal for compact battery-powered applications. The output voltage is adjustable via operating mode selection, supporting ×1.5, ×2, and ×3 modes, where the output voltage is a multiple of the supply voltage. FL1002 is available in a space-saving DFN-12 package and operates over a temperature range of -40℃ to 125℃.
